Product details
Product overview

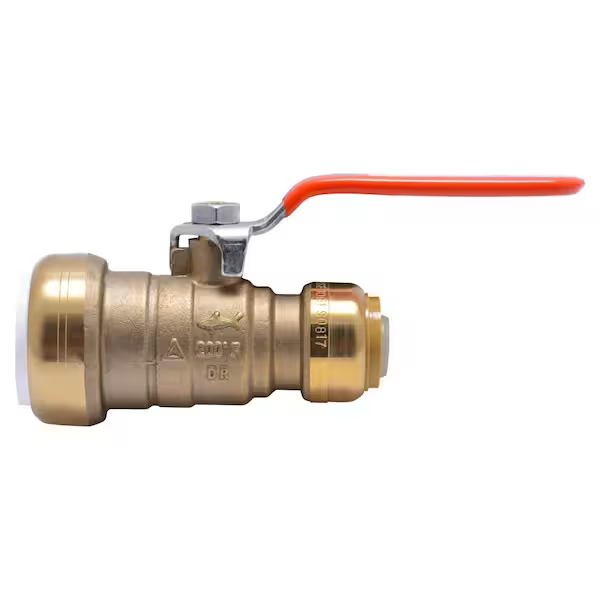

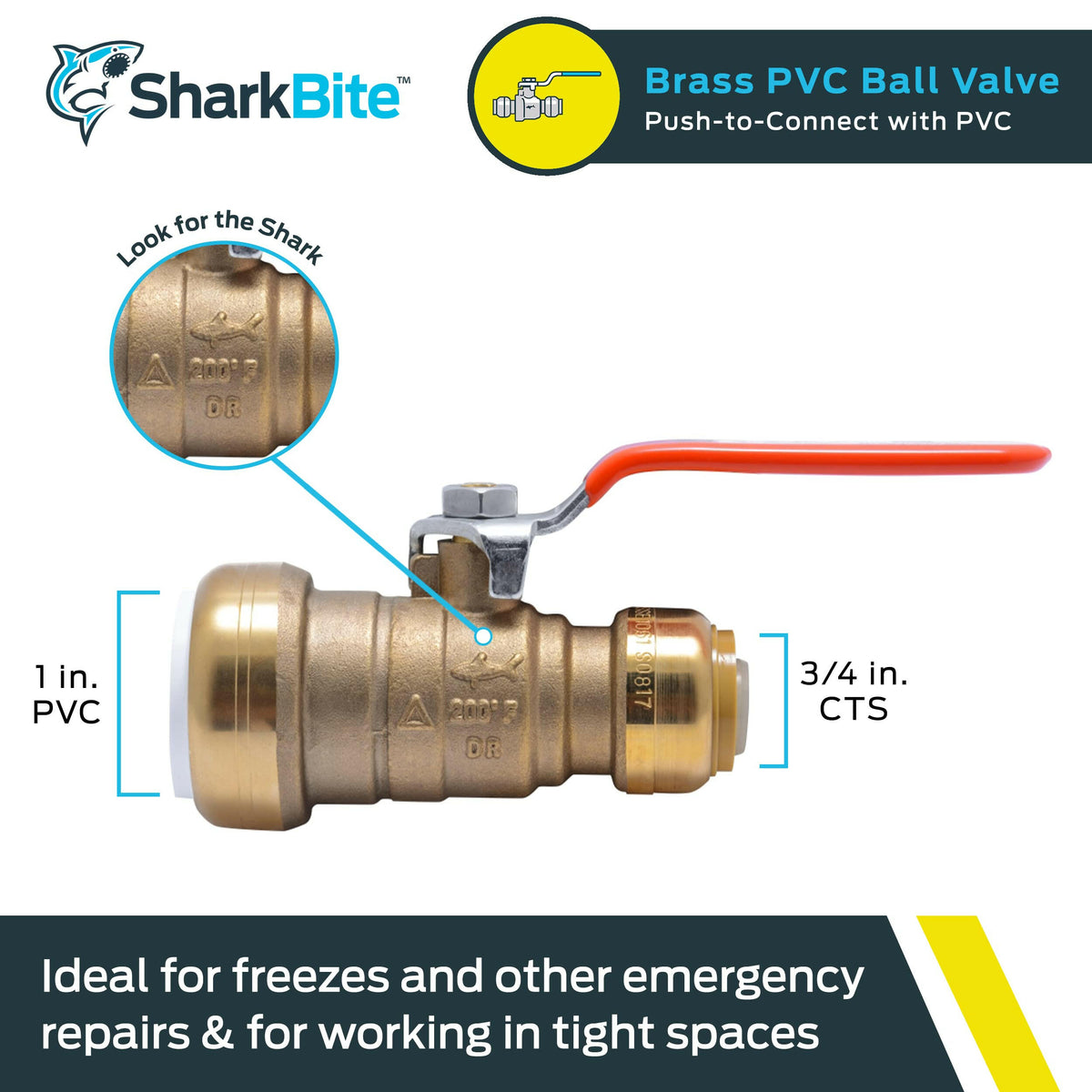

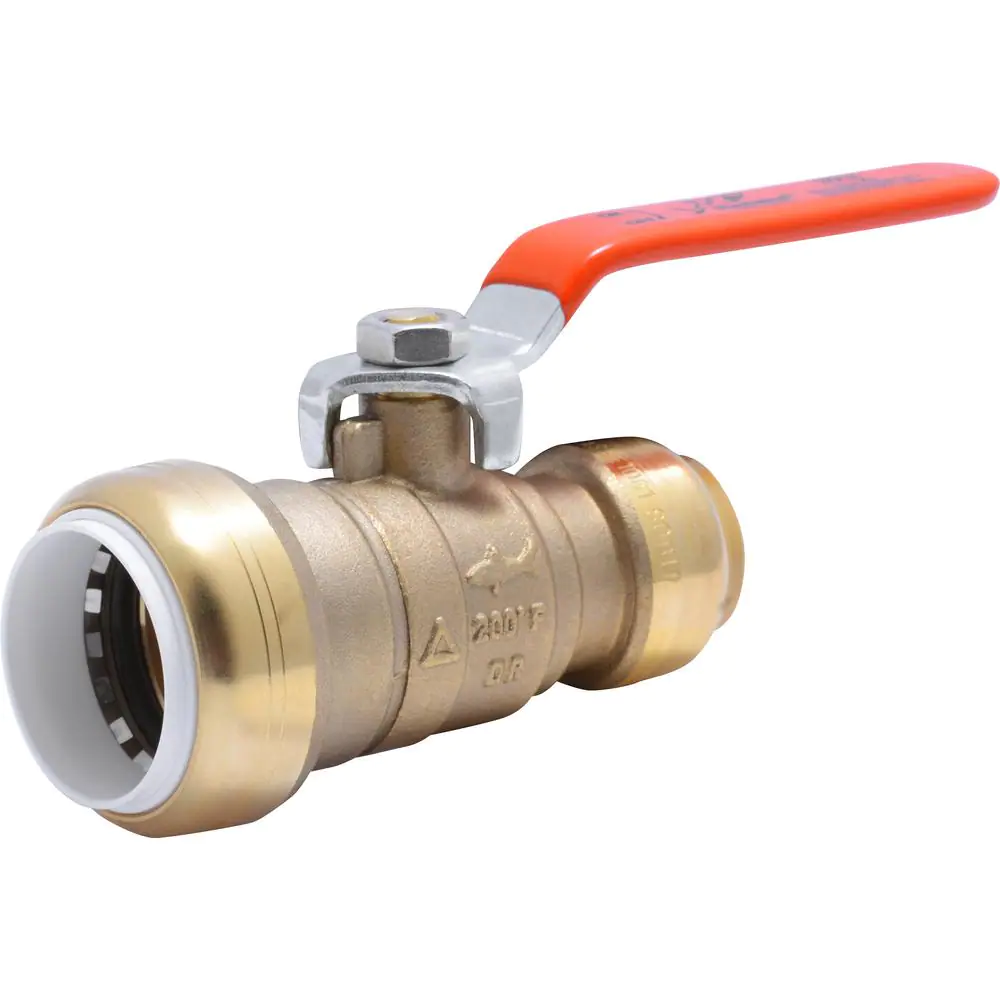

SharkBite Push-to-connect ball valve is the easiest way to install a new or replacement shut-off ball valve. The single lever quarter-turn control allows for easy operation and the valve is perfect for potable water and hydronic applications where a shut-off is needed. No soldering, clamps, unions, glue, or special tools are required. Simply insert the pipe and the teeth bite down and grip tight, while a specially formulated O-ring compresses to create a watertight seal. Changes can easily be made by rotating the valve after installation. Removing the valve is just as fast using a disconnect tool so the valve can be easily changed or reused. Designed with stainless steel gripping teeth for a secure connection, a chlorine-resistant O-ring for a long-lasting seal, and backed by a 25-year warranty.
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Push-to-connect fittings are ideal for installation in tight spaces
- Rated to 200 degrees Fahrenheit and 200 PSI
- Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
- Can be installed on wet or dry lines and pressure tested immediately, no waiting on soldered joints to cool or solvents to dry
- Low-lead DZR corrosion-resistant brass body
- Code approved, IAPMO listed, for details see Specifications
- 25-Year warranty when used with PEX, copper, CPVC & PE-RT pipe
- 5-Year warranty when used with SDR-9 HDPE pipe
- Meets all UPC, IPC and cUPC requirements
- Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
- Rated to 200°F and 200 psi
- 1 in. Pipe Insertion Depth = 1-5/16 in.
Dimensions
| Inlet Diameter (In.) | 1 | Outlet Diameter (In.) | 1 |
|---|---|---|---|
| Product Depth (in.) | 1.83 in | Product Height (in.) | 2.17 in |
| Product Length (in.) | 3.72 in | Product Width (in.) | 1.83 in |
| Valve Inlet Diameter (in.) | 1 | Valve Outlet Diameter (in.) | 1 |
Details
| Application | Hydroponics, Potable Water | Compatible Pipe Material | Multi-Purpose |
|---|---|---|---|
| Connection | PTC | Features | Lead Free |
| Handle Style | Lever | Indoor/Outdoor | Indoor, Outdoor |
| Material | Brass | Maximum Pressure (PSI) | 200 |
| Maximum Working Temperature (F) | 200 | Pack Size | 1 |
| Product Weight (lb.) | 0.725 lb | Returnable | 30-Day |
| Valve Type | Ball | Valve Use | Water |
Technical information
Specifications
- Brand / manufacturer
- SharkBite
- SKU
- Item # 12231626 | Model # 25551LF
- Product category
- Push-Fit Fittings & Supports
- Item weight
- 1.0 lb
- Product location
- Aisle: 3 | Bay: 2
