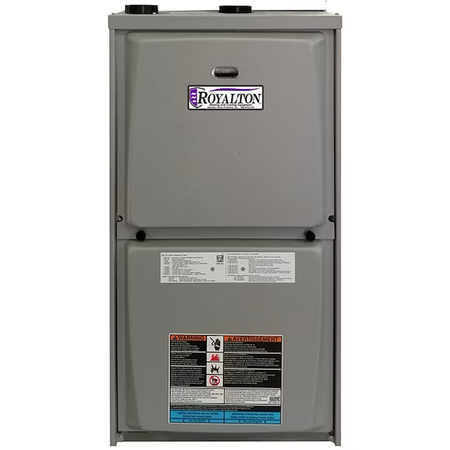

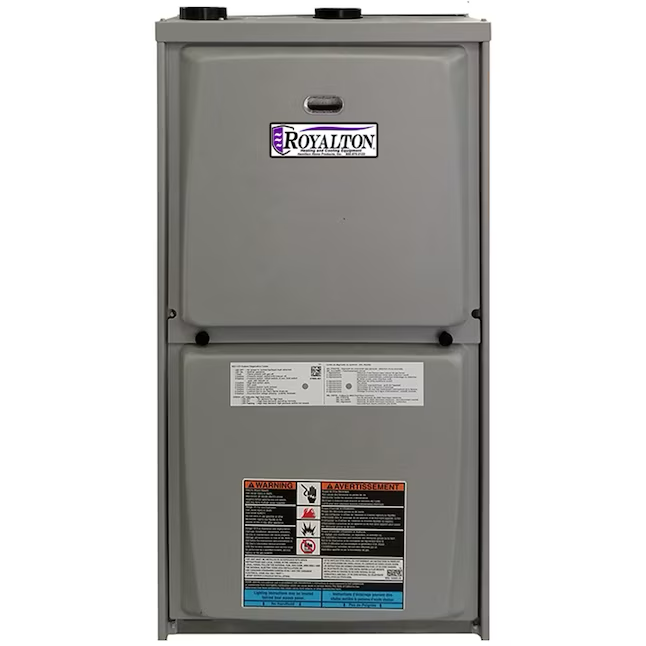

ROYALTON 110,000 BTU 96% Efficient 2-Stage Variable Speed Upflow and Horizontal Gas Furnace

Discontinued
SKU: Item # 12231402 | Model # 96G2UH110CV20
Product Discontinued

This product has been discontinued and is no longer available for purchase. Any linked replacement products are shown below. Contact our team if you need help finding a suitable alternative.

Ways to get this item

Shipping
Currently unavailable
Pickup
Currently unavailable

Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.

Product at a glance

Full specifications
Model # 96G2UH110CV20

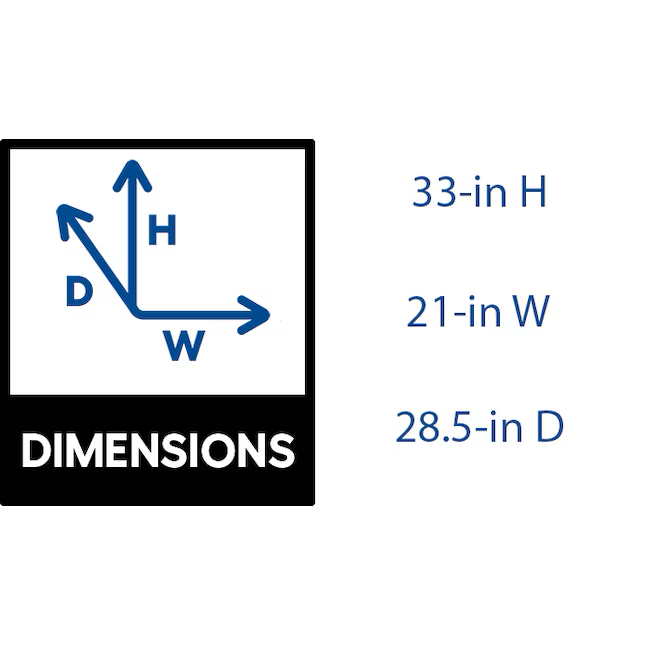

Dimensions
Depth (Inches)
28.5
Width (Inches)
21
Height (Inches)
33
Color / finish
Gray
Keep your supplies organized.

Create a branded label with a QR code to scan and reorder this exact option.
View comparison View comparison Choose up to 4 products to compare.

Product details

Product overview

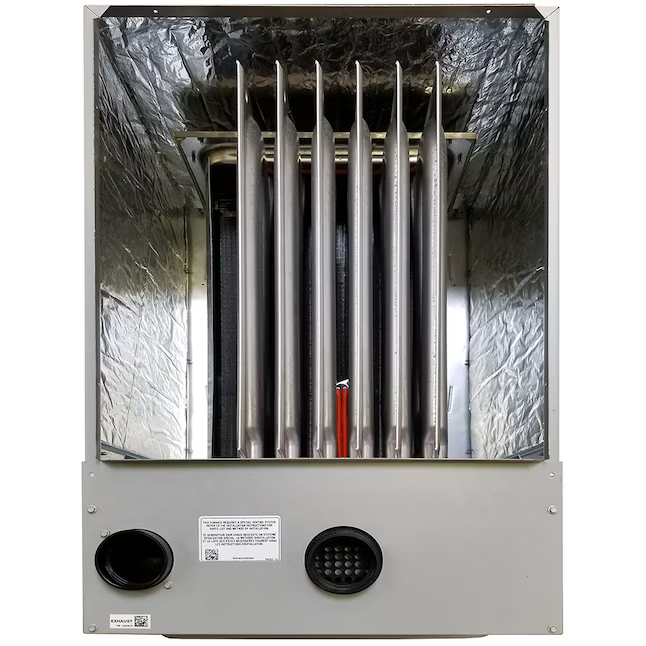

When you’re looking for reliable, high efficiency heating and cooling equipment, with great features and smart designs that can save you money, count on ROYALTON® to deliver years of comfort. The Energy Star® 96G2V series furnace is ideal for new or replacement residential or commercial installations. These 96% efficient two-stage natural gas ready furnaces have a 33 in. tall cabinet, are available in upflow/horizontal models, and downflow models. The optional model 11K48 conversion kit is available for those needing to convert from natural gas to propane (LP gas). The unit is certified for Category IV venting and may be vented either through a side wall or roof applications using approved plastic pipe as allowed by the National Fuel Gas Code. Features include an electronic hot surface igniter for increased safety and efficiency, two stage gas valve, variable speed maintenance free ECM blower motor for quiet and efficient operation, and self-diagnostic control module to monitor operation and simplify troubleshooting. The primary heat exchanger is constructed of tubular aluminized steel with crimped non-welded construction, and has an AL29-4C stainless steel secondary heat exchanger. Units are factory assembled, wired and tested to assure safe, dependable, and economic installation and operation. Note: requires 1/2 in. input to gas valve, dedicated circuit breaker, and 120-Volt wiring with proper polarity and ground. Not certified for mobile home use.

  • Natural gas ready and may be converted to LP gas with optional conversions kit 11K48

  • Compact cabinet height of 33 in. for flexible installation

  • Aluminized steel primary and stainless steel secondary heat exchangers; exclusive ROYALTON® Reliability Assurance; should the heat exchanger fail within 10 years of the installation, a replacement model will be provided at no charge

  • Built-in, high level self-diagnostics with fault code displays standard on integrated control module for reliable operation

  • ECM variable speed blower motor for increased SEER efficiency, quiet operation, and enhanced dehumidification

  • Standard 5-year limited warranty and 20-year limited heat exchanger warranty; additional 5-year limited parts warranty and lifetime limited heat exchanger warranty when registered online within 60 days on qualified installations

  • Adjustable delay timer allows two stage operation with a single stage thermostat; two stage thermostat recommended when installing a two stage condenser

  • Category IV venting; may be vertically or horizontally vented using Schedule 40 PVC as either a one-pipe or two-pipe system for maximum flexibility in installation

  • Not for sale in California as the furnace does not meet the SCAQMD nitrogen oxide emissions standard, and not certified for use in mobile homes

Technical information

Specifications

Brand / manufacturer
ROYALTON
SKU
Item # 12231402 | Model # 96G2UH110CV20
Product category
Furnaces
Item weight
114.0 lb
Dimensions
Depth (Inches)
28.5
Width (Inches)
21
Height (Inches)
33
Color / finish
Gray
Product location
Aisle: Trailer | Bay: 1
Saber exclusive
No
Technical specifications
Air Delivery Configuration
Upflow/Horizontal
Insulation Material
Foil faced fiberglass
Amperage
12.8
Maximum BTU Input
110000
CFM@.5 ESP (CFM)
1955
Maximum BTU Output
105000
Efficiency Percentage (Percentage)
96
Number of Stages
2
Fuel Type
Natural gas
Thermostatic Control
Yes
Furnace Venting Type
Direct vent
Variable Speed
Yes
Housing Material
Painted steel
Voltage (Volts)
120
Ignition
Hot surface ignition
