Read shipping policy →RELIABILT 160-Degree Full Overlay Concealed Soft Close Nickel Plated Cabinet Hinge, 1 Pair (2-Pieces)
Special Order
Regular price
$24.98
Select an available option combination to check delivery and pickup.
Ways to get this item
- Shipping
- Est. dispatch in 1–7 business days
- Pickup
- Est. ready in 1–5 business days
Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.
Product at a glance
Full specifications
Item #5329069 | Model #C81A805FAB+81T00TQA
- Brand
- ReliaBilt
- Product type
- Cabinet Door Hinges
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

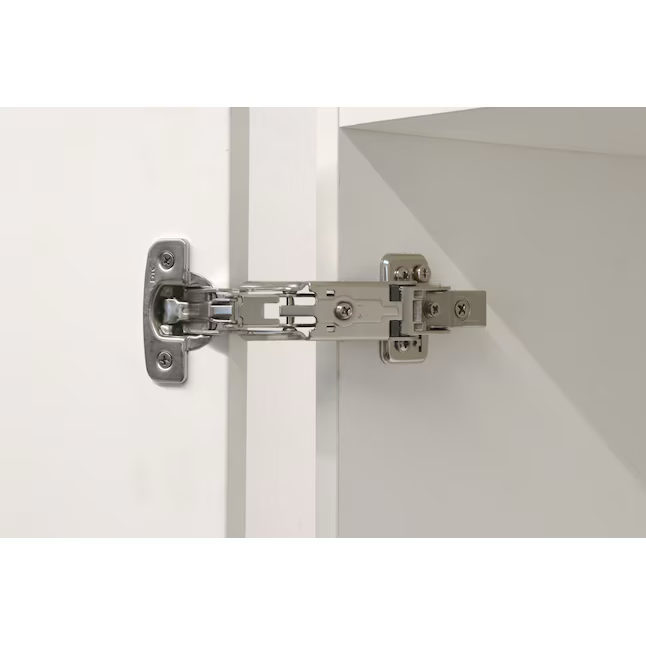

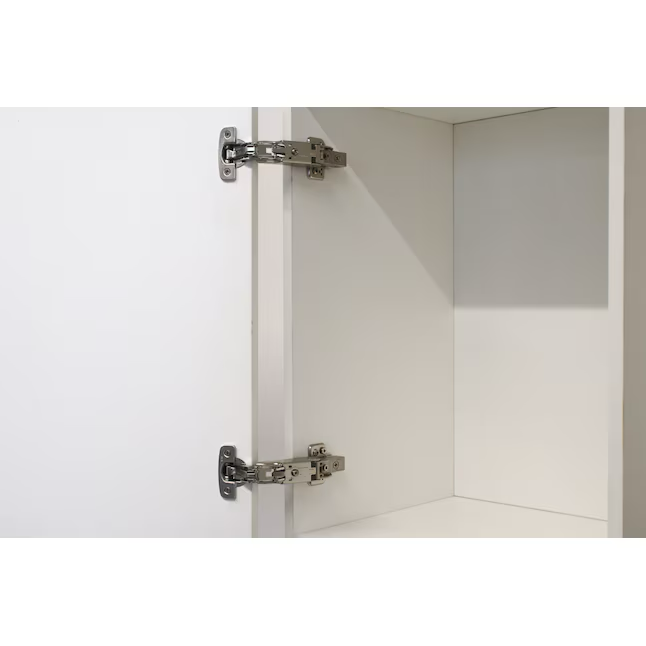

RELIABILT Soft-close frameless concealed hinges are suitable for residential and commercial installations that contains frameless cabinet doors. Quality manufacturing standards for the hinges and the soft-close mechanisms ensure smooth and stable running action. The new technique of anyway snap-on attachment is quick and convenient; any of three hinge-to-plate assembly can be performed: front pivot towards back, rear pivot towards front, sideways straight press-on. With 100,000 cycles of proven durability, they are the ideal choice in concealed hinges.
-

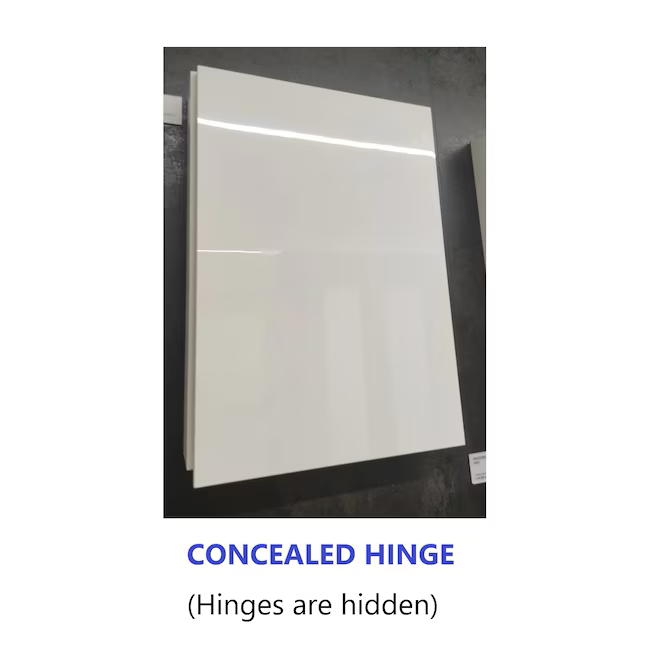

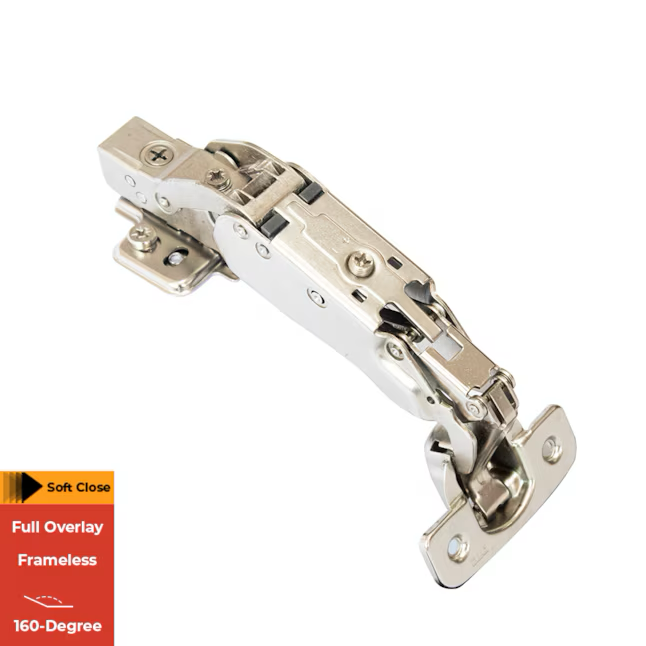

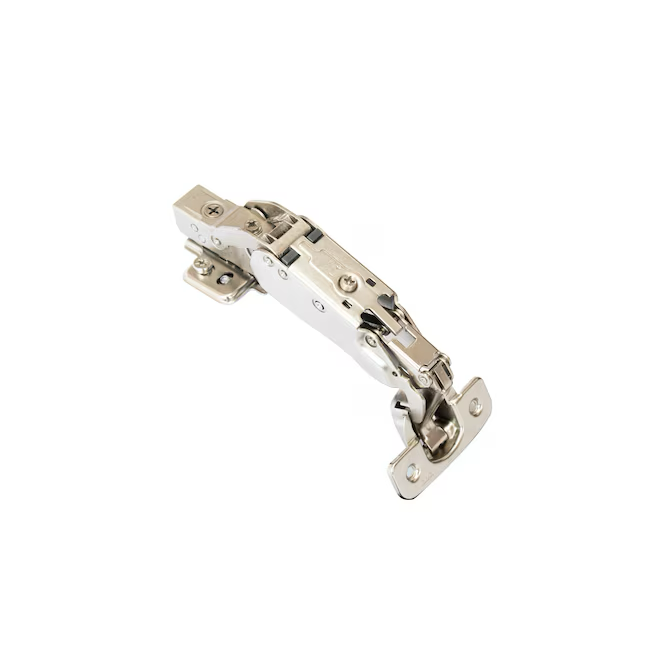

Hinge Type: Concealed full overlay soft-close hinges with Snap-on connection for frameless cabinets
-
Hinge Color: Nickel plated
-

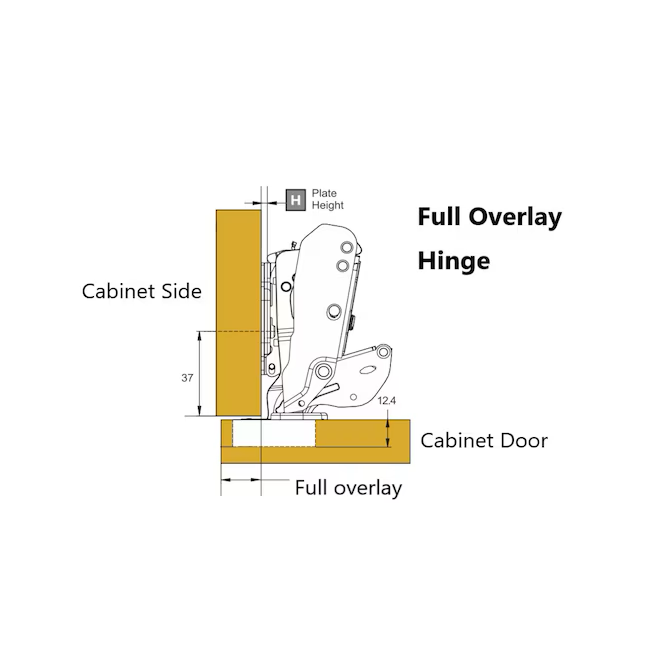

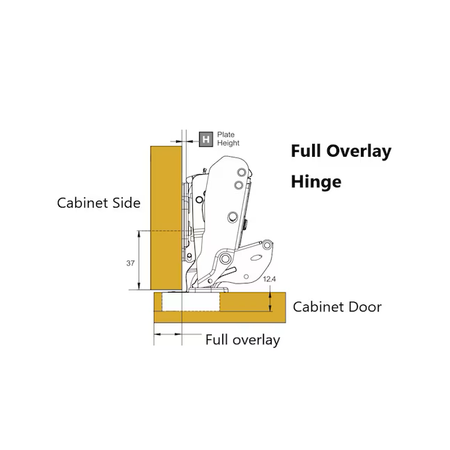

Suitable for full overlay cabinet doors; Hinge Opening Degree: +160°
-

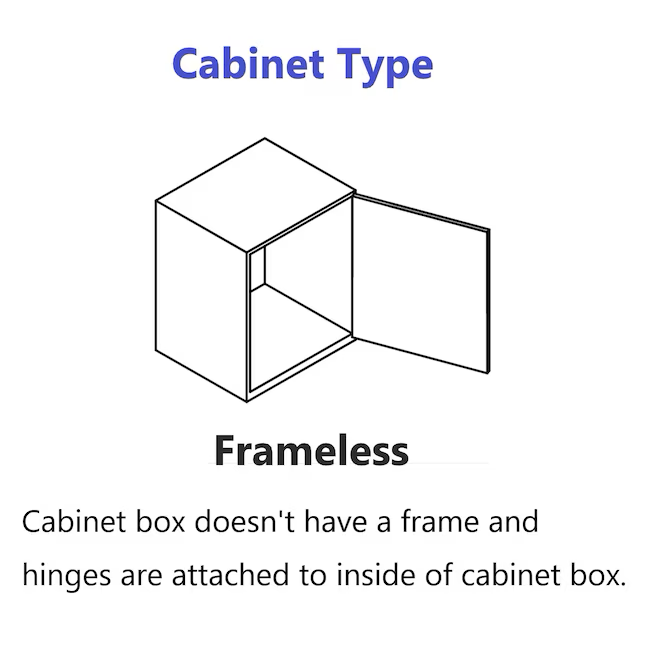

Cabinet Type: Frameless; Anyway Snap-on connection of the hinge to the mounting plate
-
4-dimensional adjustment: side, depth, height, and door closing speed of cabinet doors with soft-close mechanism
-
Material: Nickel plated steel
-
Pack Size: 2 hinges included; Number of Pairs: 1
-
Hardware Included: 4 pcs of flat head wood screws to mount the hinge cups and 4 pcs of pan head screws to mount the plates; • Hinge mounting in the door: 1-3/4” (35mm) diameter x 1/2” (12.7mm) deep hole, 1-3/4” (45mm) spread between mounting screws; Drill Bit Size: 3/32" (2.4 mm) pilot holes.
-
Limited Lifetime Warranty
Technical information
Specifications
- Brand / manufacturer
- ReliaBilt
- SKU
- Item #5329069 | Model #C81A805FAB+81T00TQA
- Product category
- Cabinet Door Hinges
- Item weight
- 0.5 lb
- Product location
- Aisle: 3 | Bay: 2
- Saber exclusive
- Yes
Product resources
Guides, documents & data sheets
Shipping & pickup
Pickup
Pickup availability depends on the product and location. Check the options above or contact our team with your SKU.
Call (915) 598-8598 →Warranty, returns & product notices
- Manufacturer warranty
- None
- Return eligibility
- 30-Day
- California Proposition 65
- Yes
