Product at a glance
Full specifications
Model # L2351
- Dimensions
- Diameter Measurement
4-in
Length Measurement
5-1/2-in
Fits Pipe Size
4-in
Width (Inches)
5.75
Length (Inches)
5.5
Width Measurement
5-3/4-in - Material
- PVC
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

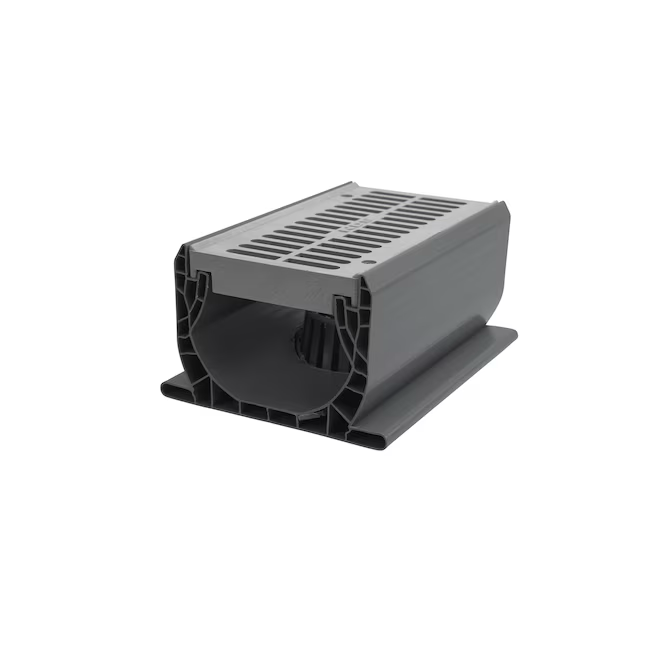

The multifunctional Spee-D® Channel Drain Bottom Outlet Assembly features a 7 inch channel that comes with a prefastened grate to cut down installation time. Bottom outlet connects to 3 inch and 4 inch sewer and drain fittings. Channel is made of polyvinyl chloride and connects with a coupling; grate is made of polyethylene treated with UV inhibitors. The Spee-D Channel, part of the NDS Profile Channel series, is ideal for draining moderate flows from driveways, patios, pool areas, courtyards, and walkways with a 16.8 sq. inch/ft. open surface area, 51 GPM/ft. flow rate. Channel drains, also called trench drains, are long, narrow drains and as part of a complete drainage system, collect water from surrounding surfaces and direct it away to drain pipe. The water is carried to a discharge point downstream such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. NDS channel and trench drains are designed for durability, drainage, and performance, and are a proven alternative to traditional concrete drains. NDS offers free tools such as the Channel Drain Selector, Home Drainage Center, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.
-

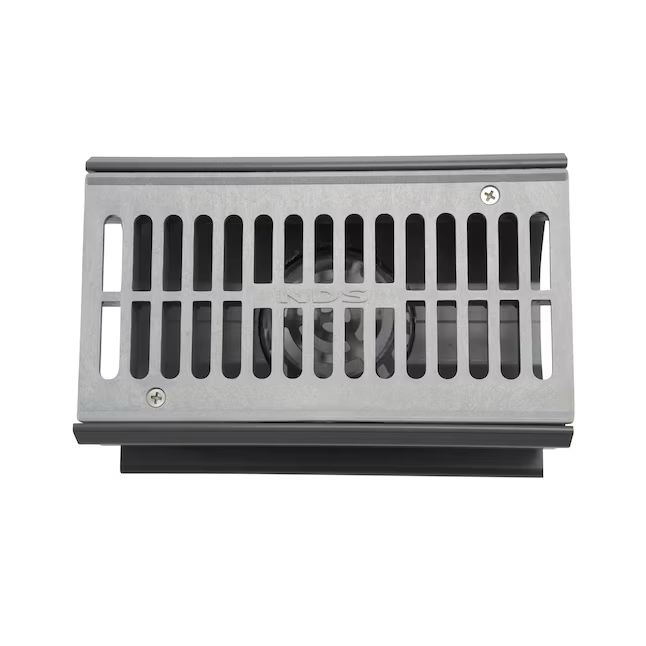

Channel drain and grate come preassembled for a faster install
-
Bottom outlet is integrated into the channel drain
-
Bottom outlet connects to 3 inch and 4 inch sewer and drain fittings
-

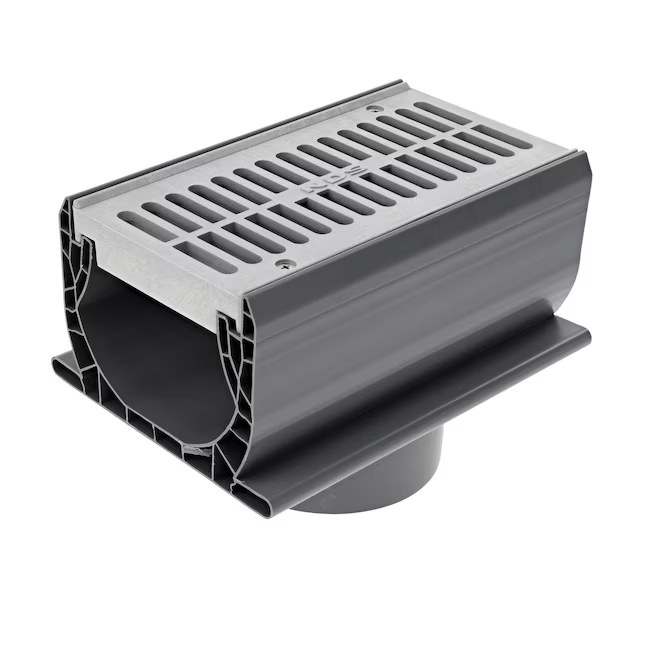

7 inch Spee-D Channel Drain features a built-in bottom outlet and prefastened grate to capture and convey water to drain pipe
-
Works with the Spee-D Channel Drain, part of the NDS Profile Channel series, to capture moderate flows from driveways, concrete and paver patios, pool areas, courtyards, and walkways to prevent slippery mildew, concrete staining, and costly structural damage
-
Use with the Spee-D Channel Drainage system to collect and direct water to drain pipes for proper release downstream
-
Create a water-tight connection using solvent-weld PVC glue
-
Spee-D Channel with fabricated grate and bottom outlet measures 4 inch wide and 7 inch long , Spee-D Channel made of polyvinyl chloride (PVC) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
-
Comes with 1 7 inch Spee-D Channel Drain with integrated bottom outlet and prefastened drain grate
Technical information
Specifications
- Brand / manufacturer
- NDS
- SKU
- Item # 12230120 | Model # L2351
- UPC / barcode
- 052063423517
- Product category
- Outdoor Drainage Accessories
- Item weight
- 5.0 lb
- Dimensions
- Diameter Measurement
4-in
Length Measurement
5-1/2-in
Fits Pipe Size
4-in
Width (Inches)
5.75
Length (Inches)
5.5
Width Measurement
5-3/4-in - Material
- PVC
- Saber exclusive
- No
- Technical specifications
- Common Use
Works with the Spee-D Channel Drain to capture moderate flows from driveways, concrete and paver patios, pool areas, courtyards, and walkways to prevent slippery mildew, concrete staining, and costly structural damage
Product resources
Guides, documents & data sheets
Before you order
Product questions
What dimensions are listed for this option?
Diameter Measurement
4-in
Length Measurement
5-1/2-in
Fits Pipe Size
4-in
Width (Inches)
5.75
Length (Inches)
5.5
Width Measurement
5-3/4-in
4-in
Length Measurement
5-1/2-in
Fits Pipe Size
4-in
Width (Inches)
5.75
Length (Inches)
5.5
Width Measurement
5-3/4-in
Product dimensions do not establish installation clearances. Check the exact model’s installation instructions.
