Product at a glance
Full specifications
Model # MGD96SE070B4XA

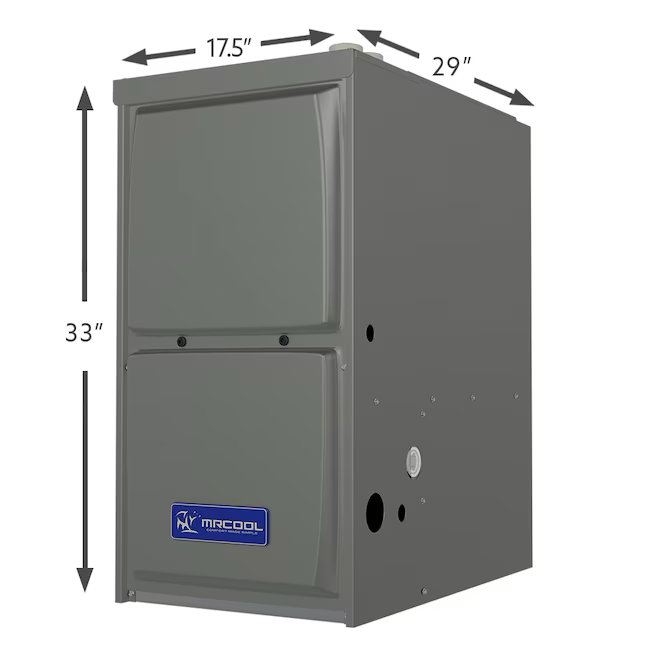

- Dimensions
- Depth (Inches)
29
Width (Inches)
17.5
Height (Inches)
33 - Color / finish
- Gray
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview
Not only is the MRCOOL Signature Series Single-Stage 96% AFUE 70k BTU able to provide effective heating for your home in an easy to install downflow configuration, but it is also quiet running and energy efficient. With a 96% AFUE, this unit will help you save on utility bills. This is thanks in part to the multi-speed high efficiency blower motor. You can also experience enhanced cooling SEER ratings when applied with properly matched cooling equipment. You can expect long term operation thanks to the durable build and finish and an aluminized steel primary heat exchanger with crimped non-welded construction. The aluminized steel inshot burners and durable silicon nitride ignitor help ensure smooth ignition. You can expect quick whole-home heating with the single stage gas valve. Installation is easy with the unit’s compact 33-inch design with standardized widths for easy coil fit. It can be easily vented with PVC pipe and offers left or right utility connections. It is design certified for direct and non-direct vent applications, and you can transition to liquid propane with an optional LP kit. Maintenance is easy for your HVAC technician courtesy of the easily removable slide out blower design. This furnace is proudly backed by a lifetime heat exchanger warranty and 10-year parts warranty.
-
Multi-speed high efficiency (constant torque) blower motor
-
Self-diagnostics saves last 10 fault codes regardless of power interruption
-
Standardized widths for easy coil fit
-
Downflow configuration
-
Single stage gas valve
-
Optional LP kit or high altitude LP conversion kit purchased separately
-
Easily removable slide out blower design
-
10-Year registered parts warranty
-
Aluminized steel in shot burners for smooth ignition
Technical information
Specifications
- Brand / manufacturer
- MRCOOL
- SKU
- Item # 21223960 | Model # MGD96SE070B4XA
- Product category
- Furnaces
- Item weight
- 114.0 lb
- Dimensions
- Depth (Inches)
29
Width (Inches)
17.5
Height (Inches)
33 - Color / finish
- Gray
- Product location
- Aisle: Trailer | Bay: 1
- Saber exclusive
- No
- Technical specifications
- Air Delivery Configuration
Downflow
Insulation Material
Foil Faced Fiberglass
Amperage
8.4
Maximum BTU Input
66000
CFM@.5 ESP (CFM)
1600
Maximum BTU Output
64000
Efficiency Percentage (Percentage)
96
Number of Stages
1
Fuel Type
Natural gas
Thermostatic Control
Yes
Furnace Venting Type
Direct vent
Variable Speed
No
Housing Material
Steel
Voltage (Volts)
120
Ignition
Hot surface igniter
