Product at a glance
Full specifications
Model # MGD96SE045B3XA

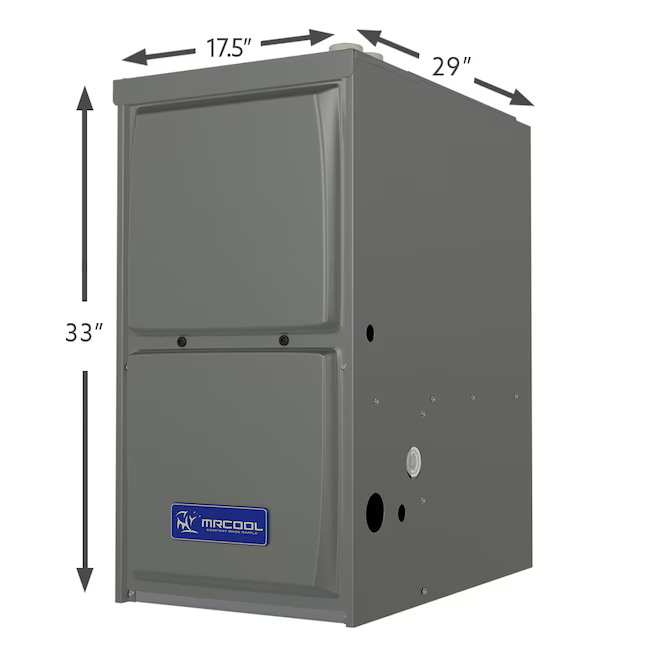

- Dimensions
- Depth (Inches)
29
Width (Inches)
17.5
Height (Inches)
33 - Color / finish
- Gray
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

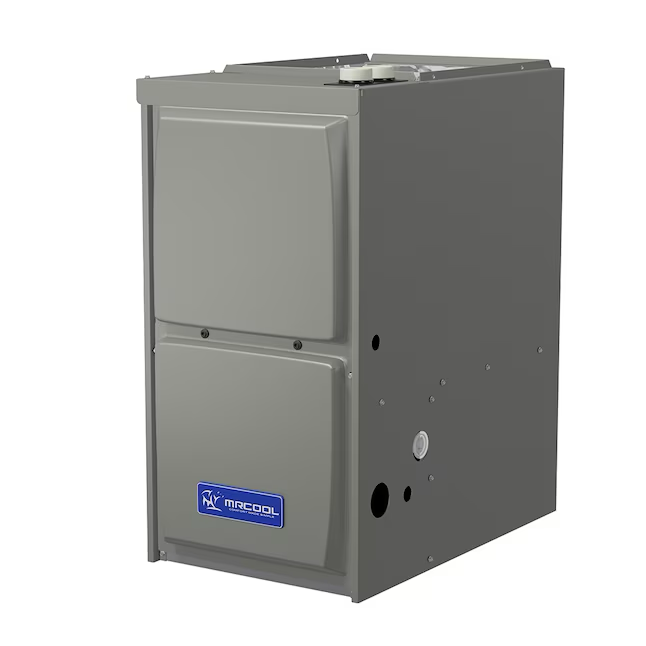

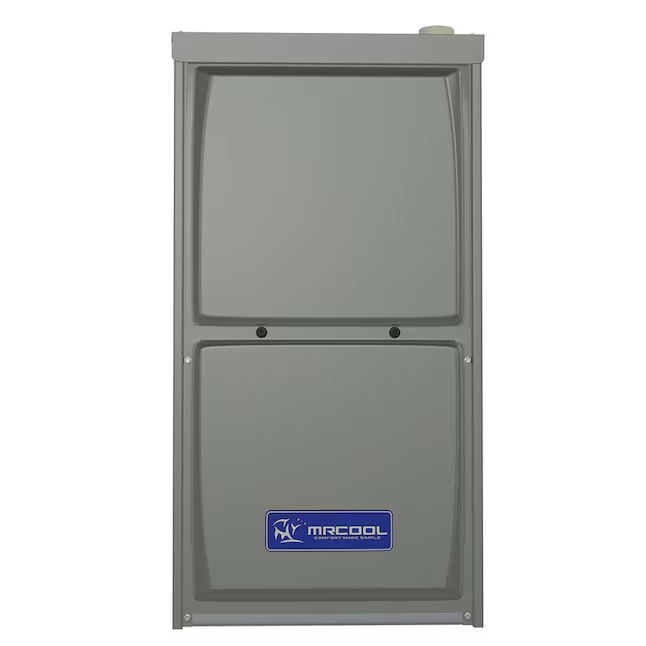

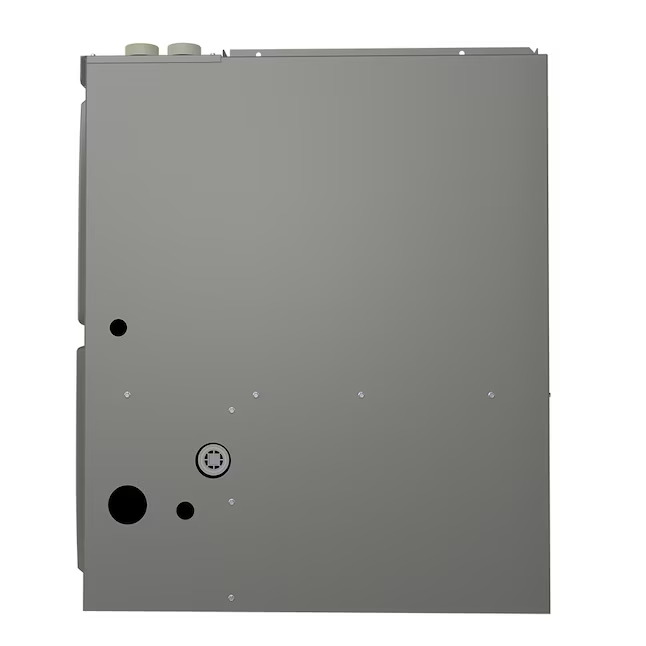

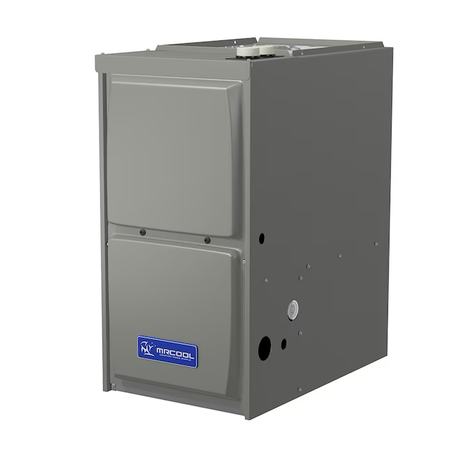

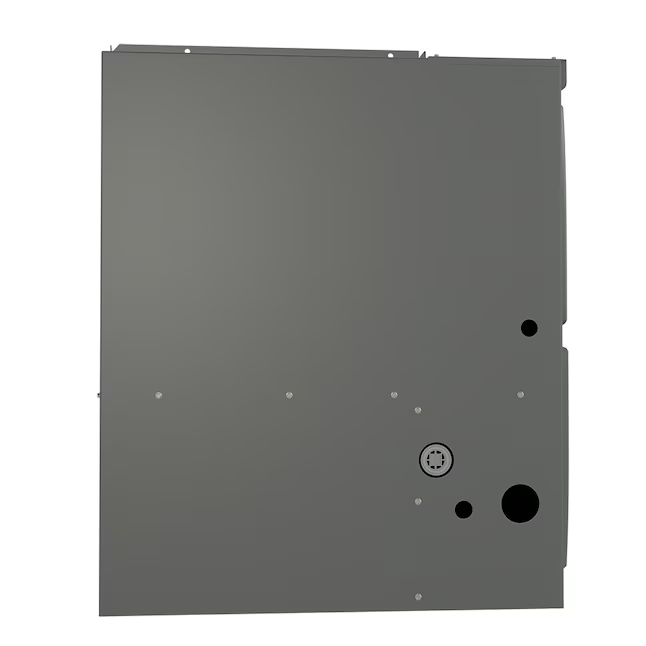

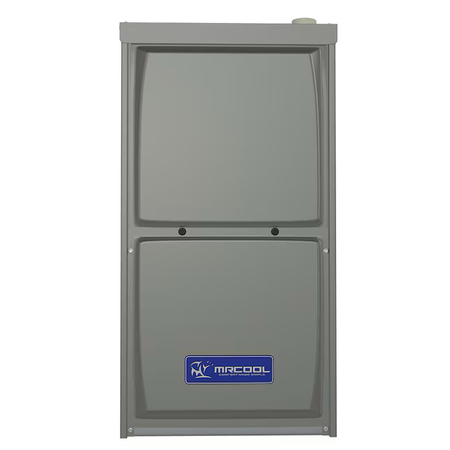

The MRCOOL Signature Series Single-Stage 96% AFUE 45k BTU is a quiet-running and energy efficient downflow furnace unit that provides superior heating performance in a compact design. Thanks to the multi-speed high efficiency blower motor, the furnace features a 96% AFUE, and offers enhanced cooling SEER ratings when applied with properly matched cooling equipment, so utility costs will be more affordable. The unit’s durable build and finish is credited to an aluminized steel primary heat exchanger with crimped non-welded construction. For smooth ignition, the furnace features aluminized steel inshot burners and a durable silicon nitride ignitor. The single stage gas valve delivers home heating quickly and effectively. Installation is easy thanks to the unit’s compact 33-inch design and its standardized widths for easy coil fit. It can be easily vented with PVC pipe and offers a left or right utility connection. It is design certified for direct and non-direct vent applications. There is also an optional LP kit for liquid propane conversion if needed. The easily removable slide out blower design makes maintenance a breeze for a professional HVAC technician as well. For peace of mind, MRCOOL backs this product with a lifetime heat exchanger warranty in addition to a 10-year parts warranty.
-
Multi-speed high efficiency (constant torque) blower motor
-
Self-diagnostics saves last 10 fault codes regardless of power interruption
-
Standardized widths for easy coil fit
-
Downflow configuration
-
Single stage gas valve
-
Optional LP kit or high altitude LP conversion kit purchased separately
-
Easily removable slide out blower design
-
10-Year registered parts warranty
-
Aluminized steel in shot burners for smooth ignition
Technical information
Specifications
- Brand / manufacturer
- MRCOOL
- SKU
- Item # 21223959 | Model # MGD96SE045B3XA
- Product category
- Furnaces
- Item weight
- 114.0 lb
- Dimensions
- Depth (Inches)
29
Width (Inches)
17.5
Height (Inches)
33 - Color / finish
- Gray
- Product location
- Aisle: Trailer | Bay: 1
- Saber exclusive
- No
- Technical specifications
- Air Delivery Configuration
Downflow
Insulation Material
Foil Faced Fiberglass
Amperage
6.8
Maximum BTU Input
44000
CFM@.5 ESP (CFM)
1200
Maximum BTU Output
42000
Efficiency Percentage (Percentage)
96
Number of Stages
1
Fuel Type
Natural gas
Thermostatic Control
Yes
Furnace Venting Type
Direct vent
Variable Speed
No
Housing Material
Steel
Voltage (Volts)
120
Ignition
Hot surface igniter
