Product at a glance
Full specifications
Model # 30-2346J
- Dimensions
- Maximum Wire Capacity
Four #12 AWG
Minimum Wire Capacity
Three #22 AWG - Material
- Plastic
- Color / finish
- Red, Yellow, Orange, Blue
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

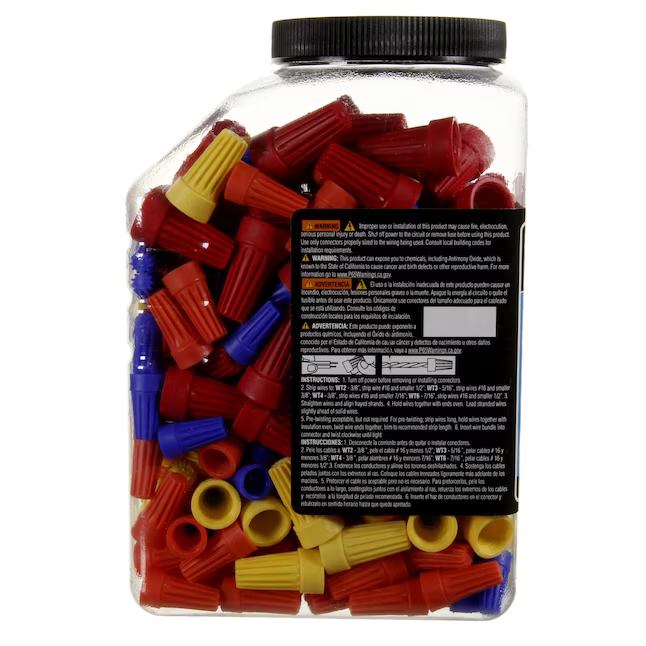

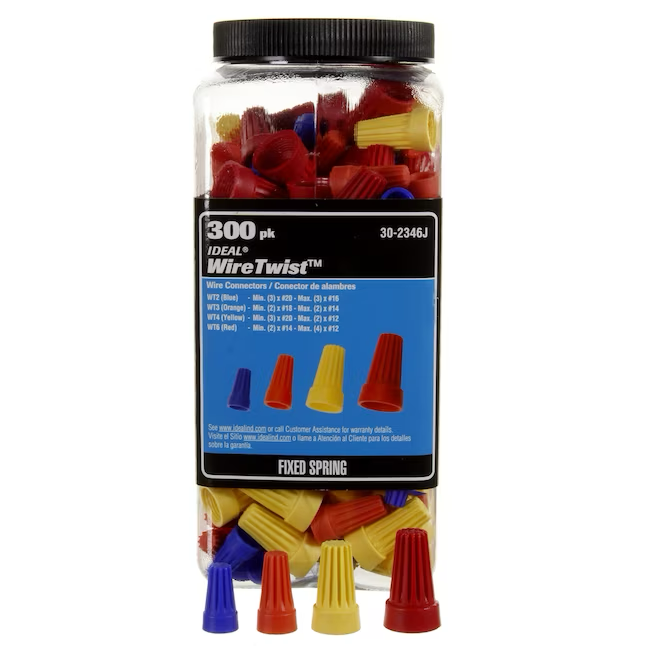

With four, color-coded connectors designed to accommodate hundreds of different solid or stranded wire combinations, WireTwist Wire Connectors offer an economical connector that brings a lot of value in comfort and performance. The fixed, live-action, square-wire spring threads itself as it draws wires into the connector, creating a secure pressure grip. The rugged, thermoplastic shell withstands extreme environments. The deep, wide-throated skirt protects against flash over and turned back strands providing excellent dielectric protection.
-
Positive grip shell design for comfort and ease of application
-
Flame retardant shell rated at 105°C for maximum protection
-

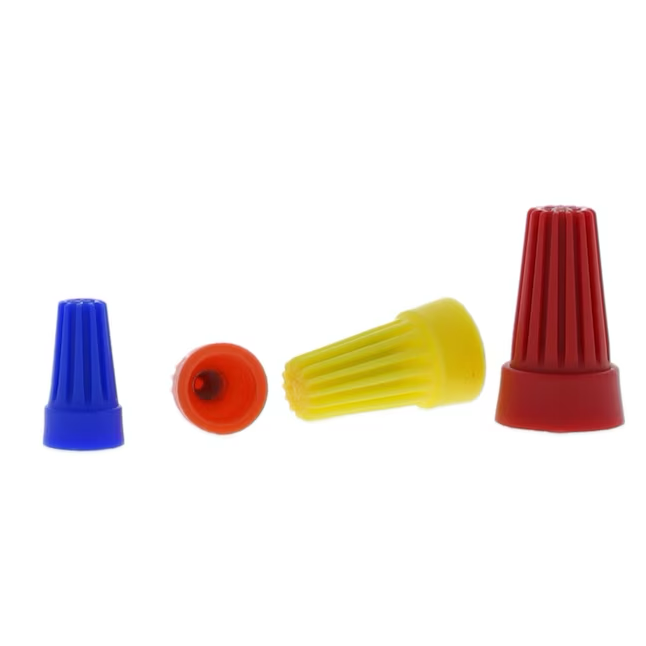

Includes 75 blue, 75 orange, 75 yellow and 75 red connectors
-
Deep skirt to prevent arcing and unintended shorts
-
Square wire spring ensures solid contact and secure connections
-
UL 486C listed and CSA 22.2 #188 certified
Technical information
Specifications
- Brand / manufacturer
- IDEAL
- SKU
- Item # 21223753 | Model # 30-2346J
- UPC / barcode
- 783250922925
- Product category
- Plastic Wire Nut
- Item weight
- 25.0 lb
- Dimensions
- Maximum Wire Capacity
Four #12 AWG
Minimum Wire Capacity
Three #22 AWG - Material
- Plastic
- Color / finish
- Red, Yellow, Orange, Blue
- Style
- Twist-on wire connectors
- Saber exclusive
- No
- Technical specifications
- Indoor
Product resources
Guides, documents & data sheets
Shipping, local delivery & pickup
Local delivery & pickup
Availability depends on the product, location and order requirements. Check the options above or contact our team with your SKU and delivery address.
Call (915) 598-8598 →Warranty, returns & product notices
- Manufacturer warranty
- 1-year
- Return eligibility
- 30-Day
- California Proposition 65
- Yes
