Product at a glance
Full specifications
Model # TM3220CCU2K

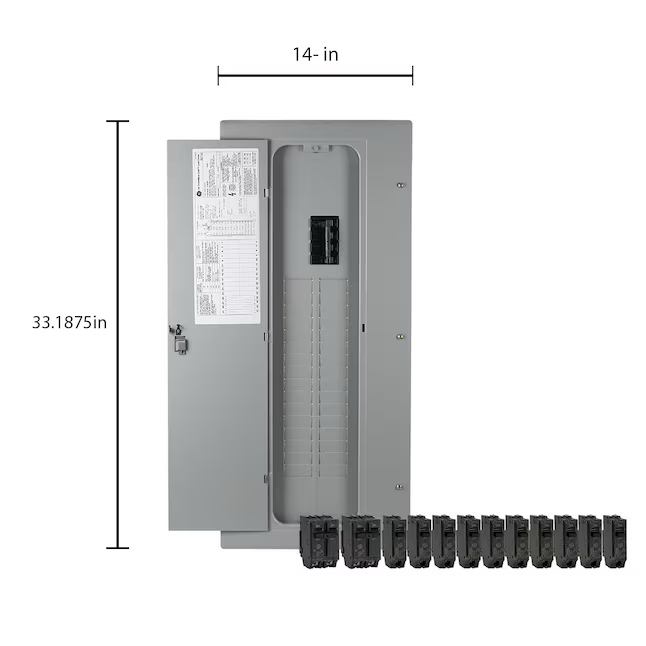

- Dimensions
- Depth (Inches)
3.75
Width (Inches)
14
Height (Inches)
33.1875 - Color / finish
- Gray
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

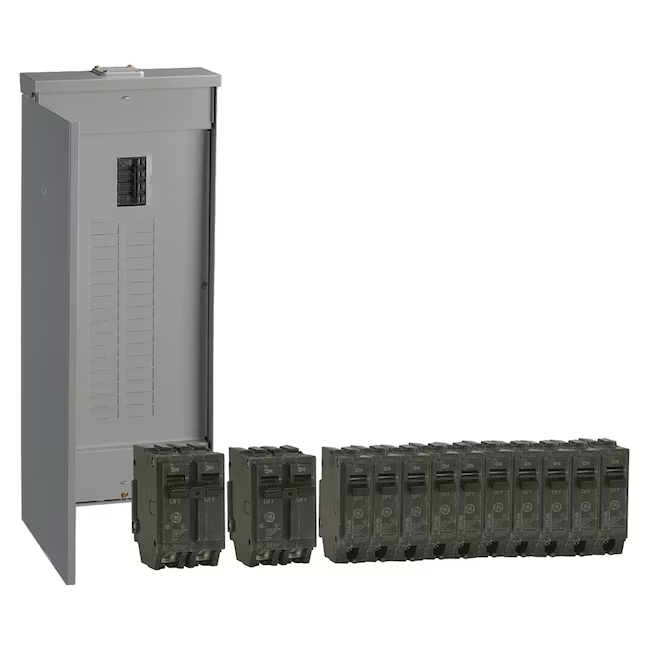

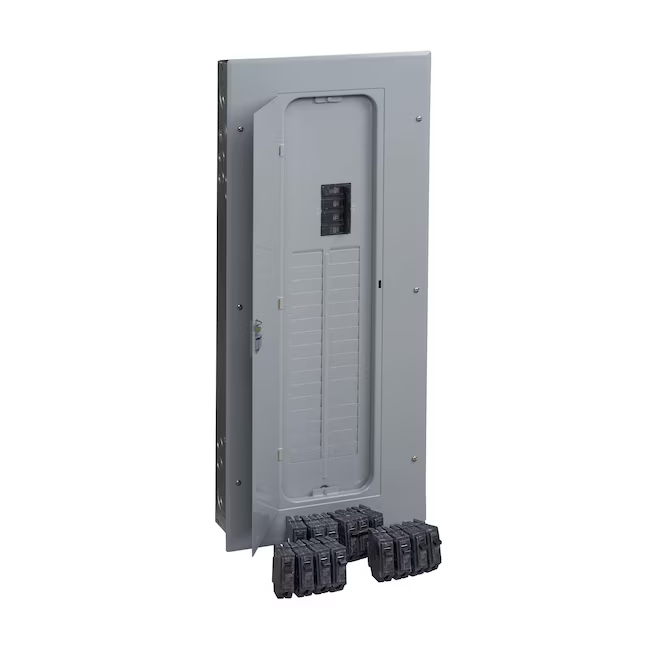

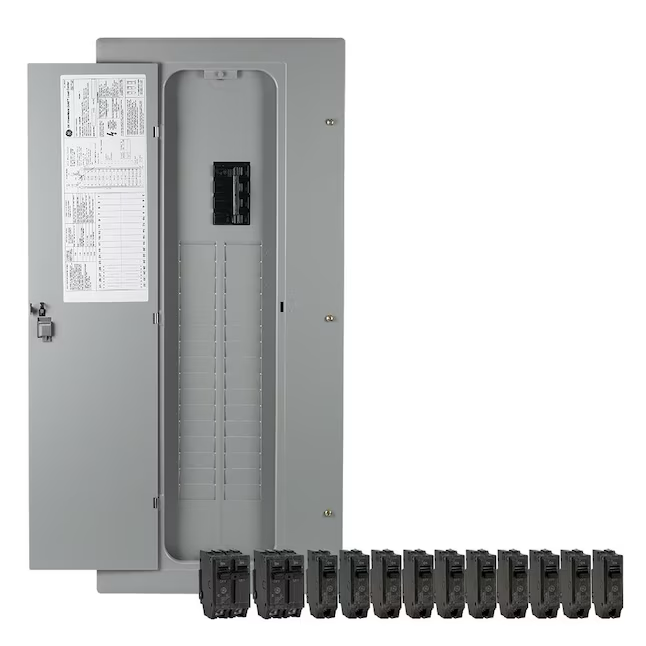

This GE value kit includes 10 20 Amp single pole, 1 30 Amp double pole, 1 50 Amp double pole THQL 1 in. circuit breakers. The circuit breaker panel includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The 1-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface or flush front. Top or bottom feed. This circuit breaker panel is UL Listed and ANSI certified.
-
Value kit includes a PowerMark Gold 200 Amp main breaker indoor circuit breaker panel, 10 20 Amp single pole, 1 30 Amp double pole, 1 50 Amp double pole THQL 1 in circuit breakers
-
Main breaker is factory installed
-
Galvanized box for rust resistance with a self-adjusting dead-front cover
-
Copper buss for increased conduction
-
Full-length neutral bars for faster and easier wiring and 100% split neutral holes on each side are rated for #14-4 wire
-
Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
-
Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
-
Meets UL and ANSI safety requirements
-
The warranty is one (1) year from first use or eighteen (18) months from delivery, whichever occurs first
Technical information
Specifications
- Brand / manufacturer
- GE
- SKU
- Item # 71223228 | Model # TM3220CCU2K
- UPC / barcode
- 783164302424
- Product category
- Breaker Boxes
- Item weight
- 5.0 lb
- Dimensions
- Depth (Inches)
3.75
Width (Inches)
14
Height (Inches)
33.1875 - Color / finish
- Gray
- Style
- Breaker Box
- Product location
- Aisle: 23 | Bay: 8
- Saber exclusive
- No
- Technical specifications
- Amperage
200
Orientation
Over/Under
Buss Bar Construction
Copper
Paintable
Yes
Circuits
40
Phase Type
Single phase (120/240)
Cover Included
Yes
Plug-On Neutral
No
Feed-Through Lugs
No
Usage
Service entrance
Ground Bar Installed
No
Use Location
Indoor
Mounting Type
Combination
Value Pack
Yes
Number of Spaces
32
Product resources
Guides, documents & data sheets
Before you order
Product questions
What dimensions are listed for this option?
Depth (Inches)
3.75
Width (Inches)
14
Height (Inches)
33.1875
3.75
Width (Inches)
14
Height (Inches)
33.1875
Product dimensions do not establish installation clearances. Check the exact model’s installation instructions.
