Read shipping policy →GE PowerMark Gold 200-Amp 20-Spaces 40-Circuit Outdoor Main Breaker Load Center (Value Pack)
Special Order
Regular price
$185.00
Select an available option combination to check delivery and pickup.
Ways to get this item
- Shipping
- Est. dispatch in 1–7 business days
- Local delivery
- Confirm timing for your address
- Pickup
- Est. ready in 1–5 business days
Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.
Product at a glance
Full specifications
Model # TM2020RCUBK1

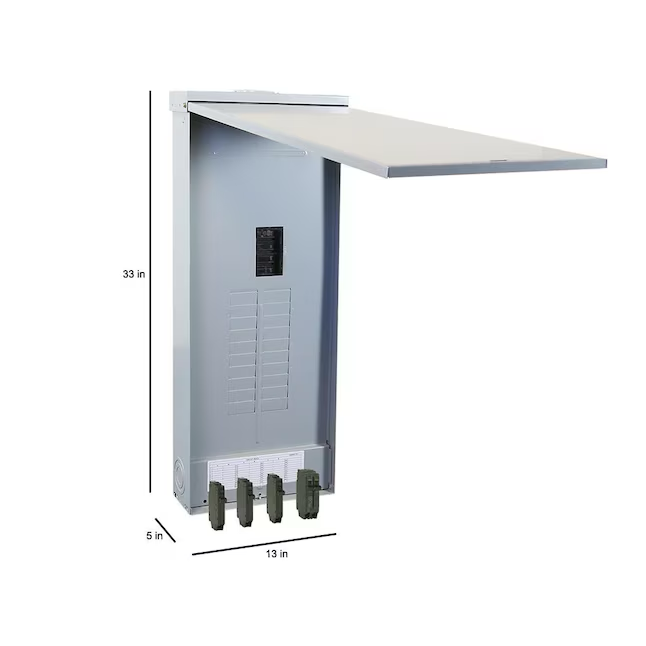

- Dimensions
- Depth (Inches)
4.63
Width (Inches)
12.5
Height (Inches)
32.69 - Color / finish
- Gray
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Keep your supplies organized.
Create a branded bin label for this product.
Product details
Product overview

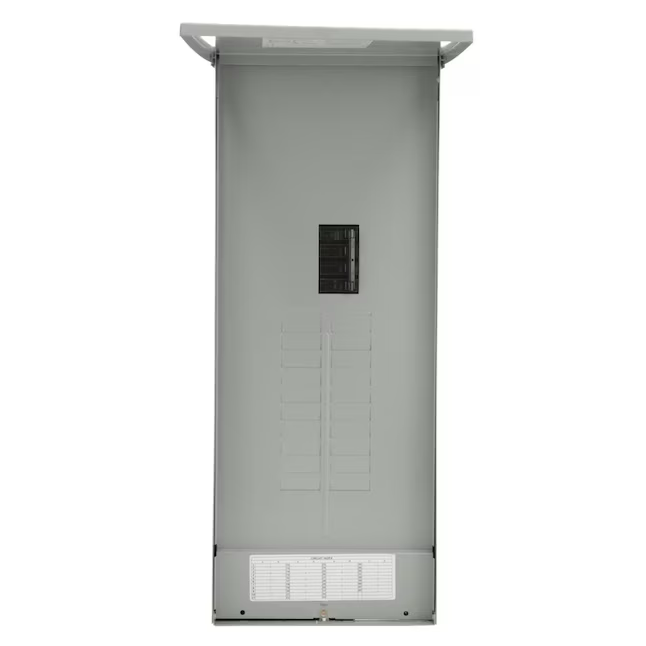

The GE 200 Amp 20-space 40-circuit main breaker outdoor contractor kit is pre-packaged with a selection of circuit breakers. The UL Listed panel has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The breaker box is a single-phase, 3-wire unit with a factory installed main breaker. The panel is designed and built for faster installation and a more dependable performance. This unit is compatible with dual functions, GFCIs, AFCIs and standard circuit breakers.
-

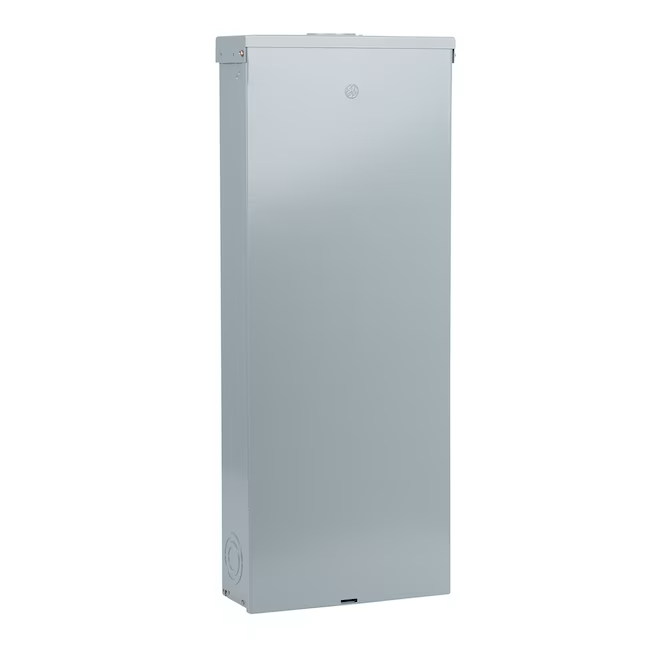

Outdoor NEMA 3R Enclosure
-

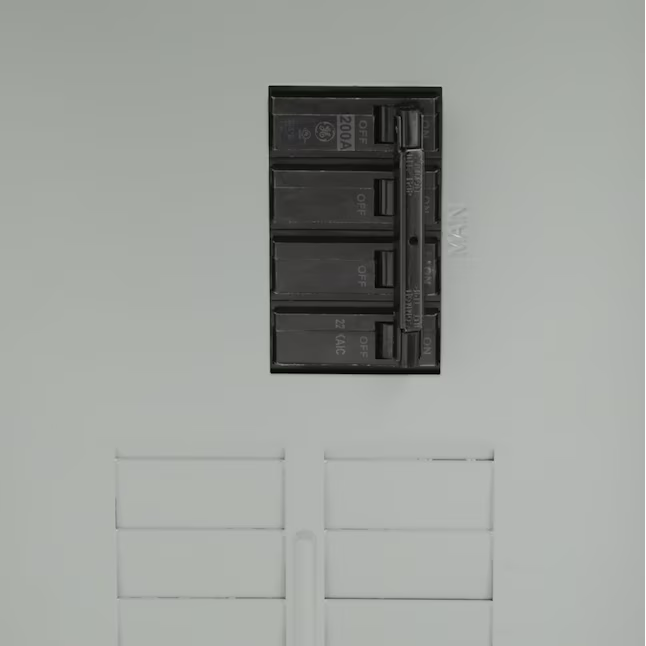

Main Breaker is Factory Installed
-
Includes 4 select Circuit Breakers
-
Copper buss for increased conduction
-
Galvanized box for rust resistance with a self-adjusting dead-front cover
-
Full-length neutral bars for faster and easier wiring
-

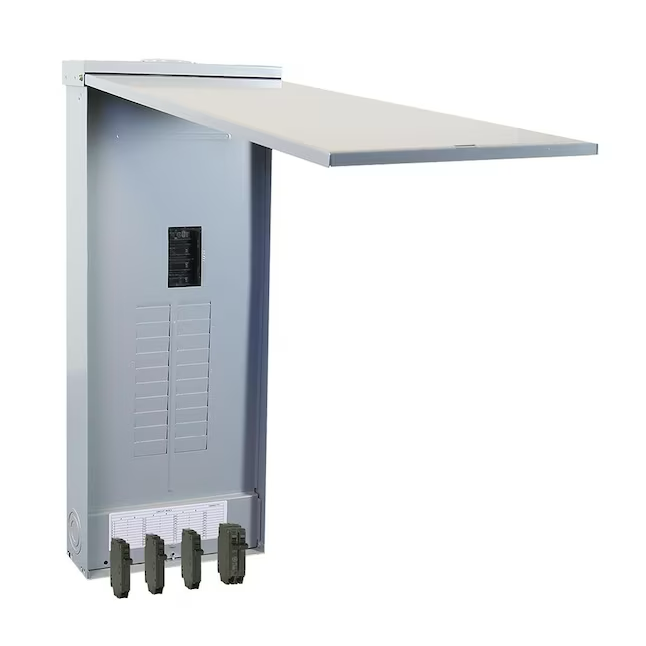

Kit includes 3 THQP120 20 Amp single-pole circuit breakers and 1 THQP230 30 Amp double-pole circuit breaker
-

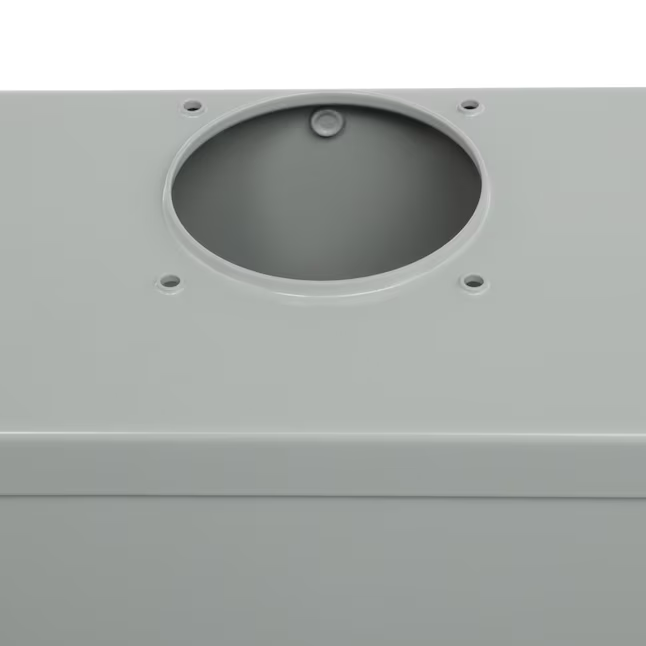

Closure caps included, hubs ordered separately
-
Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
Technical information
Specifications
- Brand / manufacturer
- GE
- SKU
- Item # 71223224 | Model # TM2020RCUBK1
- UPC / barcode
- 783164493627
- Product category
- Breaker Boxes
- Item weight
- 5.0 lb
- Dimensions
- Depth (Inches)
4.63
Width (Inches)
12.5
Height (Inches)
32.69 - Color / finish
- Gray
- Style
- Breaker Box
- Product location
- Aisle: 23 | Bay: 8
- Saber exclusive
- No
- Technical specifications
- Amperage
200
Orientation
Over/Under
Buss Bar Construction
Copper
Paintable
Yes
Circuits
40
Phase Type
Single phase (120/240)
Cover Included
Yes
Plug-On Neutral
No
Feed-Through Lugs
Yes
Usage
Service entrance
Ground Bar Installed
No
Use Location
Outdoor
Mounting Type
Surface
Value Pack
Yes
Number of Spaces
20
