Product reference sheet

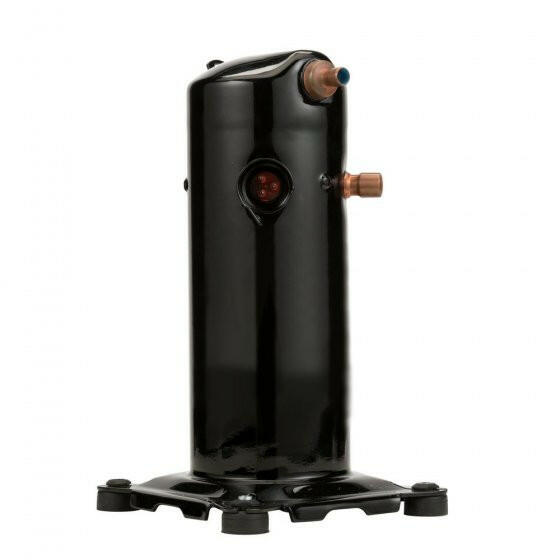

Emerson Electric Co. (Copeland) Scroll™ 5.5" x 15.3", 3/4" ODF Soldered Suction, 1/2" ODF Soldered Discharge, 200 VAC 50 Hz 1-Phase, 208 to 230 VAC 60 Hz, 15.7 RLA, 28000 BTU/Hr, R-22/R-407C/R-134A, Scroll Compressor with POE Oil and Internal Inherent Protection for Air Conditioner
Specifications

Size: 5.5 Inch Diameter x 15.3 Inch Height
Used On Item: Air Conditioner
Connection Size 3/4 Inch ODF Soldered (Suction), 1/2 Inch ODF Soldered (Discharge)
Refrigerant Type R-22/R-407C/R-134A
Nominal Capacity 28000 BTU/Hour
Voltage Rating 200 Volt AC 50 Hertz, 208 to 230 Volt AC 60 Hertz 1-Phase
Current Rating 15.7 Amp (RLA)
Motor Type 45 Microfarad at 370 Volt 1-Phase PSC
Cooling Efficiency 10.25 EER
Includes POE Oil, Internal Inherent Protection



SPECIFICATIONS



Manufacturer Name:
Copeland Corporation


Compressor Type:
Hermetic, Scroll


Connection Size:
1/2" OD Female (Discharge), 3/4" OD Sweat or Braze (Suction)


Current Rating:
7.8 Amps, 16.0 Amps (Maximum)


Current Rating (Locked Rotor Amps):
75.0 Amps


Current Rating (Maximum Operating Current):
16.0 Amps


Current Rating (Minimum Circuit):
15.7 Amps


Current Rating (Rated Load Amps):
14.1 / 15.7 Amps


Energy Efficiency Ratio:
10.25 / 21.25


Frequency Rating:
60 Hertz


Motor Protection Type:
Internal Inherent Protection


Nominal Capacity:
28,000 Btu per Hour


Number of Phases:
Single


Oil Charge:
25 Ounces (Initial), 19 Ounces (Recharge)


Oil / Lubricant Type:
Polyolester Oil (POE)


Power Rating:
2,660 Watts


Refrigerant Type:
R22, R134A, R407C


Temperature Rating:
45 to 50 DGF (Evaporating), 65 to 70 DGF (Return Gas)


Tonnage:
2.5 Tons


Voltage Rating:
208/230 VAC
