Product at a glance
Full specifications
Item # ZR28K5E-PFV-830
- Brand
- Copeland
- Product type
- Scroll Compressor
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

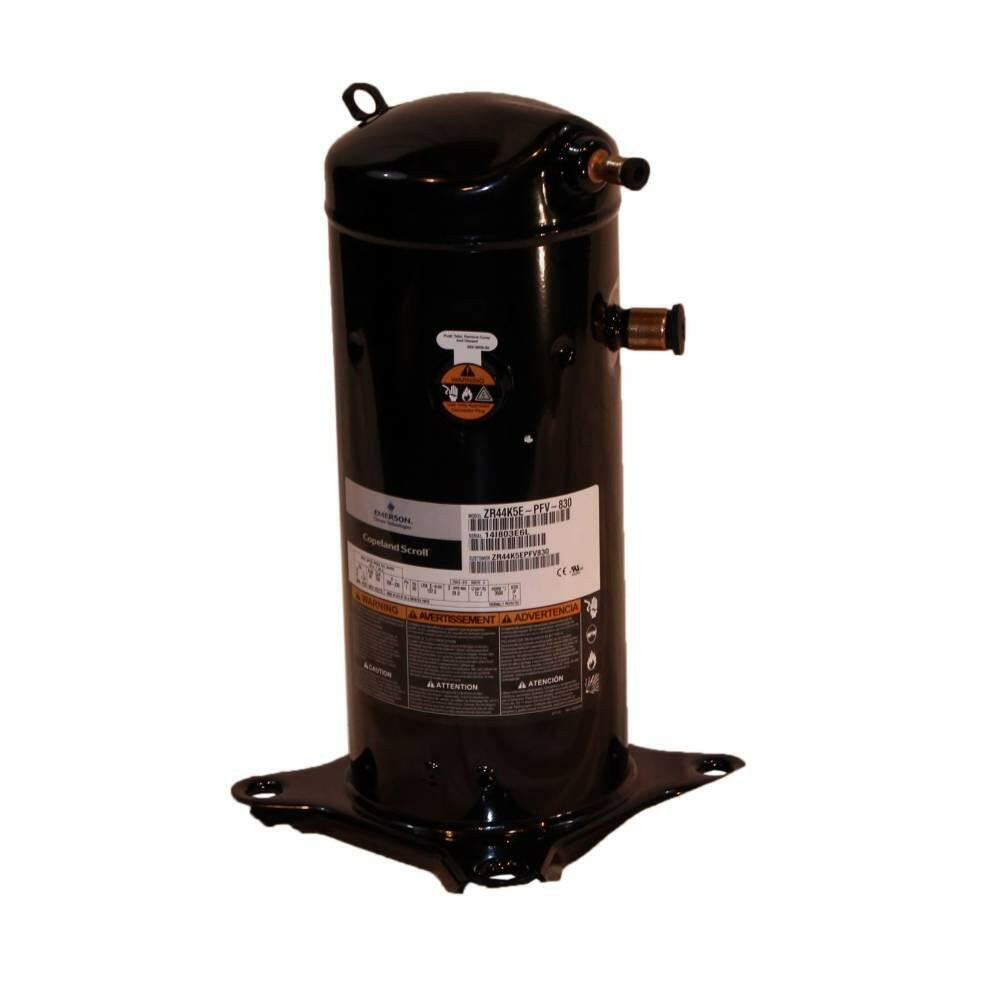

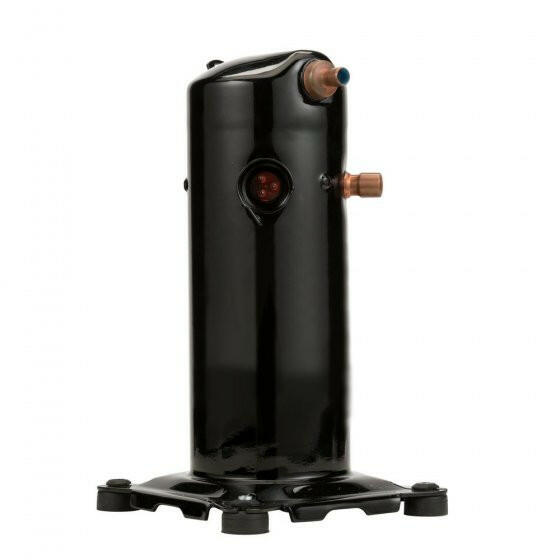

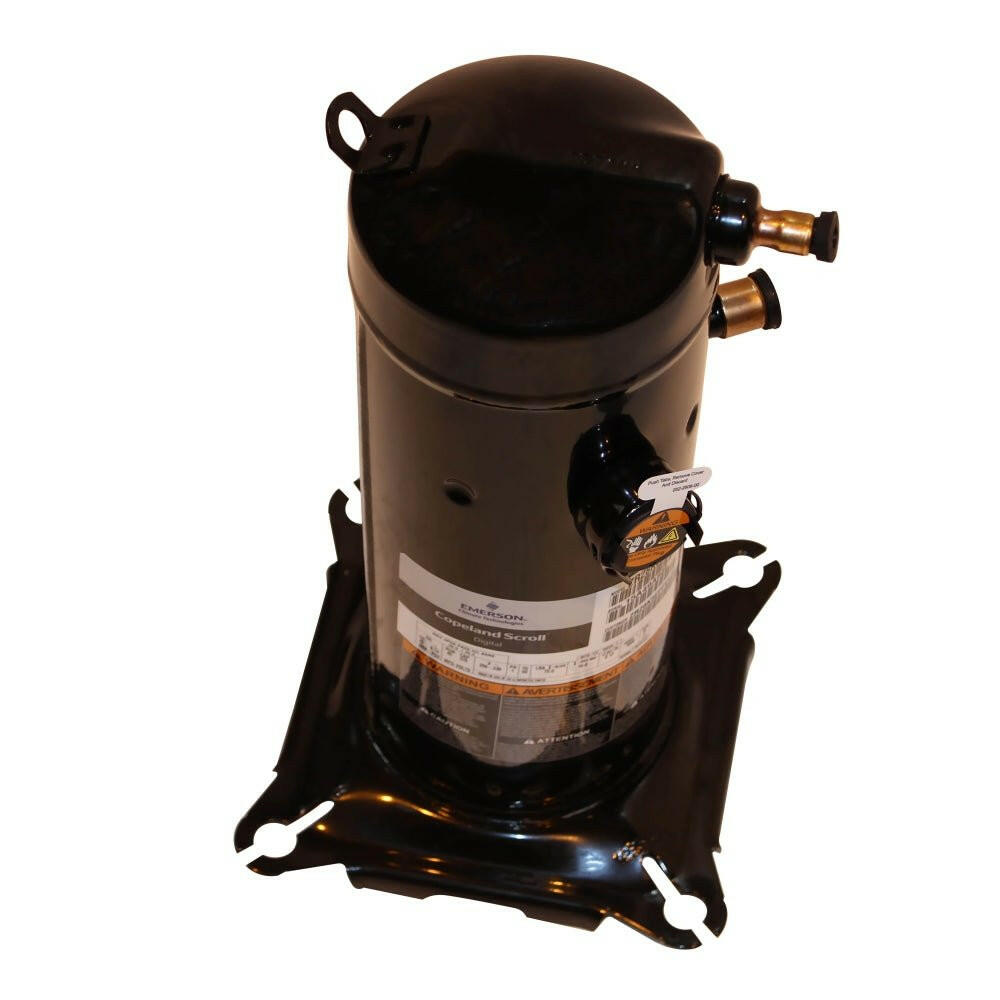

Emerson Electric Co. (Copeland) Scroll™ 5.5" x 15.3", 3/4" ODF Soldered Suction, 1/2" ODF Soldered Discharge, 200 VAC 50 Hz 1-Phase, 208 to 230 VAC 60 Hz, 15.7 RLA, 28000 BTU/Hr, R-22/R-407C/R-134A, Scroll Compressor with POE Oil and Internal Inherent Protection for Air Conditioner
Specifications
- Size: 5.5 Inch Diameter x 15.3 Inch Height
- Used On Item: Air Conditioner
- Connection Size 3/4 Inch ODF Soldered (Suction), 1/2 Inch ODF Soldered (Discharge)
- Refrigerant Type R-22/R-407C/R-134A
- Nominal Capacity 28000 BTU/Hour
- Voltage Rating 200 Volt AC 50 Hertz, 208 to 230 Volt AC 60 Hertz 1-Phase
- Current Rating 15.7 Amp (RLA)
- Motor Type 45 Microfarad at 370 Volt 1-Phase PSC
- Cooling Efficiency 10.25 EER
- Includes POE Oil, Internal Inherent Protection
SPECIFICATIONS
| Manufacturer Name: | Copeland Corporation |
| Compressor Type: | Hermetic, Scroll |
| Connection Size: | 1/2" OD Female (Discharge), 3/4" OD Sweat or Braze (Suction) |
| Current Rating: | 7.8 Amps, 16.0 Amps (Maximum) |
| Current Rating (Locked Rotor Amps): | 75.0 Amps |
| Current Rating (Maximum Operating Current): | 16.0 Amps |
| Current Rating (Minimum Circuit): | 15.7 Amps |
| Current Rating (Rated Load Amps): | 14.1 / 15.7 Amps |
| Energy Efficiency Ratio: | 10.25 / 21.25 |
| Frequency Rating: | 60 Hertz |
| Motor Protection Type: | Internal Inherent Protection |
| Nominal Capacity: | 28,000 Btu per Hour |
| Number of Phases: | Single |
| Oil Charge: | 25 Ounces (Initial), 19 Ounces (Recharge) |
| Oil / Lubricant Type: | Polyolester Oil (POE) |
| Power Rating: | 2,660 Watts |
| Refrigerant Type: | R22, R134A, R407C |
| Temperature Rating: | 45 to 50 DGF (Evaporating), 65 to 70 DGF (Return Gas) |
| Tonnage: | 2.5 Tons |
| Voltage Rating: | 208/230 VAC |
| PROP 65 WARNING: | Yes |
Technical information
Specifications
- Brand / manufacturer
- Copeland
- SKU
- Item # 41223611 | Model # ZR28K5E-PFV-830
- UPC / barcode
- ZR28K5E-PFV-830
- Product category
- Scroll Compressor
- Item weight
- 75.0 lb
