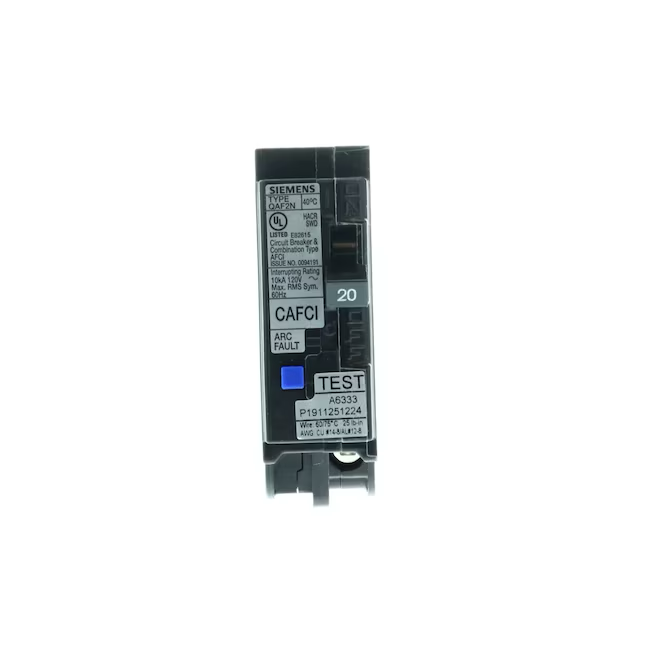

Siemens QAF 20-amp 1-Pole Combination Arc Fault Plug-on Neutral Circuit Breaker
- Brand
- Siemens
- SKU / Item reference
- Item # 71223697 | Model # QA120AFCNP
- UPC / Barcode
- 804766906688
Supplied specifications
- Dimensions
- Power Capacity
20-amp
Width Measurement
1-in - Color / finish
- Black
- Voltage
- 120/240
- Amperage
- 20-Amp
Product overview
Siemens introduces the new simple, spacious and secure Plug-on neutral load centers with electronic breakers. The Siemens Plug-On Neutral Combination Type AFCI breaker detects arcing faults (an unintentional arcing condition in a circuit) that standard circuit breaker are unable to detect. This AFCI circuit breaker is the same, reliable design, without the pigtail, specifically design for the Plug-On Neutral Load Centers. These breakers now only have a single load lug. The branch neutral conductor is returned to the neutral terminal bar for simpler and quicker wiring.
Use to reduce the risk of electrical fires caused by arc faults
LED trip indicators to help identify fault conditions
CAFCI detects all 3 types of arc faults
For use with 120V AC circuits
Plug-On Neutral style breakers are designed for use in Siemens plug-on neutral load centers
10,000 AIC interrupting rating
Suitable for use with 120 VAC fluorescent lighting
SWD rated
#14 - #8 AWG copper, #12 - #8 AWG aluminum wire range
Use to reduce the risk of electrical fires caused by arc faults
LED trip indicators to help identify fault conditions
CAFCI detects all 3 types of arc faults
For use with 120V AC circuits
Plug-On Neutral style breakers are designed for use in Siemens plug-on neutral load centers
10,000 AIC interrupting rating
Suitable for use with 120 VAC fluorescent lighting
SWD rated
#14 - #8 AWG copper, #12 - #8 AWG aluminum wire range
