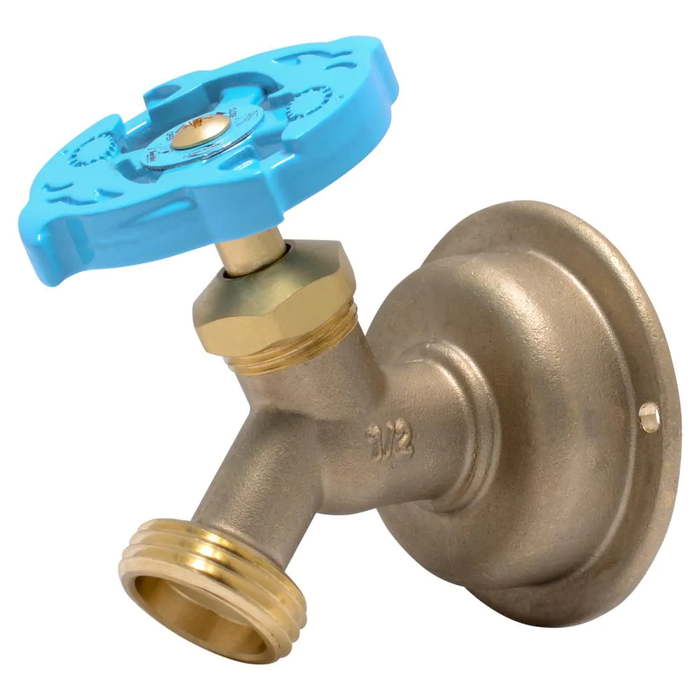

SharkBite 1/2 in. Push-to-Connect x 3/4 in. MHT Brass Multi-Turn No Kink Hose Bibb
- Brand
- SharkBite
- SKU / Item reference
- Item # 12230585 | Model # 24632LFZ
- UPC / Barcode
- 697285031999
Supplied specifications
- Dimensions
- Depth (Inches)
2.97
Length (Inches)
.0
Height (Inches)
2.44
Outlet Diameter
3/4-in
Inlet Diameter
1/2-in
Width (Inches)
2.44
Inlet Size in Inches
1/2-in - Material
- Brass
Product overview
The 1/2 in. SharkBite push-to-connect no-kink 45°F multi turn hose bibb is the easiest way to install a new or replacement hose bibb. The valve is perfect for potable water and hydronic applications where a shut-off is needed. Using SharkBite fittings is the easiest way to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.
Push-to-connect design makes for quick and easy install, requires no solder, glue, unions or tools
Connects to copper, PEX, CPVC or PE-RT pipe
45°F angle allows for no kinks
Lead free DZR brass construction for durability and reliability
Fitting can be rotated on pipe after installation making it easier to work in tight spaces
Designed for potable water distribution
Corrosion resistant to improve longevity
Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
Meets all UPC, IPC, and cUPC requirements
Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
Rated to 200°F and 200 psi
1/2 in. pipe insertion depth equal to 15/16 in.
Dimensions
Inlet Diameter (In.)
1/2
Outlet Diameter (In.)
3/4
Product Depth (in.)
0.8 in
Product Height (in.)
2.41 in
Product Length (in.)
22 in
Product Width (in.)
0.8 in
Details
Application
Water Supply
Compatible Pipe Material
Multi-Purpose
Connection
PTC
Features
Lead Free
Indoor/Outdoor
Indoor
Material
Brass
Maximum Pressure (PSI)
200
Maximum Working Temperature (F)
200
Pack Size
1
Product Weight (lb.)
0.5 lb
Returnable
Non-Returnable
Valve Type
Hose Bibb
Push-to-connect design makes for quick and easy install, requires no solder, glue, unions or tools
Connects to copper, PEX, CPVC or PE-RT pipe
45°F angle allows for no kinks
Lead free DZR brass construction for durability and reliability
Fitting can be rotated on pipe after installation making it easier to work in tight spaces
Designed for potable water distribution
Corrosion resistant to improve longevity
Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
Meets all UPC, IPC, and cUPC requirements
Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
Rated to 200°F and 200 psi
1/2 in. pipe insertion depth equal to 15/16 in.
Dimensions
Inlet Diameter (In.)
1/2
Outlet Diameter (In.)
3/4
Product Depth (in.)
0.8 in
Product Height (in.)
2.41 in
Product Length (in.)
22 in
Product Width (in.)
0.8 in
Details
Application
Water Supply
Compatible Pipe Material
Multi-Purpose
Connection
PTC
Features
Lead Free
Indoor/Outdoor
Indoor
Material
Brass
Maximum Pressure (PSI)
200
Maximum Working Temperature (F)
200
Pack Size
1
Product Weight (lb.)
0.5 lb
Returnable
Non-Returnable
Valve Type
Hose Bibb
