Product reference sheet

RELIABILT Soft-close frameless concealed hinges are suitable for residential and commercial installations that contains frameless cabinet doors. Quality manufacturing standards for the hinges and the soft-close mechanisms ensure smooth and stable running action. The new technique of anyway snap-on attachment is quick and convenient; any of three hinge-to-plate assembly can be performed: front pivot towards back, rear pivot towards front, sideways straight press-on. With 100,000 cycles of proven durability, they are the ideal choice in concealed hinges.

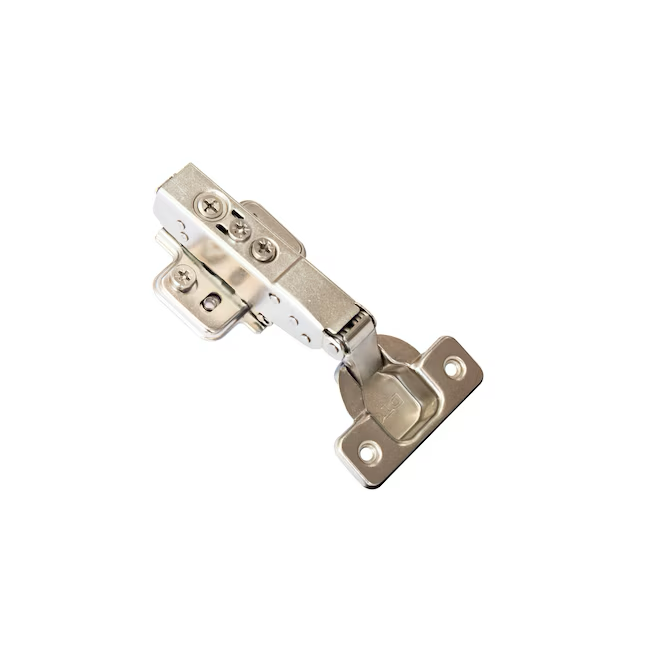

Hinge Type: Concealed half overlay soft-close hinges with Snap-on connection for frameless cabinet


Hinge Color: Nickel plated


Suitable for half overlay cabinet doors; Hinge Opening Degree: +110°


Cabinet Type: Frameless; Anyway Snap-on connection of the hinge to the mounting plate


4-dimensional adjustment: side, depth, height, and door closing speed of cabinet doors with soft-close mechanism


Material: Nickel plated steel


Pack Size: 2 hinges included; Number of Pairs: 1


Hardware Included: 4 pcs of flat head wood screws to mount the hinge cups and 4 pcs of pan head screws to mount the plates; Hinge mounting in the door: 1-3/4” (35mm) diameter x 7/16” (11.5mm) deep hole, 1-3/4” (45mm) spread between mounting screws; Drill Bit Size: 3/32" (2.4 mm) pilot holes.


Limited Lifetime Warranty
