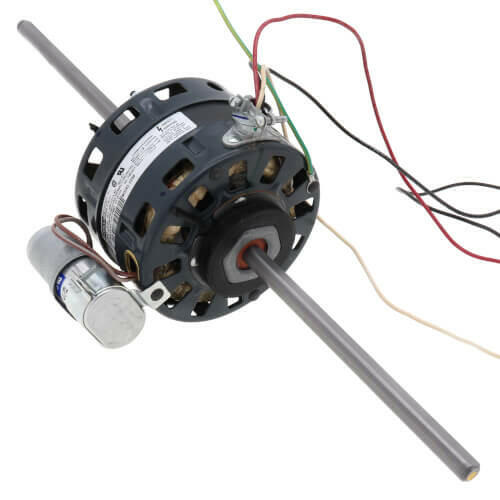

Fasco D2581/5-1/10 HP Fan Coil / Room Air Conditioner Motor 1550 RPM 2 Speed 208/230V 42 Frame Replaces Magnetek 747



Fan Coil - Air-Conditioning - Heating Unit Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Double Shaft with Flat
31" Leads with .5" Strip
Resilient Mounting Ring Lead End and Opposite Lead End


D258 Data Pack



General Specifications



UPC:
815585029397
Weight:
10.00 LB


Packaged Length:
7 IN
Packaged Width:
5.13 IN


Packaged Height:
22 IN



Nameplate Specifications



Output HP:
1/5-1/10 Hp
Output KW:
0.15 kW


Frequency:
60 Hz
Voltage:
208/230 V


Current:
2.8/1.3 A
Speed:
1550 rpm


Service Factor:
1
Phase:
1


Duty:
Continuous
Insulation Class:
B


Frame:
42
Enclosure:
Totally Enclosed


Thermal Protection:
Automatic
Ambient Temperature:
40 °C


UL:
Recognized
CSA:
Y


CE:
N



Technical Specifications



Electrical Type:
Permanent Split Capacitor
Starting Method:
Across The Line


Poles:
4
Rotation:
Clockwise Lead End


Mounting:
Resilient Rings
Drive End Bearing:
Sleeve


Opp Drive End Bearing:
Sleeve
Frame Material:
Na


Shaft Type:
Flat
Overall Length:
19.45 in


Shaft Diameter:
0.500 in
Shaft Extension:
8.00 in
