Product reference sheet

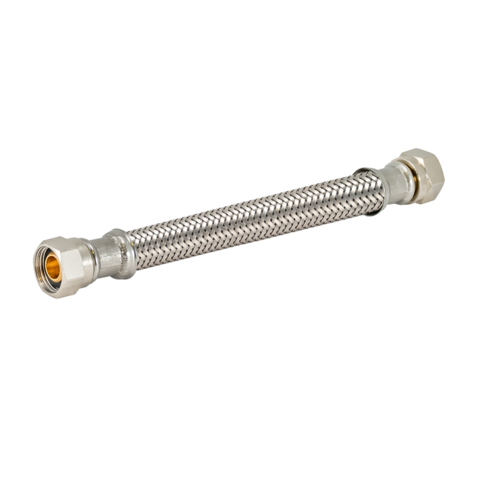

The Steel-Flex faucet connector by Eastman® features a 3/8-inch compression x 3/8-inch compression connection. This high-quality faucet connector is built with a non-toxic PVC core, a multi-filament braided nylon reinforcement, a clear vinyl outer shell and a grade 304 braided stainless steel exterior that is designed to prevent kinking and crimping. It is equipped with full flow brass barbs and nickel-plated solid brass hex nuts. This long-lasting faucet supply line is 6-inches long. The flexible braided stainless steel allows for easy installation in tight spaces. It is UPC, CSA, and NSF approved. Lead-Free Compliant.

Construction: 304 braided stainless steel exterior with a PVC internal hose
Washer: Rubber
Nuts: Nickel-plated brass alloy
Connection: 3/8 in. Comp x 3/8 in. Comp
Length: 16 in.
Working Pressure: 125 psi; Burst Pressure: 1500 psi
Working Temperature: 40-degrees F to 150-degrees F
Max. Temperature: 180-degrees F
Application: Faucet connector
Tubing Diameter 1/8 inch
