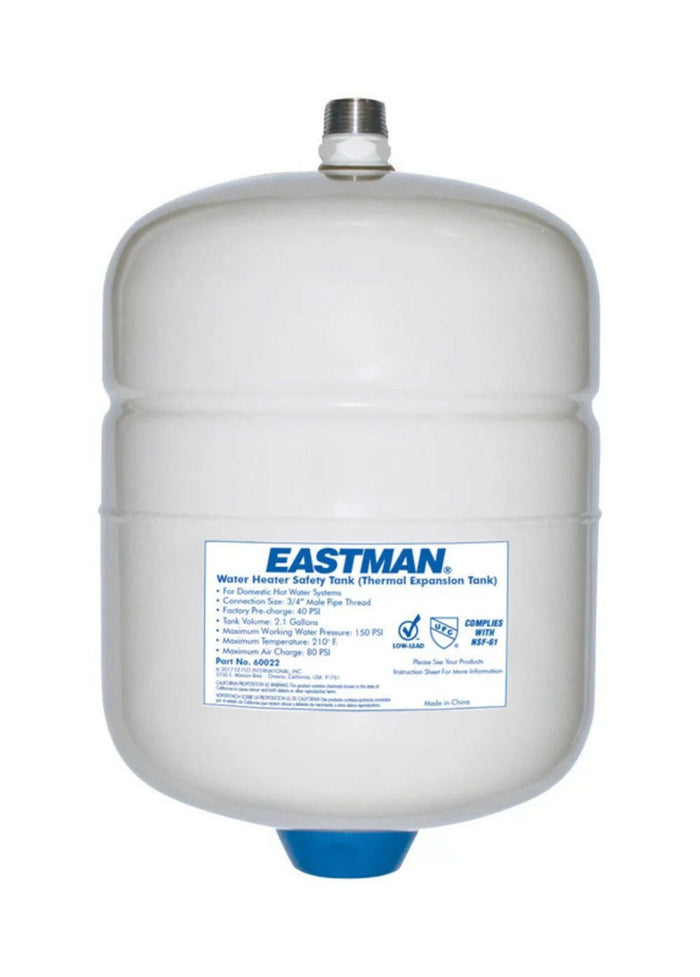

Eastman 2 Gallon Water Heater Expansion Tank
- Brand
- Eastman
- SKU / Item reference
- Item # 61223520 | Model # 60022
- UPC / Barcode
- 091712600220
Supplied specifications
- Dimensions
- Diameter (Inches)
8.3
Tank Discharge Size (Inches)
0.075
Height (Inches)
8.1
Thread Size (Inches)
0.75
Recommended Size (# of Faucets/Showers)
Use with Hot Water Heater
Tank Capacity (Gallons)
2.0 - Material
- Steel
- Color / finish
- White
Product overview
The Eastman 2-Gallon thermal expansion tank is designed to prevent dangerous build-ups of pressure in your water heater tank. The thermal expansion tank stops hot water from backflowing into the cold water line while preventing hot water from escaping through the pressure relief valve and onto the floor. This constant fluctuations in water pressure can be dangerous and they can damage your water heater tank permanently, properly installing a thermal expansion tank can solve all these issues. Recommended for homes with a closed-loop water supply system This product comes with a 6-year limited warranty and is factory pre-charged at 40 psi. Complies with NSF-61 and Lead Free law. UPC approved.
Technical Specifications
Construction: Butyl rubber diaphragm. 304 stainless steel fittings
Dimensions: 12.4 in. L x 8.3 in. W X 8.1 in. H
Connection: 3/4 in. MIP
Max. Operating Temperature: 210° F
Max. Working Pressure: 150 psi
