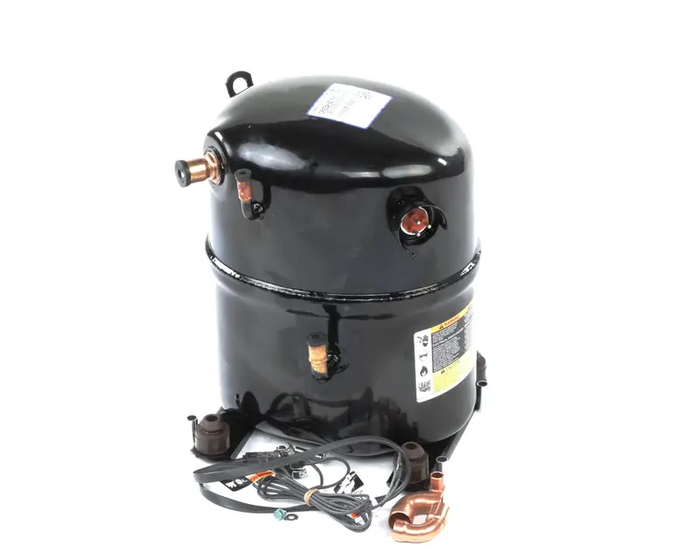

Copeland CR22K6E-PFV-775 22000 BTU R22 208/230-1 Phase Copeland Reciprocating Compressor

Brand: Copeland
SKU / Item reference: Item # 41223564 | Model # CR22K6E-PFV-775

Product overview

Emerson Electric Co. (Copeland) 200 VAC 50 Hz/208/230 VAC 60 Hz 1-Phase, 17300 to 28800 BTU/Hr, R-22/R-407C, Hermetic Reciprocating, Scroll Compressor for Air Conditioner/Heat Pump
The Copeland CRK6 compressor is the leader in reciprocating performance with a broad range for packaged system, geothermal and heat pump applications.
Features & Benefits

The CRK6(E) is Designed for Higher Efficiency Systems and has a Slightly More Rounded Shell Designed for Lower Sound
6th Generation Fixed Speed Reciprocating Compressor

Specifications

Used On Item: Air Conditioner/Heat Pump
Voltage Rating 200 Volt AC 50 Hertz 1-Phase, 208/230 Volt AC 60 Hertz 1-Phase
Capacity 17300 to 28800 BTU/Hour
Refrigerant Type R-22, R-407C
Application High Temperature Air Conditioner/Heat Pump

Specifications

BrandCopeland

AvailabilityAvailable for Delivery

Warehouse AvailabilityCRNE, SALE

ApplicationAC/HP Duty, High Temperature

Capacity22100

Cylinders2

Discharge ConnectionUp

Discharge ID1/2"

Mounting ArrangementA

Rated Voltage (60Hz)208/230

RefrigerantR22

Refrigerant Oil TypePolyol Ester (POE)

Suction ConnectionHorizontal

Suction ID3/4"

Variety TypeReciprocating

Frequency50Hz, 60Hz

Motor Phase1
