Product reference sheet

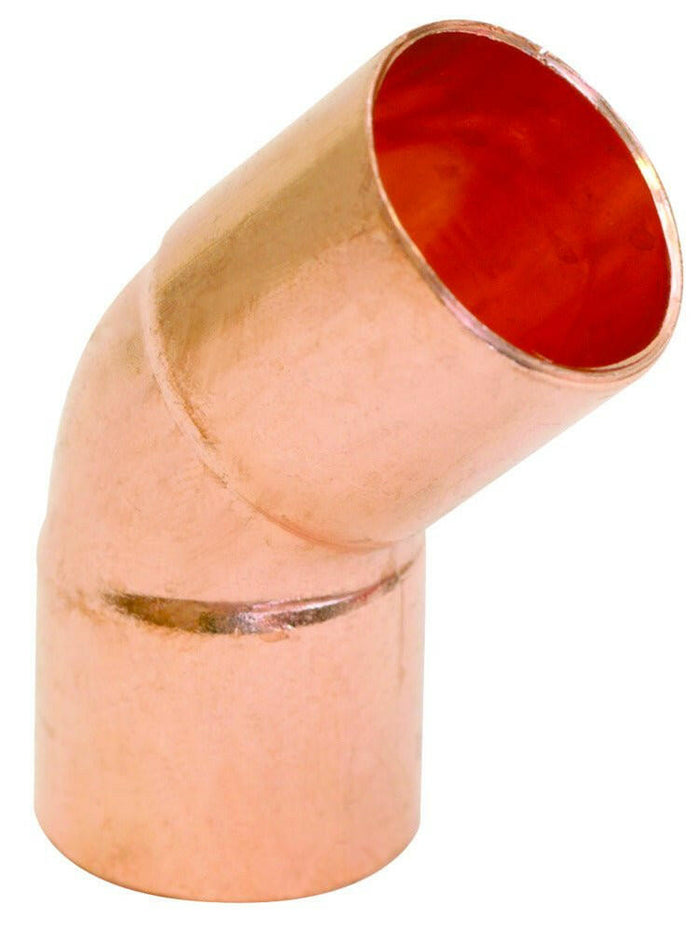

The 3/4-inch C x 3/4-inch C wrought copper pressure 45-degree elbow is for use in residential and commercial plumbing systems. The fitting provides a means of changing the pipeline direction by 45 degrees and features sweat connections. Compatible with all types of copper tubing, this fitting can be used in both above and below ground applications. The copper construction provides long-lasting durability. Lead-free and NSF certified.


Can be used with all types of copper pipe
Works with two 3/4 in. male pipes (nominal size)
Sweat connections
3/4 in. inside diameter and 7/8 in. outside diameter
Lead-Free
Max working pressure of 582 PSI
Temperature range of -20° F to 250° F
