Saber Sales product documents
Product reference sheet
Product information for planning, purchasing and the work ahead.

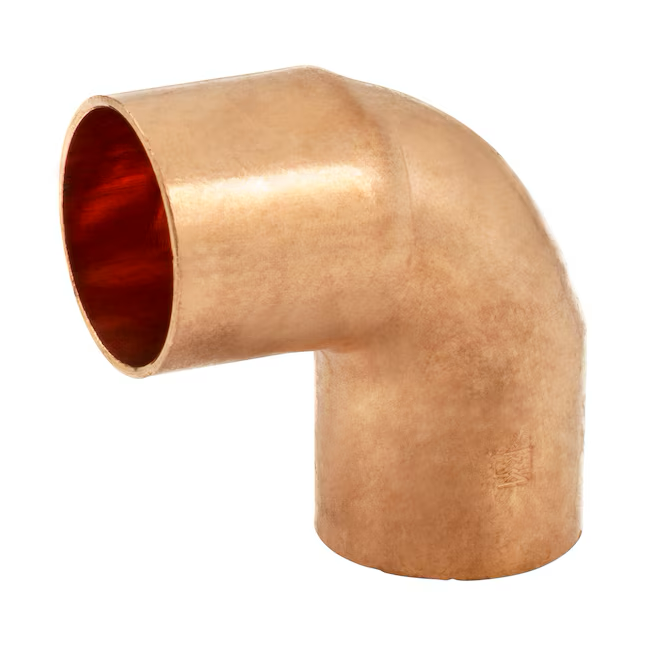

SABER SELECT 3/4-in 90-Degree Copper Short Radius Elbow
- Brand
- Saber Select
- SKU / Item reference
- Item # 81223218 | Model # 85829
- UPC / Barcode
- 01223085829
- Product option
- 25-Pack
Supplied specifications
- Dimensions
- Diameter (End 1)
3/4-in
Pipe Diameter
N/A
Diameter (End 2)
3/4-in - Material
- Copper
- Color / finish
- Copper
Product overview
The 3/4 in. x 3/4 in. cup x cup pressure elbow redirects water line by 90°, relying on force or pressure to maintain flow. Constructed of copper material, this fitting suits hot and cold water pressure distribution systems. It features solder cups and a close-rough radius. It has a 3/4 in. fitting on each end and is dezincification-resistant for foundational integrity. This fitting has a maximum working pressure of 582 PSI at water temperatures ranging from -20 to 100° F.
3/4 in. Inside Diameter and 0.875 in. Outside Diameter
Copper material
Changes the direction of piping by 90 degrees
Relies on force or pressure to maintain flow
(2) 3/4 in. fittings
Solder connections
Dezincification resistant
582 PSI maximum working pressure at water temperatures ranging from -20° F to 100° F
Certified to NSF/ANSI 61
3/4 in. Inside Diameter and 0.875 in. Outside Diameter
Copper material
Changes the direction of piping by 90 degrees
Relies on force or pressure to maintain flow
(2) 3/4 in. fittings
Solder connections
Dezincification resistant
582 PSI maximum working pressure at water temperatures ranging from -20° F to 100° F
Certified to NSF/ANSI 61
