Product reference sheet

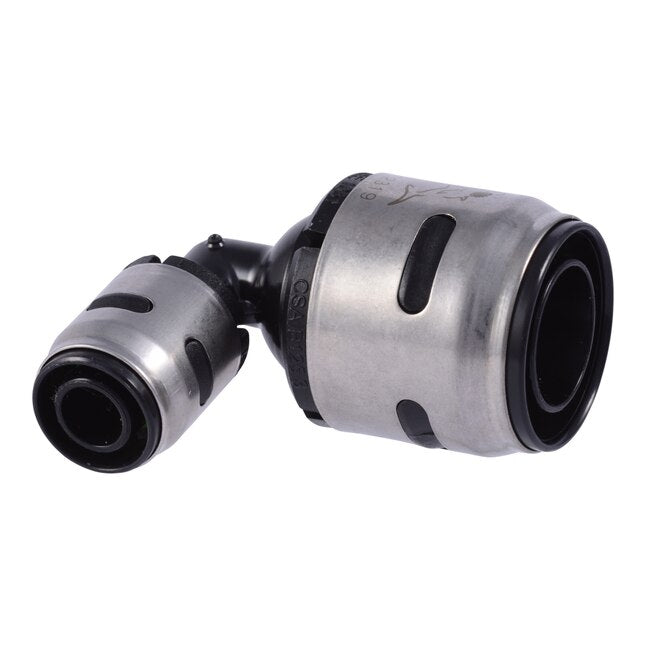

The SharkBite EvoPEX system is a push-to-connect rough-in plumbing solution that requires no special tools, crimp or clamp rings to make a connection. EvoPEX fittings improve efficiency and reduce installation time. Green visual indicator lets you know when pipe is inserted to the proper depth and reduces the risk of installation errors and potential leaks. Made from high-performance acudel polymer, which provides outstanding chemical and chloramine resistance along with excellent anti-decay stability and dimensional stability. SharkBite PEX pipe and EvoPEX fittings are made in the USA and come with a 25-year system warranty.



EvoPEX fittings and SharkBite PEX pipe are made in USA – 25 year system warranty


No special tools, crimp or clamp rings required; reducing install time


Push-to-connect design improves speed and efficiency; green visual indicator ensures proper installation


Compatible with PEX pipe only, non-removable


Fittings are rated up to 80 PSI at 200 degrees F, 100 PSI at 180 degrees F, and 160 PSI at 73.4 degrees F


Fittings are rated up to 160 PSI at 73.4 degrees F, 100 PSI at 180 degrees F, and 80 PSI at 200 degrees F


Certified to ASSE 1061 standards, listed to ASSE 1061, NSF/ANSI 61, NSF 372, by IAPMO
