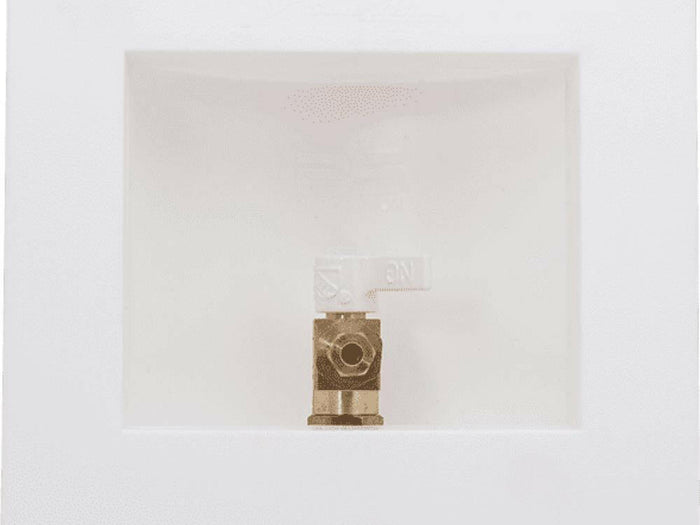

SharkBite 1/2 in. x 1/4 in. Compression Brass PEX Crimp Ice Maker Outlet Box
- Brand
- SharkBite
- SKU / Item reference
- Item # 12230744 | Model # 25740
- UPC / Barcode
- 697285257405
Supplied specifications
- Material
- Plastic
- Color / finish
- White
Product overview
The SharkBite PEX barb icemaker box provides quick and safe water supply shutoff for icemaker and connects to PEX pipe with either a stainless steel clamp or copper crimp ring system.
Lead free DZR brass construction for durability and reliability
Forward mounted valves give easy access for on/off operation
Can be inverted for top mount and center drain option
Extended mounting flange provided
Quarter-turn shut-off with 1/4 in. compression outlet.
Snap-on faceplate accommodates up to 3/4 in. drywall.
Minimum working temperature 33°F at 160 psi. Maximum working temperature 200°F at 80 psi.
Lead free DZR brass construction for durability and reliability
Forward mounted valves give easy access for on/off operation
Can be inverted for top mount and center drain option
Extended mounting flange provided
Quarter-turn shut-off with 1/4 in. compression outlet.
Snap-on faceplate accommodates up to 3/4 in. drywall.
Minimum working temperature 33°F at 160 psi. Maximum working temperature 200°F at 80 psi.
