Product at a glance
Full specifications
Model # MGD96SE090C4XA

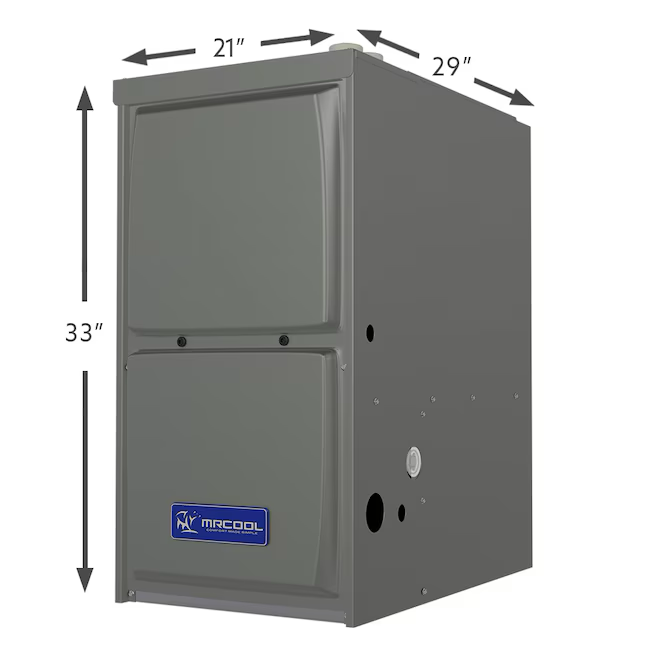

- Dimensions
- Depth (Inches)
29
Width (Inches)
21
Height (Inches)
33 - Color / finish
- Gray
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

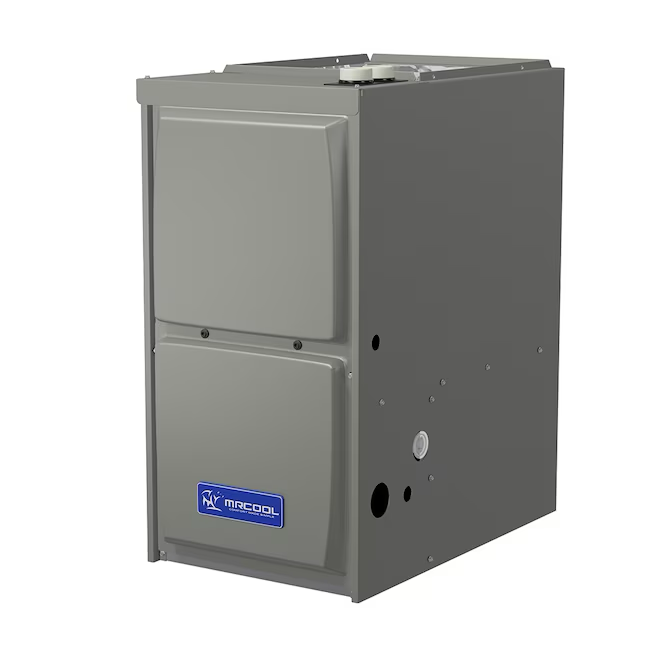

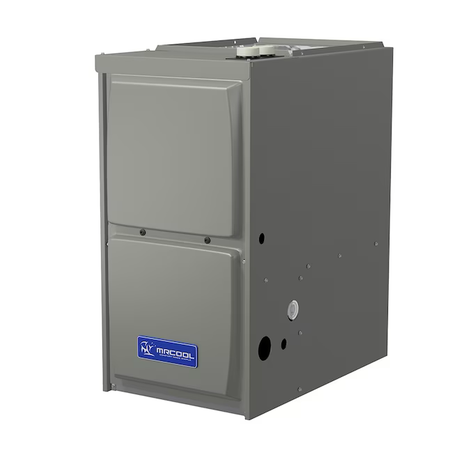

The MRCOOL Signature Series Single-Stage 96% AFUE 90k BTU downflow furnace is a quiet running unit that provides excellent heating performance while remaining energy efficient. With low NOx, a 96% AFUE, and a multi-speed high efficiency blower motor, this furnace will ensure savings on your utility costs. The unit is constructed with an aluminized steel primary heat exchanger that is crimped and non-welded, resulting in a durable build and finish. Ignition is smooth thanks to the aluminized steel inshot burners and long-lasting silicon nitride ignitor. The single stage gas valve ensures heating is delivered quickly to your home. In order to ease the installation process, the unit offers left or right utility connections and is design certified for direct and non-direct vent applications. It can be easily vented with PVC pipe and features a compact 33-inch design with standardized widths for an easy coil fit. An optional LP kit is also available if needed. Your HVAC technician will appreciate the easily removable slide out blower design that makes maintenance even easier. This downflow furnace is backed by a lifetime warranty on the heat exchanger and a 10-year parts warranty.
-
Multi-speed high efficiency (constant torque) blower motor
-
Self-diagnostics saves last 10 fault codes regardless of power interruption
-
Standardized widths for easy coil fit
-
Downflow configuration
-
Single stage gas valve
-
Optional LP kit or high altitude LP conversion kit purchased separately
-
Easily removable slide out blower design
-
10-Year registered parts warranty
-
Aluminized steel in shot burners for smooth ignition
Technical information
Specifications
- Brand / manufacturer
- MRCOOL
- SKU
- Item # 21223961 | Model # MGD96SE090C4XA
- Product category
- Furnaces
- Item weight
- 114.0 lb
- Dimensions
- Depth (Inches)
29
Width (Inches)
21
Height (Inches)
33 - Color / finish
- Gray
- Product location
- Aisle: Trailer | Bay: 1
- Saber exclusive
- No
- Technical specifications
- Air Delivery Configuration
Downflow
Insulation Material
Foil Faced Fiberglass
Amperage
8.4
Maximum BTU Input
88000
CFM@.5 ESP (CFM)
1600
Maximum BTU Output
86000
Efficiency Percentage (Percentage)
96
Number of Stages
1
Fuel Type
Natural gas
Thermostatic Control
Yes
Furnace Venting Type
Direct vent
Variable Speed
No
Housing Material
Steel
Voltage (Volts)
120
Ignition
Hot surface igniter
Product resources
Guides, documents & data sheets
Shipping & pickup
Pickup
Pickup availability depends on the product and location. Check the options above or contact our team with your SKU.
Call (915) 598-8598 →Warranty, returns & product notices
- Manufacturer warranty
- 10-Year
- Return eligibility
- Non-Returnable
- California Proposition 65
- Yes
