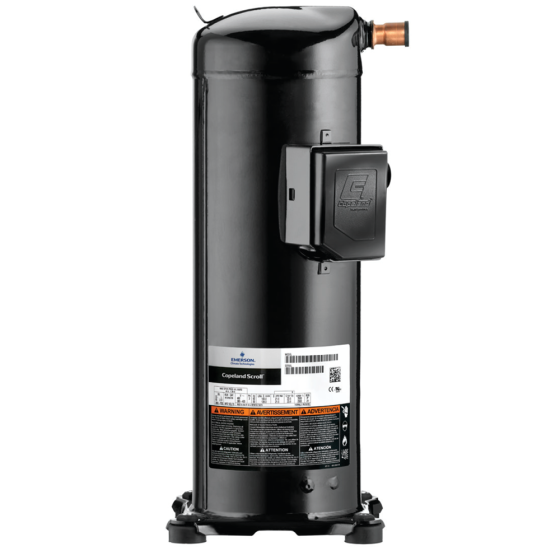

Copeland Hermetic Scroll Compressor R22, 57,000BTU, 460Vac, Three Phase
- Brand
- Copeland
- SKU / Item reference
- Item # 41223586 | Model # ZR57K3E-TFD-950
Supplied specifications
- Color / finish
- Black
Product overview
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 57,000• Refrigerant: R22• Connection Type: Screw Terminals• Oil: POE (Polyol Ester)• Voltage: 460Vac• Three Phase• Capacitor Rating: Not Required (Compressor is Three Phase)• MCC: 12.8• LRA: 62• RLA: 9.1• Hertz: 60• Suction Line Size: 7/8"• Suction Line Height: 11.68"• Discharge Line Size: 1/2"• Discharge Line Height: 16.13"
Electrical
Hertz
60
Phase
3
RLA
9.1
Voltage
460
Specification
BTU Rating
56 to 60kBTU
Oil
POE (Polyester)
Suction Line Height
11.68"
Discharge Line Height
16.13"
Discharge Line Size
1/2"
BTU Output
57000
Compressor Type
Scroll
Refrigerant
R22
Safety Standards
California Prop 65
Yes
Weights and Dimensions
Operating Weight (lbs)
88
Exterior Dimensions (D) (inches)
14.500000
Exterior Dimensions (W) (inches)
13.000000
Exterior Dimensions (H) (inches)
20.500000
Shipping Weight (lbs)
118.000000
Warranty
Country of Origin
United States
• Compressor Type: Scroll• BTU Rating: 57,000• Refrigerant: R22• Connection Type: Screw Terminals• Oil: POE (Polyol Ester)• Voltage: 460Vac• Three Phase• Capacitor Rating: Not Required (Compressor is Three Phase)• MCC: 12.8• LRA: 62• RLA: 9.1• Hertz: 60• Suction Line Size: 7/8"• Suction Line Height: 11.68"• Discharge Line Size: 1/2"• Discharge Line Height: 16.13"
Electrical
Hertz
60
Phase
3
RLA
9.1
Voltage
460
Specification
BTU Rating
56 to 60kBTU
Oil
POE (Polyester)
Suction Line Height
11.68"
Discharge Line Height
16.13"
Discharge Line Size
1/2"
BTU Output
57000
Compressor Type
Scroll
Refrigerant
R22
Safety Standards
California Prop 65
Yes
Weights and Dimensions
Operating Weight (lbs)
88
Exterior Dimensions (D) (inches)
14.500000
Exterior Dimensions (W) (inches)
13.000000
Exterior Dimensions (H) (inches)
20.500000
Shipping Weight (lbs)
118.000000
Warranty
Country of Origin
United States
