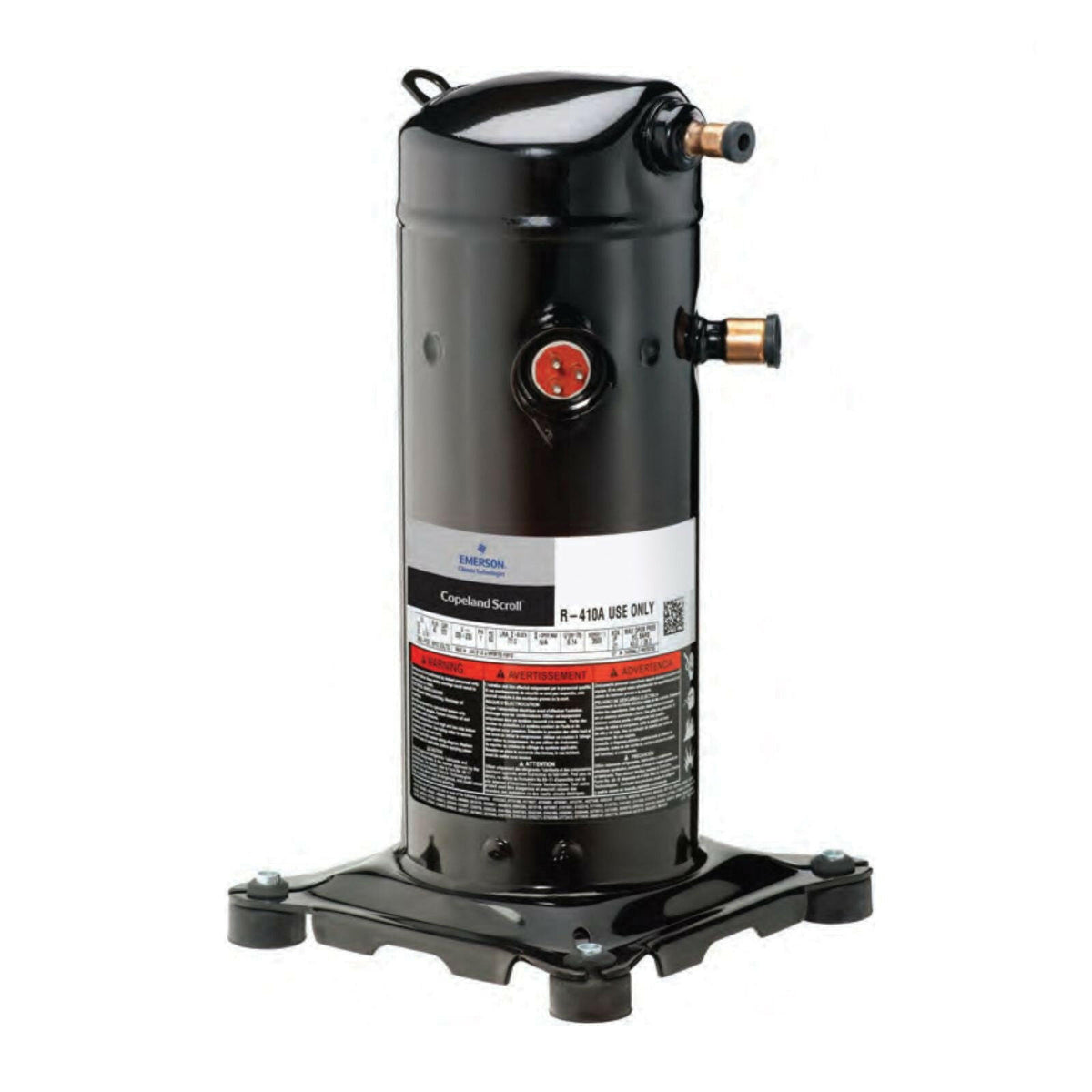

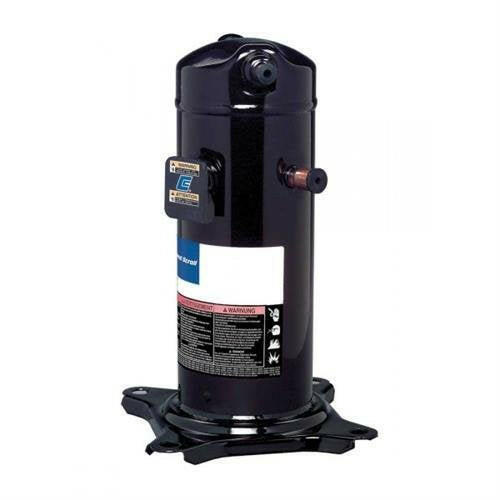

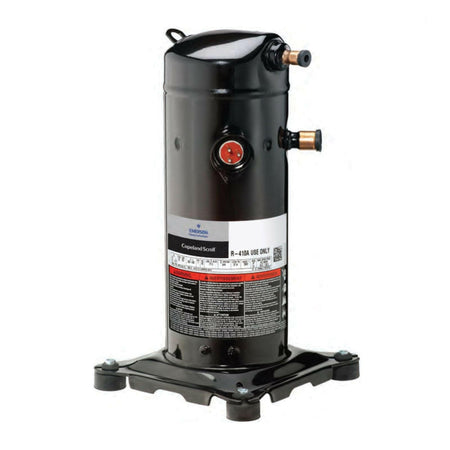

COPELAND™ ZP31K5E-PFV-830 Copeland ZP31K5E-PFV-830 Single Phase Scroll Compressor - 31,100-42,500 BTU

Copeland™ Scroll Compressor, Series: ZP, 31000 Btu/hr BTU, 2.5 ton, 3/4 in Stub Suction Line, 1/2 in Stub Discharge Line, 459 - 525 lb/hr, 3.65 cu-ft/min, 208 - 230 VAC, 9.1 A, 3060 W, 2-1/2 hp, R-410A, HFC Refrigerant, 3500 rev/min Speed, 69 - 74 dBA, 10.2 - 21.3 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45-50 deg F Evaporator, 100-130 deg F Condensing, 65-70 deg F Return Gas, 85-115 deg F Liquid, 9.56 in L x 9.56 in W x 15.27 in H

• Capacitor run-permanent split capacitor motor type
• Internal inherent protection-one-protector (line break) Use with contactor
• Compressor family Series
• Model variation
• 70% fewer moving parts
• Ability to start under any system load, without start components
• Compact, lightweight design
• No complex internal suction and discharge valves for quieter operation and higher reliability
• Axial and radial compliance allow the scroll members to separate in the presence of liquid refrigerant, thus providing protection against liquid damage
• Operate at lower sound and vibration levels than traditional compressors
• Easy to service and maintain due to their compact size and lightweight, simple design
• Engineered for optimum performance with today's chlorine-free refrigerants
• 25 oz initial oil charge, 21 oz oil recharge
• 124.5 cu-in internal free volume
• 7.5 in L x 7.5 in W x 16.02 in H mounting
• 11.6 A-rated load, 73 A locked rotor, 16.3 A minimum circuit and 13 A maximum operating
• 1.8 cu-in/rev displacement

Suction Line Size     :     3/4 in StubDischarge Line Size     :     1/2 in StubFlow Rate     :     459 to 525 lb/hrPower Rating     :     3060 W, 2-1/2 hpRefrigerant Type     :     R-410A, HFCSpeed Rating     :     3500 rpmSound Level     :     69 to 74 dBAEER Rating     :     10.2 to 21.3Compressor Oil     :     POE-AK/DA, 3MA/SP32Dimensions     :     9.56 in L x 9.56 in W x 15.27 in H
