Product at a glance
Full specifications
Model # LFN45BM1-U 3/4 R
- Dimensions
- Inlet Diameter
3/4-in
Outlet Diameter
3/4-in
Inlet Size in Inches
3/4-in - Material
- Copper
- Color / finish
- Brass
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

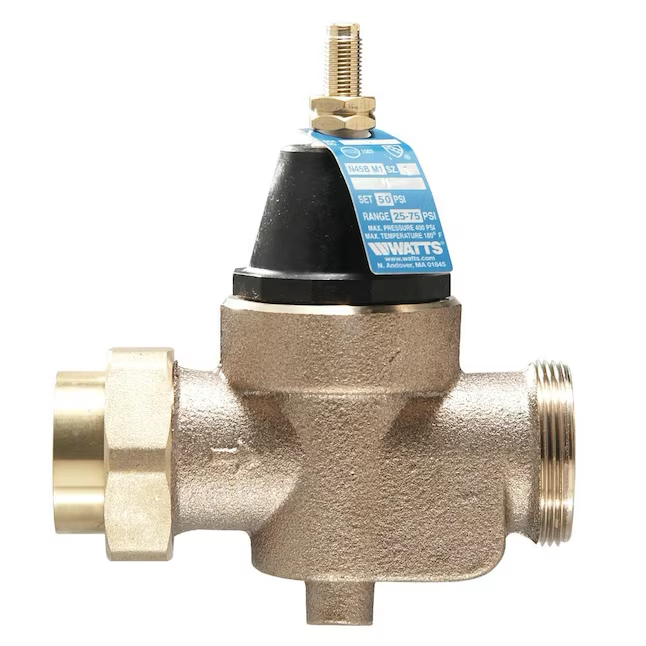

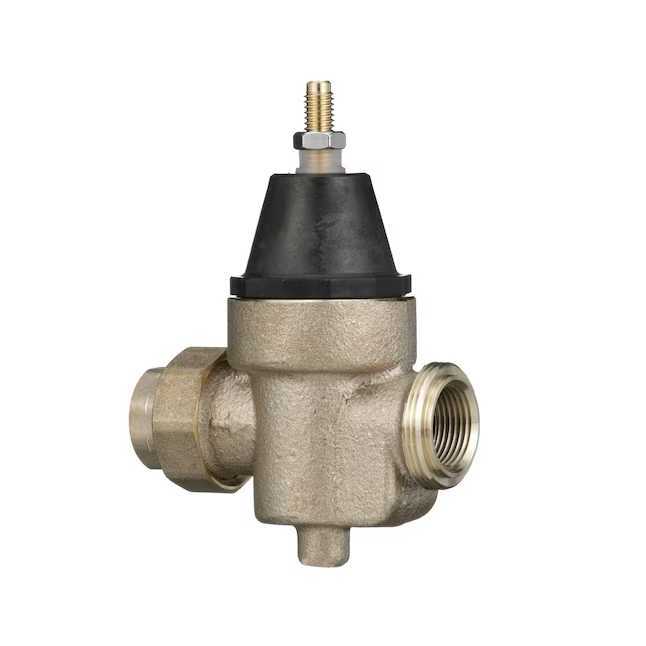

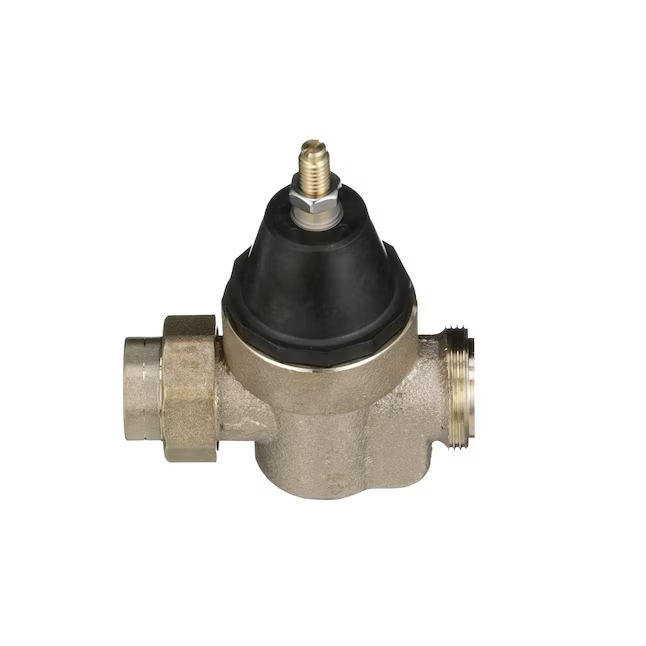

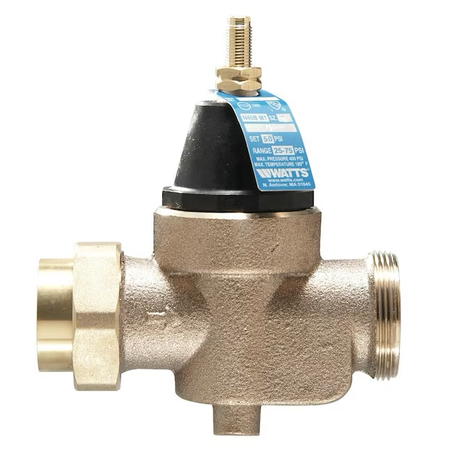

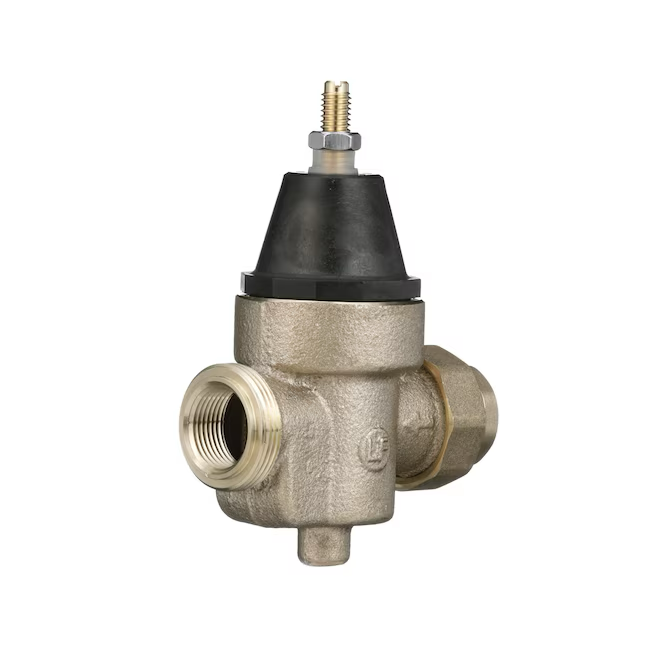

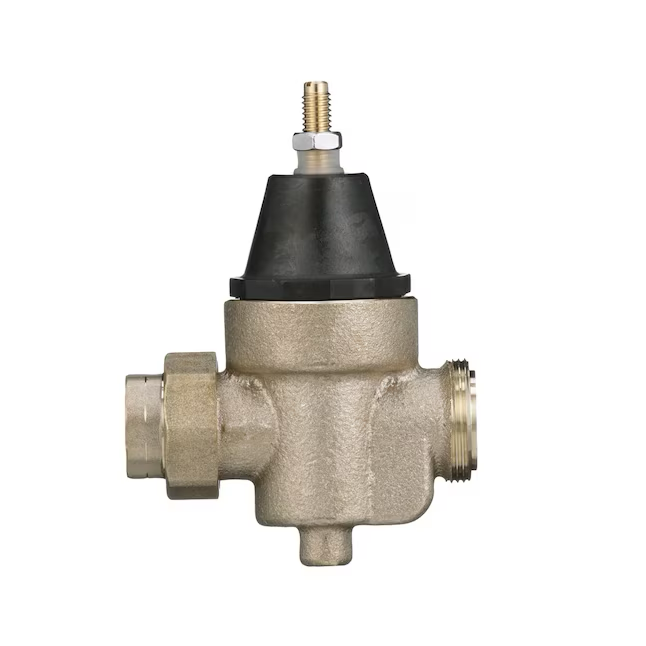

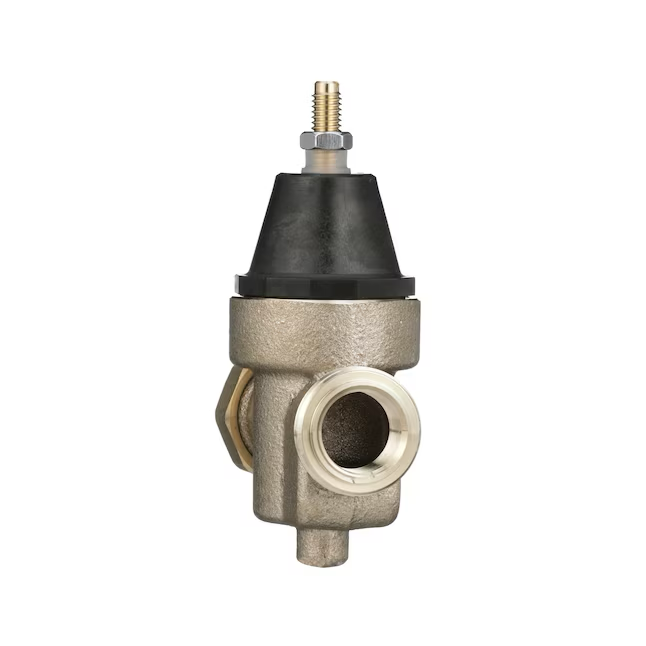

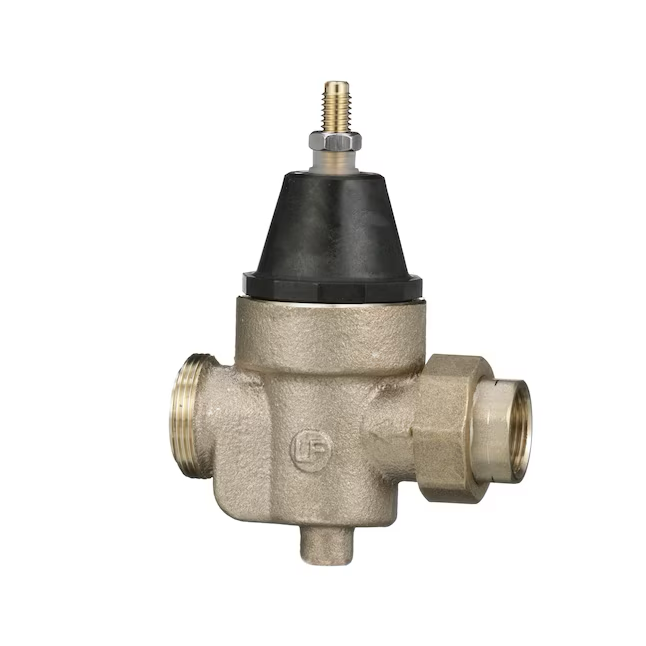

This 3/4 inch water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a bronze body construction, NPT threaded union inlet and NPT female outlet connection, stainless steel integral strainer, thermoplastic seat module, sealed spring cage for waterworks pit installations and thermal expansion bypass. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
-
NPT threaded union inlet and NPT female outlet
-
Integral stainless steel strainer removable for cleaning
-
Thermoplastic seat and cage
-
Sealed spring cage for accessible outdoor or pit installations
Technical information
Specifications
- Brand / manufacturer
- Watts
- SKU
- Item # 31223573 | Model # LFN45BM1-U 3/4 R
- UPC / barcode
- 098268703870
- Product category
- Plumbing Valves
- Item weight
- 1.0 lb
- Dimensions
- Inlet Diameter
3/4-in
Outlet Diameter
3/4-in
Inlet Size in Inches
3/4-in - Material
- Copper
- Color / finish
- Brass
- Style
- Pressure reducing valve
- Saber exclusive
- No
- Technical specifications
- Multi-Purpose
Product resources
Guides, documents & data sheets
Shipping & pickup
Pickup
Pickup availability depends on the product and location. Check the options above or contact our team with your SKU.
Call (915) 598-8598 →Warranty, returns & product notices
- Manufacturer warranty
- 1-year limited
- Return eligibility
- 30-Day
- California Proposition 65
- Yes
