Product at a glance
Full specifications
Model # QO220CP
- Dimensions
- Power Capacity
20-amp
Width Measurement
1-1/2-in - Color / finish
- Black
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

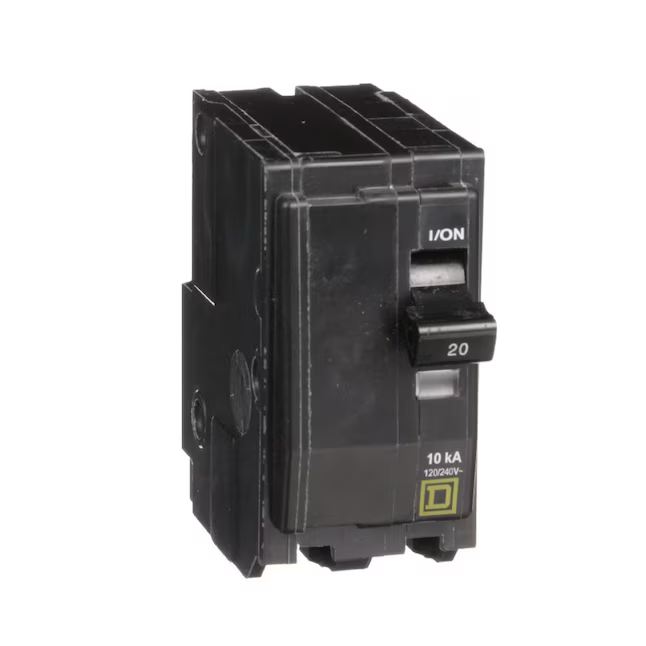

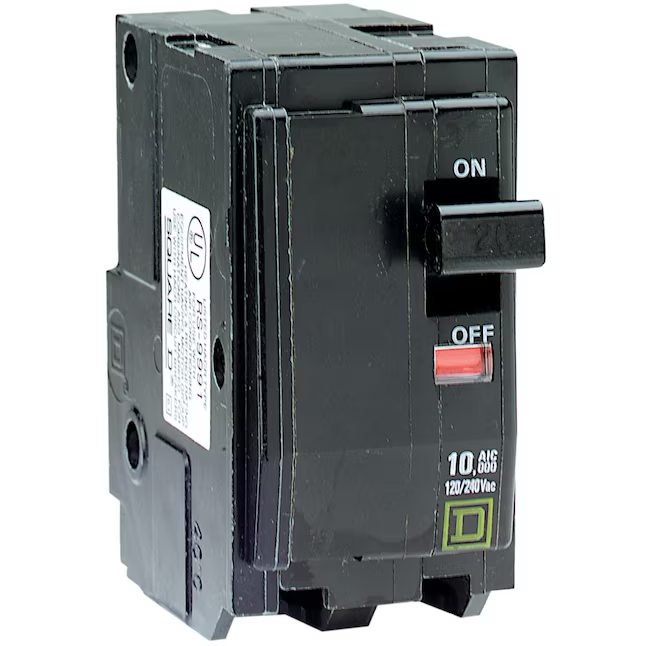

The Square D by Schneider Electric QO 20 Amp Two-Pole Circuit Breaker is intended for overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive Visi-Trip indicator. When a QO Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between in OFF and in ON and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection.
-

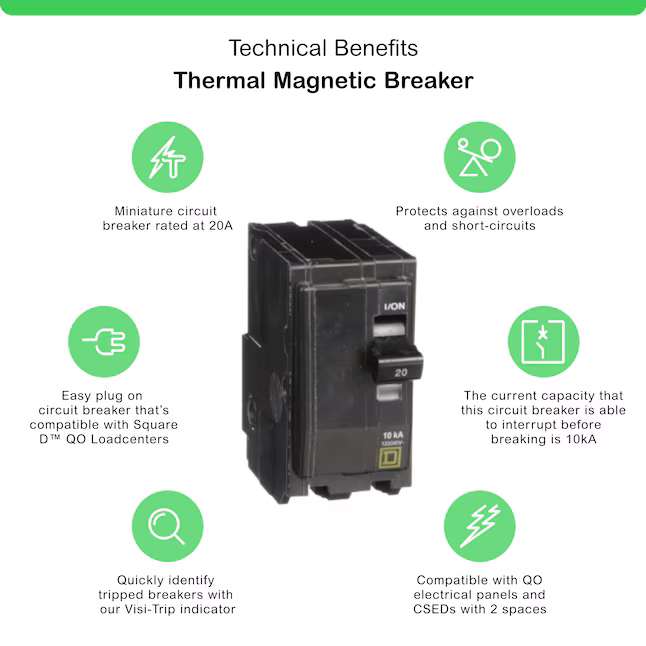

Designed to protect against overloads and short-circuits
-
Quickly identify tripped breakers with our Visi-Trip indicator
-

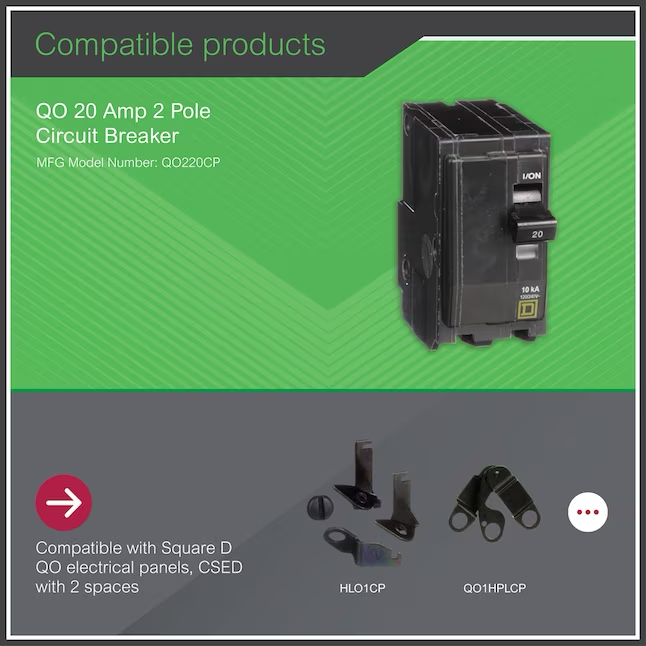

Compatible with Square D QO electrical panels, CSED with 2 spaces
-
Square D QO 20 Amp two-pole circuit breaker
-
Plug-on design, easy to install
-
Compatible with Square D QO breaker boxes, CSED's and NQOD panel boards
-
This breaker needs 2 spaces in a breaker box for installation
-
120/240-Volt AC
-
10,000 AIR
Technical information
Specifications
- Brand / manufacturer
- Square D
- SKU
- Item # 81223351 | Model # QO220CP
- UPC / barcode
- 047569838026
- Product category
- Circuit Breakers
- Item weight
- 0.8 lb

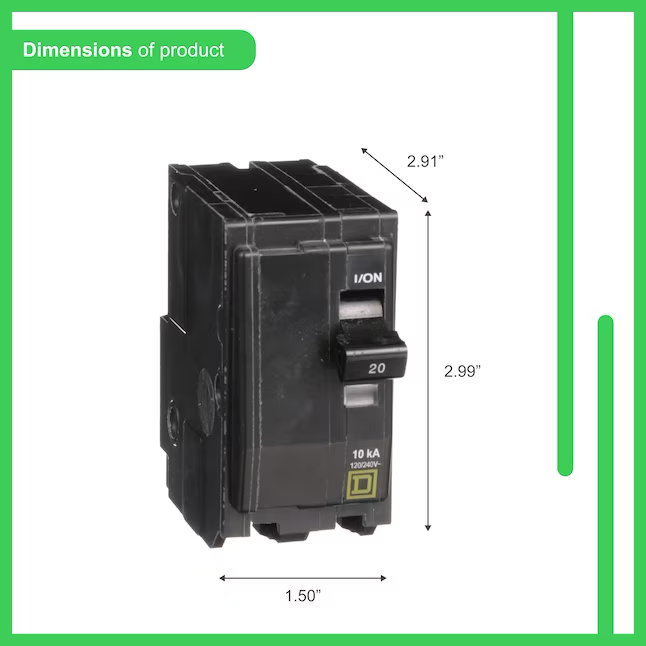

- Dimensions
- Power Capacity
20-amp
Width Measurement
1-1/2-in - Color / finish
- Black
- Style
- Standard trip
- Amperage
- 20-Amp
- Saber exclusive
- No
- Technical specifications
- Circuit Breaker Voltage
240
Phase
Single phase (120/240)
Ground Fault Protection
No self test
Plug-On Neutral
No
Interrupting Amp Listing (Amps)
10000
Surge Protection
No
Number of Poles
2
