Read shipping policy →Square D Homeline 100-Amp 20-Spaces 40-Circuit Indoor Main Breaker Plug-on Neutral Load Center (Value Pack)
Special Order
Regular price
€140,95
inc. VAT
Select an available option combination to check delivery and pickup.
Ways to get this item
- Shipping
- Est. dispatch in 1–7 business days
- Pickup
- Est. ready in 1–5 business days
Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.
Product at a glance
Full specifications
Model # HOM2040M100PQCVP

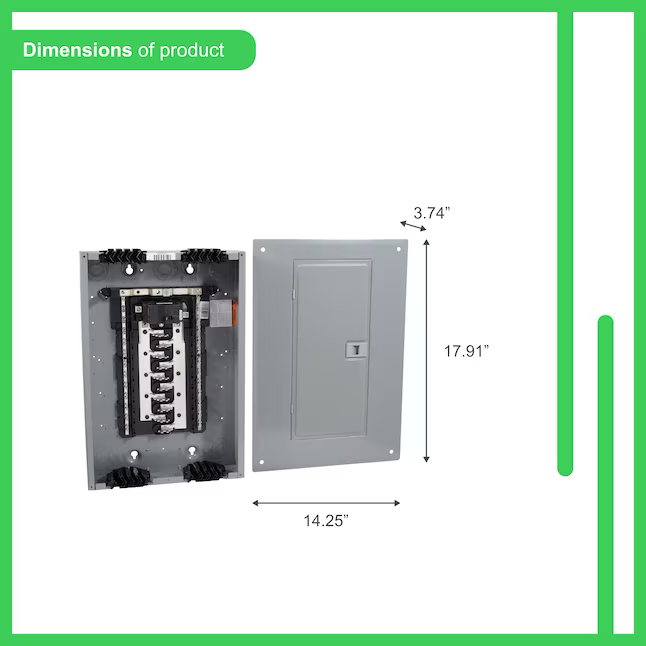

- Dimensions
- Depth (Inches)
3.75
Width (Inches)
14.25
Height (Inches)
20.92 - Color / finish
- Gray
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview
The Square D by Schneider Electric Homeline Value Pack 100 Amp 20-Space 40-Circuit Indoor Convertible Main Breaker Qwik-Grip Load Center for Plug-on Neutral breakers includes the cover, a selection of breakers and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.
-
Less wiring, clean gutter, fast installation with Plug-On Neutral
-
Compatible with any Square D Homeline circuit breaker
-
Homeline breakers, cover, and aluminum bus bar included
-
Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
-
Each pole space accepts full-size, tandem or quad breakers
-
Ground and neutral bars accept up to (3) #10-14 equipment grounds
-

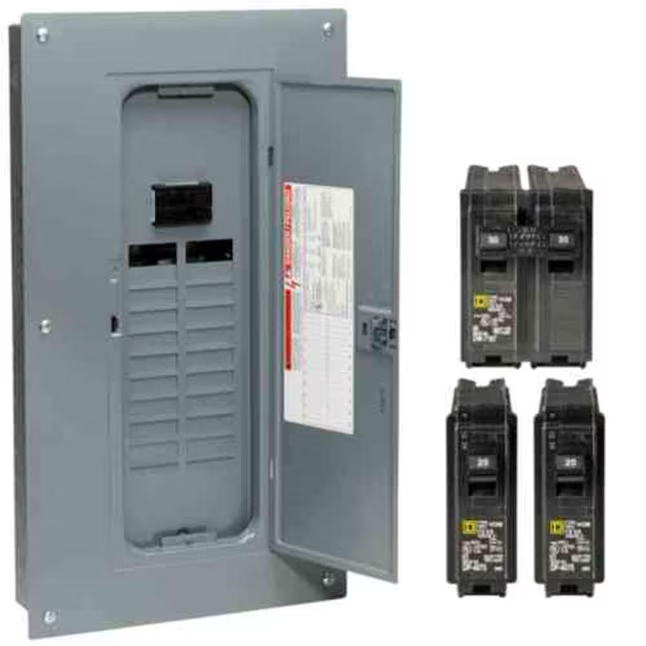

Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers, (1) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
-
Accommodates plug-on secondary surge arrestor (sold separately)
-
Overhead/underground feed simply by rotating the device before installing
Technical information
Specifications
- Brand / manufacturer
- Square D
- SKU
- Item # 81223326 | Model # HOM2040M100PQCVP
- UPC / barcode
- 785901639343
- Product category
- Breaker Boxes
- Item weight
- 5.0 lb
- Dimensions
- Depth (Inches)
3.75
Width (Inches)
14.25
Height (Inches)
20.92 - Color / finish
- Gray
- Style
- Breaker Box
- Amperage
- 100-Amp
- Saber exclusive
- No
- Technical specifications
- Amperage
100
Orientation
Over/Under
Buss Bar Construction
Aluminum and copper
Paintable
Yes
Circuits
40
Phase Type
Single phase (120/240)
Cover Included
Yes
Plug-On Neutral
Yes
Feed-Through Lugs
No
Usage
Service entrance
Ground Bar Installed
No
Use Location
Indoor
Mounting Type
Combination
Value Pack
Yes
Number of Spaces
20
Product resources
Guides, documents & data sheets
Before you order
Product questions
What dimensions are listed for this option?
Depth (Inches)
3.75
Width (Inches)
14.25
Height (Inches)
20.92
3.75
Width (Inches)
14.25
Height (Inches)
20.92
Product dimensions do not establish installation clearances. Check the exact model’s installation instructions.
