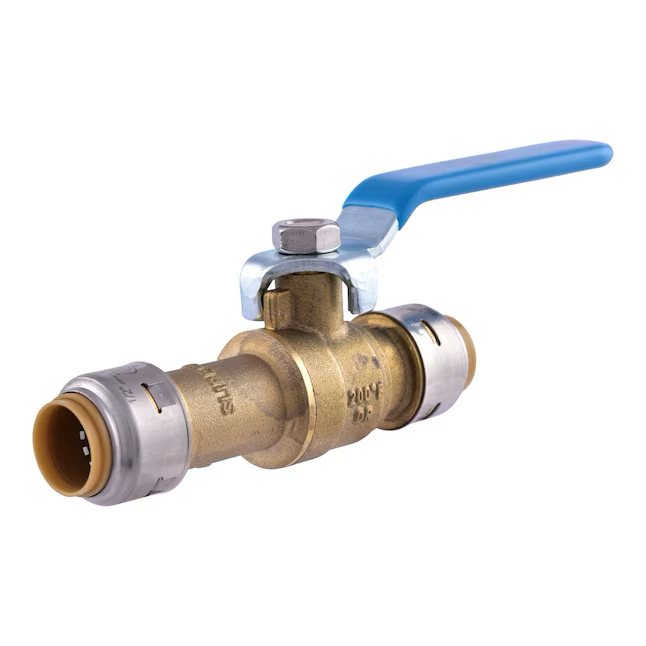

SharkBite Max 1/2 in. Brass Push-to-Connect Slip Ball Valve
- Brand
- SharkBite
- SKU / Item reference
- Item # 12230583 | Model # UR24735Z
- UPC / Barcode
- 697285069732
Supplied specifications
- Dimensions
- Inlet Diameter
1/2-in
Outlet Diameter
1/2-in
Inlet Size in Inches
1/2-in - Material
- Brass
Product overview
SharkBite Max slip ball valves are ideal for replacing or adding a new ball valve into an existing line to shut-off water flow for servicing and making repairs. Slip feature allows for two inches of rigid copper or CPVC pipe to be cut out of an existing line and connected back together by using the disconnect tool to slide the fitting back to the other end of pipe. Innovative push-to-connect design makes for quick and easy installation. Good item to keep on hand for freezes or other emergency repairs.
Spec Sheet | Install Instructions
Features and benefits:
Ideal for freezes and emergency repairs.
Compatible with copper and CPVC pipe only.
Half the insertion effort, double the burst pressure.**
Can be installed on wet lines and pressure tested immediately.
Stainless steel retainer adds strength and durability.
High-performance DZR lead-free brass body.
No special tools, crimping, soldering or glue required.
Can be rotated after installation.
Rated to 200°F and 250 psi.
25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
