Product at a glance
Full specifications
Model # 23858-0045
- Dimensions
- Inlet Diameter
3/4-in
Outlet Diameter
3/4-in
Inlet Size in Inches
3/4-in - Material
- Brass
- Color / finish
- Brass
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

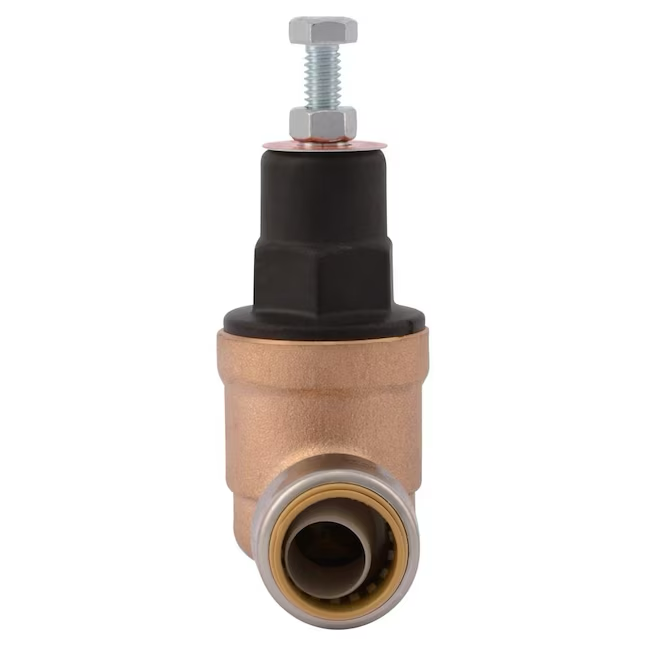

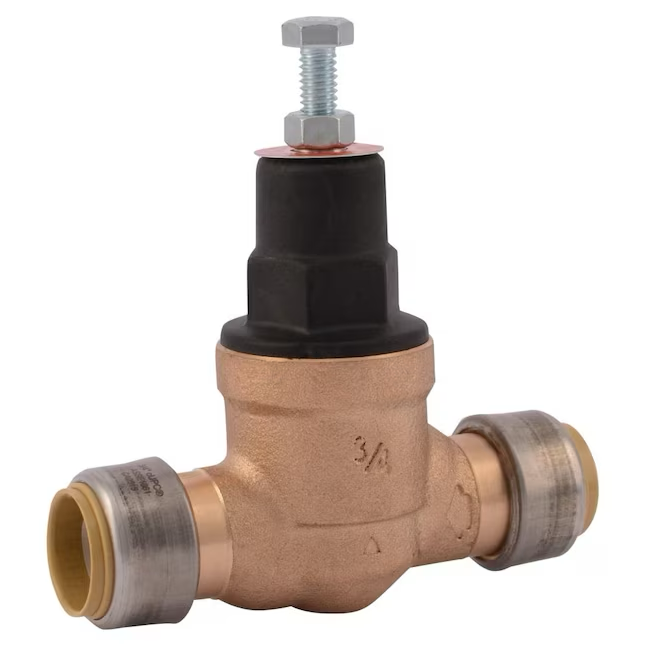

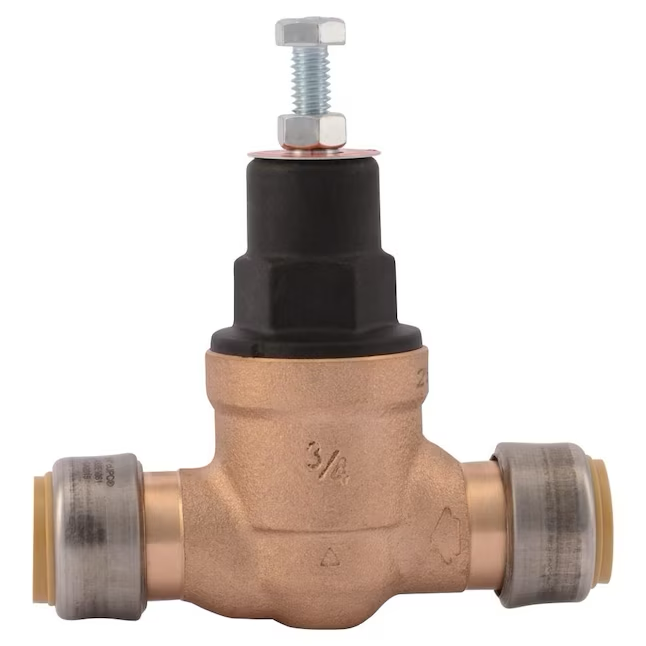

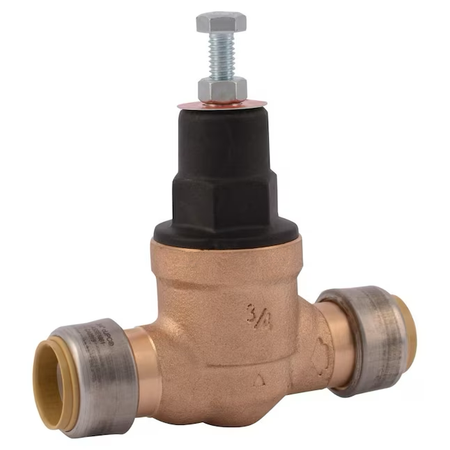

The 3/4-in SharkBite pressure-regulating valve is designed to reduce incoming water pressure to a safe pressure to protect plumbing components. They also help to prevent pressure surges from entering the household from the main line. High pressure can cause damage to appliances and plumbing. A pressure regulator should be installed after the main line to help protect plumbing. The SharkBite pressure regulator is a half-cartridge based pressure reducing and regulating valve with a lead-free bronze body. The valve resembles traditional regulators with a spring chamber and an adjusting screw but offers the high performance of a cartridge based valve. The valve is compatible with copper, PEX, CPVC or PE-RT pipes. Just insert the pipe and the fittings stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily removed and reused.
-
Solid lead-free bronze construction
-
Compatible with any combination of 3/4-in copper, PEX, CPVC, or PE-RT pipes
-
Factory set to regulate flow to a safe 45 PSI, adjustable from 10 to 70 PSI
-
Integrated internal by-pass mechanism
-
Cartridge based design allows for quick and easy service
-
Designed for use where inlet pressure does not exceed 400 PSI
-
Suited for hot (up to 180 degree) or cold water service
Technical information
Specifications
- Brand / manufacturer
- SharkBite
- SKU
- Item # 12230632 | Model # 23858-0045
- UPC / barcode
- 697285238589
- Product category
- Plumbing Valves
- Item weight
- 1.0 lb
- Dimensions
- Inlet Diameter
3/4-in
Outlet Diameter
3/4-in
Inlet Size in Inches
3/4-in - Material
- Brass
- Color / finish
- Brass
- Style
- Pressure regulator valve
- Product location
- Aisle: 2 | Bay: 1
- Saber exclusive
- No
- Technical specifications
- Multi-Purpose
Product resources
Guides, documents & data sheets
Shipping & pickup
Pickup
Pickup availability depends on the product and location. Check the options above or contact our team with your SKU.
Call (915) 598-8598 →Warranty, returns & product notices
- Manufacturer warranty
- 2-year limited
- Return eligibility
- 30-Day
- California Proposition 65
- Yes
