Product reference sheet

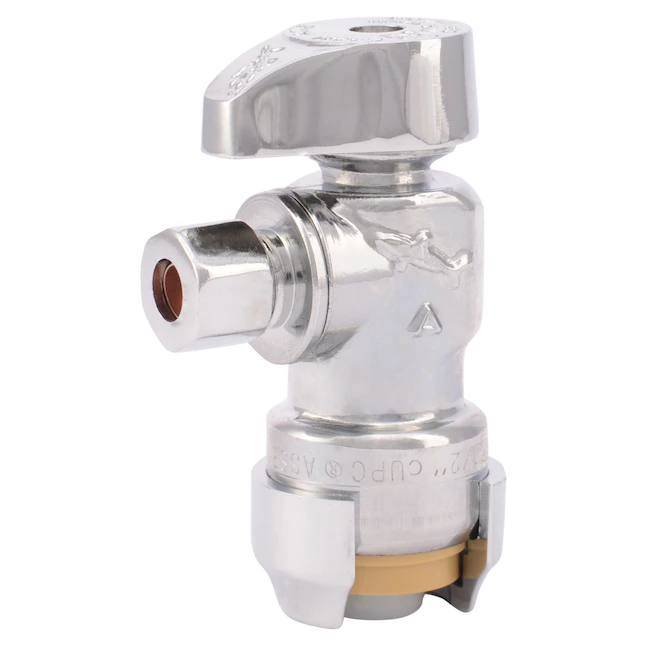

SharkBite push-to-connect stop valves are the fastest way to connect to PEX, copper, CPVC, or PE-RT stub outs. These valves control the flow of water to plumbing fixtures including faucets, toilets, dishwashers, washing machines, and ice makers. Braided supply lines, PEX, or copper tubing can be used to connect the outlet of the valve to plumbing fixtures. No soldering, clamps, unions, glue, or special tools are required. Simply insert the pipe and the teeth bite down and grip tight, while a specially formulated O-ring compresses to create a watertight seal. Changes can easily be made by rotating the fitting after installation. Removing the fitting is just as fast using a disconnect tool so fittings and valves can be easily changed or reused designed with stainless steel gripping teeth for a secure connection, chlorine-resistant O-ring for a long-lasting seal.


Spec Sheet   |    Install Instructions


Features and benefits:




Fastest way to connect stop valve to PEX, copper, CPVC stub outs


Requires no special tools to install on hot or cold stub outs


Works on wet lines, rotatable after installation, and removable


Push-to-connect fittings are ideal for installation in tight spaces


Rated to 160 degrees Fahrenheit and 125 PSI


Can be installed on wet or dry lines and pressure tested immediately, no waiting on soldered joints to cool or solvents to dry


Chrome-plated exterior body


Low-lead DZR corrosion-resistant brass body


Code approved, IAPMO listed, for details see specifications
