Product details

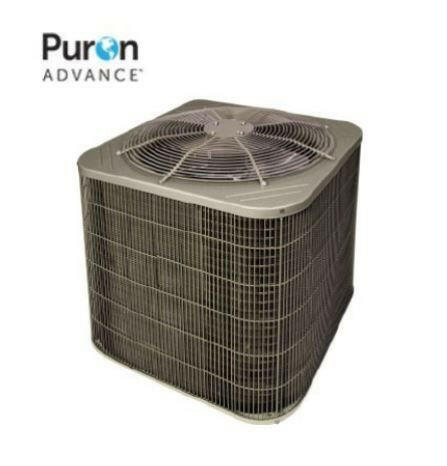

Product overview
Our most energy-efficient, single-stage air conditioner, this model can make a big difference on your electric bill with up to 16.5 SEER2 cooling. This ENERGY STAR® qualified unit easily outperforms many new models as well as the one you may be replacing. And because it's designed, built and backed by Payne, you'll enjoy the comfort for years to come.
- Up to 16.5 SEER2
- Up to 14.5 EER2
- Single-Stage Operation
- As low as 71 decibels1
Experience the comfort and savings of owning one of the top performing, single-stage air conditioners you can buy.
FEATURES & BENEFITS
FEATURES & BENEFITS
- Quiet performance (as low as 71 decibels)1
- Single-stage compressor operation
- Durably built to withstand bad weather and debris
- Designed for corrosion resistance and lasting performance
- 10-Year Parts Limited Warranty*
SPECIFICATIONS
- Efficient, single-stage scroll compressor
- Single-speed fan motor
- System protecting filter drier
- Durable, protective tight wire grille panels allow easy coil cleaning
- Galvanized steel cabinet that includes a weather protective paint for durability
- Compatible with most cooling thermostats
- Lower global warming potential R-454B refrigerant
- Cooling capacity: 1.5–5 tons
| Electrical | |
|---|---|
| Hertz | 60 |
| MCA | 31.1 |
| MOCP | 50 |
| Phase | 1 |
| Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 195 |
| Exterior Dimensions (D) (inches) | 31.187500 |
| Exterior Dimensions (W) (inches) | 31.187500 |
| Exterior Dimensions (H) (inches) | 38.437500 |
| Shipping Weight (lbs) | 215.000000 |
| General | |
|---|---|
| Tier | Payne |
Technical information
Specifications
- Brand / manufacturer
- Payne
- SKU
- Item # 4122133 | Model # PA5SAN56000W
- Product category
- Air Conditioner Condensers
- Item weight
- 202.0 lb
- Color / finish
- Gray
- Product location
- Aisle: Trailer | Bay: 1
- Saber exclusive
- No
