Read shipping policy →Fasco D7748 1/3-HP 208V-230V Condenser Fan Motor
Regular price
€129,95
inc. VAT
Select an available option combination to check delivery and pickup.
Ways to get this item
- Shipping
- Est. dispatch in 1 business day
- Local delivery
- Confirm timing for your address
- Pickup
- Usually ready in 2 hoursEl Paso DC, Warehouse
Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Keep your supplies organized.
Create a branded bin label for this product.
Product details
Product overview

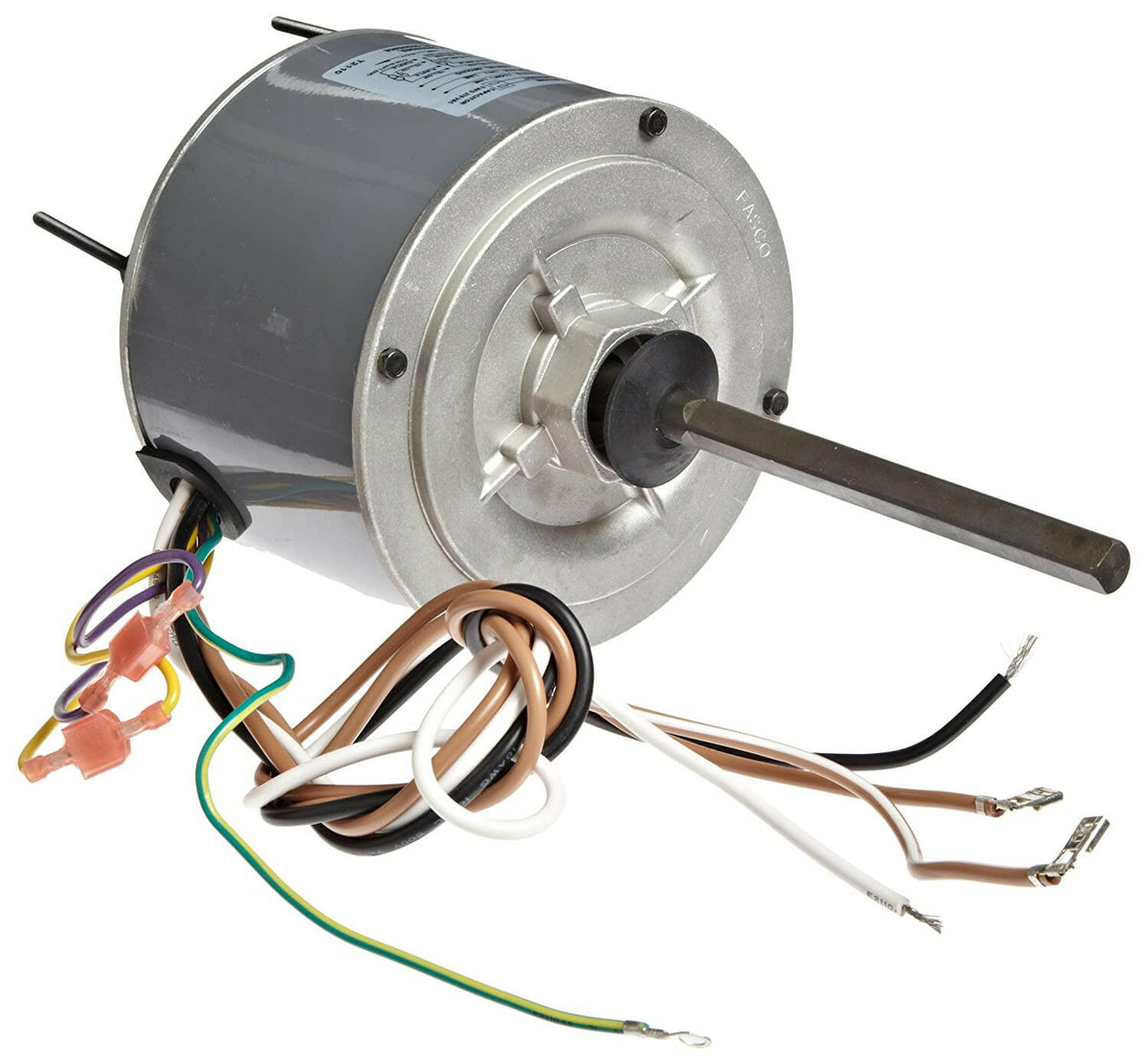

Fasco D7748 1/3 HP 5 5/8" Diameter Condenser Fan Motor 208-230 Volts 1075 RPM
- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Lead End, Enclosed Shell and Shaft End End-Frame, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Lead End, Belly Band
General Specifications
| UPC: | 818508020174 | Weight: | 13.00 LB |
| Packaged Length: | 15 IN | Packaged Width: | 5.63 IN |
| Packaged Height: | 5.63 IN |
Nameplate Specifications
| Output HP: | 1/3 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 2.9 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 48 | Enclosure: | Semi Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 60 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Extended Studs | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Double Flat | Frame Length: | 4.21 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 6.5 in |
Technical information
Specifications
- Brand / manufacturer
- FASCO
- SKU
- Item # 41223997 | Model # D7748
- UPC / barcode
- 818508020174
- Product category
- Motors
- Item weight
- 13.0 lb
- Material
- Steel
