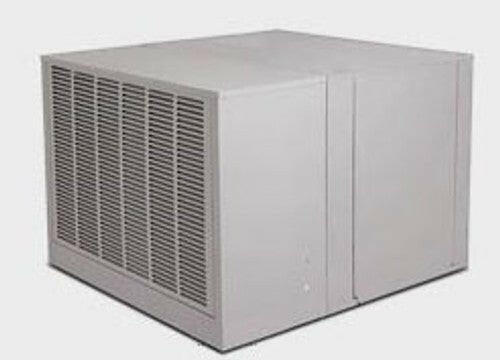

AeroCool® Trophy Residential Evaporative Cooler 8" Rigid Media, Down-Discharge, up to 2,021 CFM

APPLICATIONS

Utilizing single inlet design, the Aerocool® Series provides the ultimate protection available for the longevity of your cooler. Fully lined in a tough plastic shield, the all-metal construction of the wet module is protected from the damaging effects of typical deposits found in most water systems. High efficiency evaporative cooling, low maintenance and long life of the Trophy Series makes this cooler your award winner.

The 8” media is a good economical choice for high efficiency cooling. It provides increased cooling performance over traditional aspen media pads.

FEATURES & BENEFITS

• Maximum CFM: 1,879 @ 0.2 Static Pressure (2,021 @ 0.0 Static Pressure)
• High quality architectural grade Peblar XT® finish
• Pro-Armor: The premier single inlet cooler with polymeric inner structure that completely shields the wet section from corrosive interaction.
• Galvanized sheet steel is zinc coated at weights rated G40 or G90
• Evaporative media is corrugated cellulose material, impregnated with insoluble anti-rot salts and rigidifying saturates.
• Bearings have an L10 bearing life of 39,000 hours
• Electrical service knockouts are 1/2".
• Water supply line is 1/4" O.D. on both sides.
• Bottom pan drain is 3/4" male hose thread.
• All models ship with 120 V. Low Sump Pumps included. 240 V. pumps are available.
• Optional Pro-Shield weatherizing panel inhibits heat loss and cold air from entering your home during the off season.
