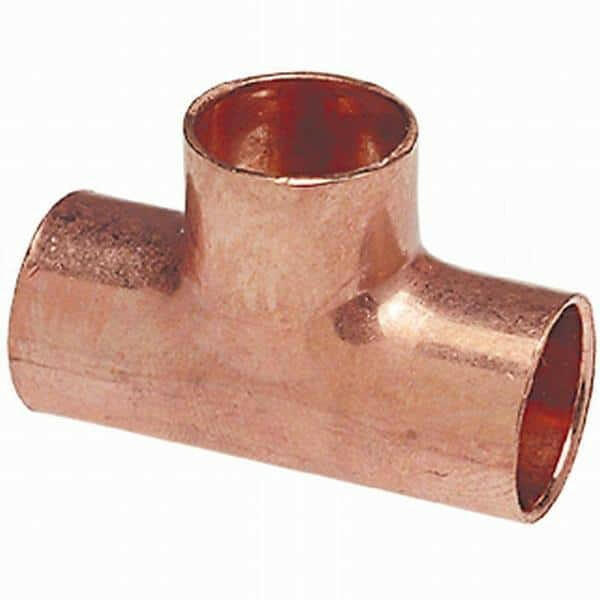

SABER SELECT 1/2-in SWT Copper Tee
- Brand
- Saber Select
- SKU / Item reference
- Item # 81223058 | Model # 85856
- UPC / Barcode
- 01223085856
- Product option
- One
Supplied specifications
- Dimensions
- Diameter (End 1)
1/2-in
Diameter (End 2)
1/2-in
Diameter (End 3)
1/2-in - Material
- Copper
- Color / finish
- Copper
Product overview
The 1/2-inch C x 1/2-inch C x 1/2-inch C wrought copper pressure tee is for use in residential and commercial plumbing systems. The fitting provides a means of joining three same size copper pipes at 90° angles to provide a branch line from a main line and features sweat connections. Compatible with all types of copper tubing, this fitting can be used in both above and below ground applications. The copper construction provides long-lasting durability. Lead-free and NSF certified.
Works with three 1/2 in. male pipes (nominal size)
Can be used with all types of copper pipe
Sweat connections
1/2 in. inside diameter and 5/8 in. outside diameter
Lead-Free
Max working pressure of 582 PSI
Temperature range of -20° F to 250° F
Works with three 1/2 in. male pipes (nominal size)
Can be used with all types of copper pipe
Sweat connections
1/2 in. inside diameter and 5/8 in. outside diameter
Lead-Free
Max working pressure of 582 PSI
Temperature range of -20° F to 250° F
