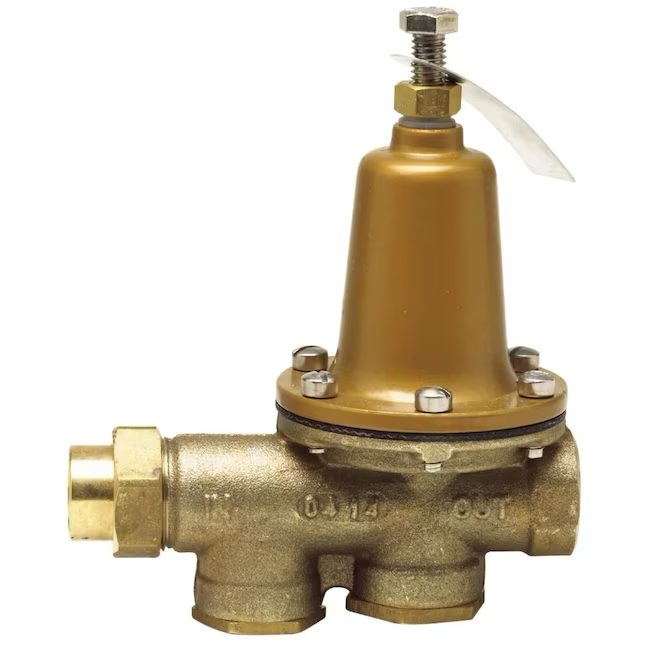

Watts LF25AUB Copper 3/4-in Fnpt Pressure Reducing Valve
- Brand
- Watts
- SKU / Item reference
- Item # 31223574 | Model # LF25AUB-Z3
- UPC / Barcode
- 098268462968
Supplied specifications
- Dimensions
- Inlet Diameter
3/4-in
Outlet Diameter
3/4-in
Inlet Size in Inches
3/4-in - Material
- Copper
- Color / finish
- Brass
Product overview
This 3/4 In. lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).
NPT threaded female union inlet by NPT female outlet
Sealed spring cage with stainless steel cage screws
Integral stainless steel strainer removable for cleaning
Replaceable seat module
NPT threaded female union inlet by NPT female outlet
Sealed spring cage with stainless steel cage screws
Integral stainless steel strainer removable for cleaning
Replaceable seat module
