Product at a glance
Full specifications
Model # SC2040M200C
- Dimensions
- Depth (Inches)
15.9
Width (Inches)
7.9
Height (Inches)
33.9 - Color / finish
- Gray
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview
-

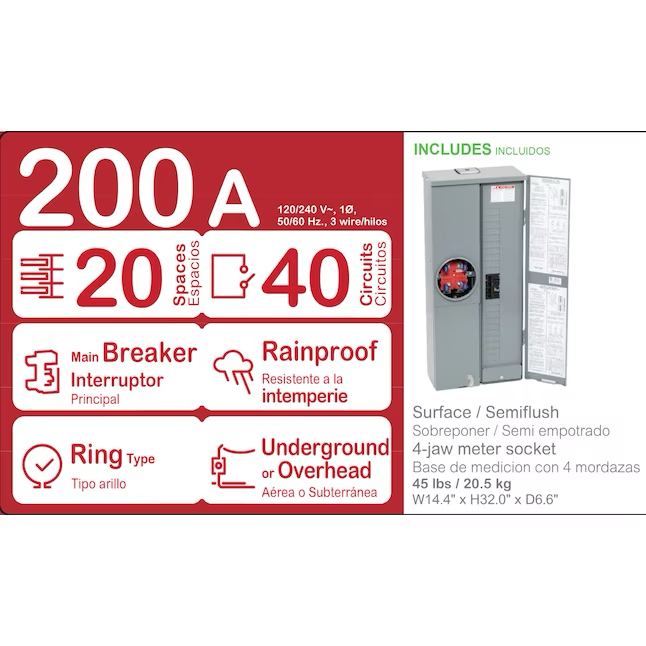

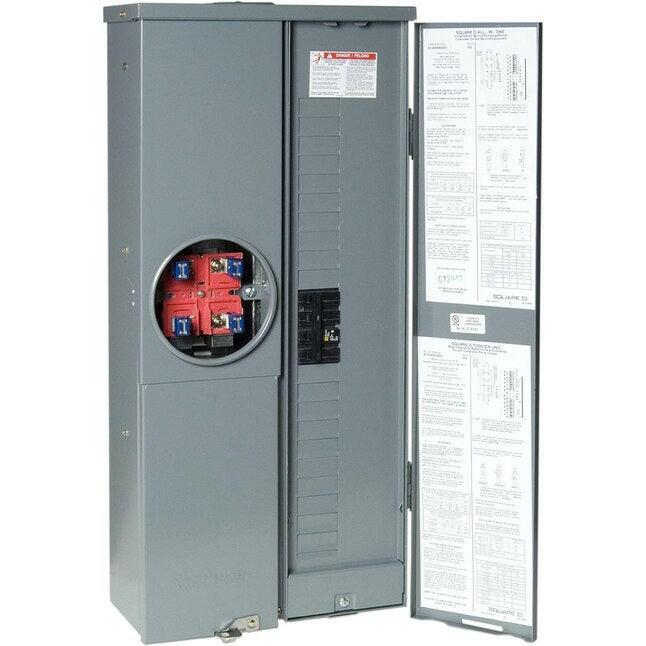

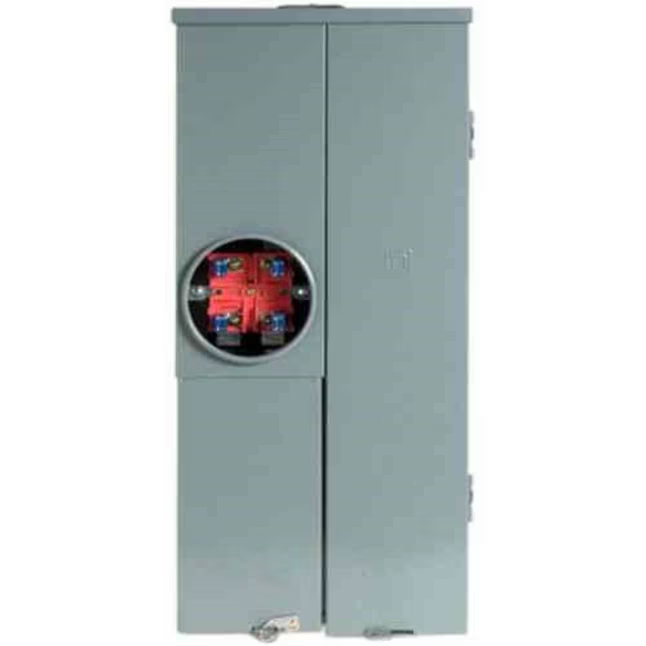

The Square D 200 Amp 20-Space 40-Circuit Combination Meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED) and is a ring type unit
-
It is suitable for overhead or underground service applications
-
Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation
-
This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers rated 120/240Vac
-
4 jaw meter socket
-
NEMA type 3R enclosure
-
Bypass Type-none
-
Designed with straight-In mains to save expensive cable and time
-
Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
Technical information
Specifications
- Brand / manufacturer
- Square D
- SKU
- Item # 81223338 | Model # SC2040M200C
- UPC / barcode
- 785901859093
- Product category
- Breaker Boxes
- Item weight
- 5.0 lb
- Dimensions
- Depth (Inches)
15.9
Width (Inches)
7.9
Height (Inches)
33.9 - Color / finish
- Gray
- Style
- Breaker Boxes
- Amperage
- 200-Amp
- Saber exclusive
- No
- Technical specifications
- Amperage
200
Orientation
Over/Under
Buss Bar Construction
Aluminum
Paintable
No
Circuits
40
Phase Type
Single phase (120/240)
Cover Included
Yes
Plug-On Neutral
No
Feed-Through Lugs
No
Usage
Service entrance
Ground Bar Installed
No
Use Location
Outdoor
Mounting Type
Combination
Value Pack
No
Number of Spaces
20
Product resources
Guides, documents & data sheets
Before you order
Product questions
What dimensions are listed for this option?
Depth (Inches)
15.9
Width (Inches)
7.9
Height (Inches)
33.9
15.9
Width (Inches)
7.9
Height (Inches)
33.9
Product dimensions do not establish installation clearances. Check the exact model’s installation instructions.
Shipping & pickup
Pickup
Pickup availability depends on the product and location. Check the options above or contact our team with your SKU.
Call (915) 598-8598 →Warranty, returns & product notices
- Manufacturer warranty
- 18-month limited
- Return eligibility
- 30-Day
- California Proposition 65
- No
