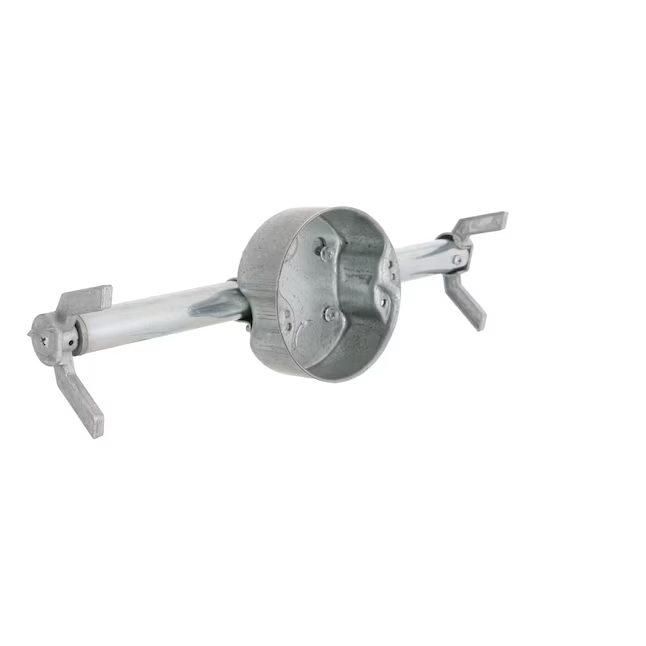

RACO 1-Gang Galvanized Steel Old Work Round Electrical Box

Brand: RACO
SKU / Item reference: Item # 12231504 | Model # 936XL
UPC / Barcode: 050169504598

Supplied specifications

Dimensions: Assembled Depth (Inches)
14
Knockout Size
1/2-in
Assembled Height (Inches)
2.813
Maximum Weight Supported (lbs.)
110
Assembled Width (Inches)
4.25
Material: Steel
Color / finish: Gray

Product overview

RACO old work round boxes are 4 In. in diameter, 1-1/2 In. deep, and are used for fan or fixture applications. The boxes have three 1/2 In. bottom knockouts and include an easy to install Retro-Brace. They are suitable for use in old-work applications.

Durable pre galvanized steel construction

Plastic Insider provided for use with non-metallic sheathed cable

Brace is adjustable for, 16 In to 24 In joist spacing

Knockouts on bottom of box allow for easy access and exit

Grounding hole on outer rim of box for easy installation of ground screw

151/2 Cu In capacity

Brace is designed for maximum support load of 75-lbs ceiling fans or 110 lbs light fixture on 16 in joist span

With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable plastic Insider provided for NMSC cable

Mounting hardware and instructions are included
