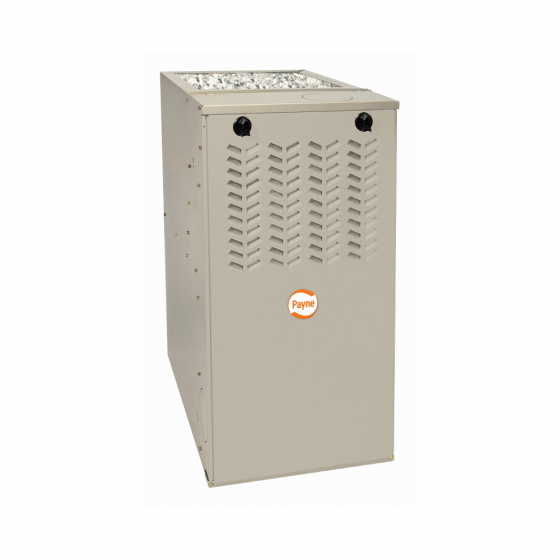

Payne Multipoise Furnace, 80% AFUE, 90,000 BTU, Low NOx, 115/1

The PG80ESL applications are easy with 4-way multipoise design, through-the-furnace downflow venting, 13 different venting options, and designed for easy service access. An inner blower door is provided for tighter sealing in sensitive applications. The PG80ESL furnaces are approved for use with natural or propane gas, and are designed for California installations and meet 40 ng/J NOx emissions. Can be installed in air quality management districts with a 40 ng/J NOx emissions requirement.

PERFORMANCE

• Single Stage gas valve.
• Fixed Speeds, Constant Torque (FCT) ECM blower motor.
• LED diagnostics and self test feature.
• Hot surface ignition.
• Draft safeguard switch to ensure proper furnace venting.
• Inner door for tighter sealing.

INSTALLATION FLEXIBILITY

• 4-way Multipoise furnace, 13 vent applications.
• Dual fuel compatible. (including 13.0 SEER Heat Pumps)
• All models are chimney friendly when used with accessory vent kit.

APPLICATIONS

• Compact design - only 33-1/3 in. (847 mm) tall.
• Propane convertible with gas conversion accessory.

CERTIFICATON

• Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193.
