Product at a glance
Full specifications
Model # GE1LU532SSP
- Dimensions
- Depth (Inches)
4
Width (Inches)
9
Height (Inches)
17 - Color / finish
- Gray
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

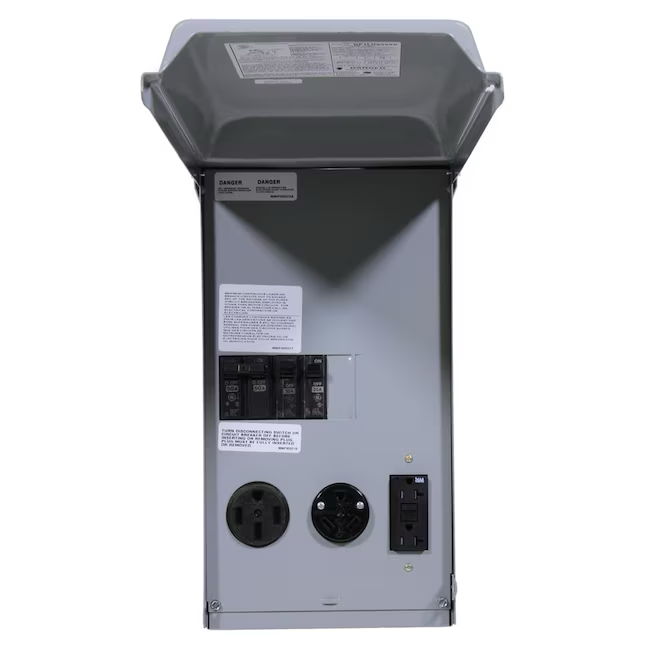

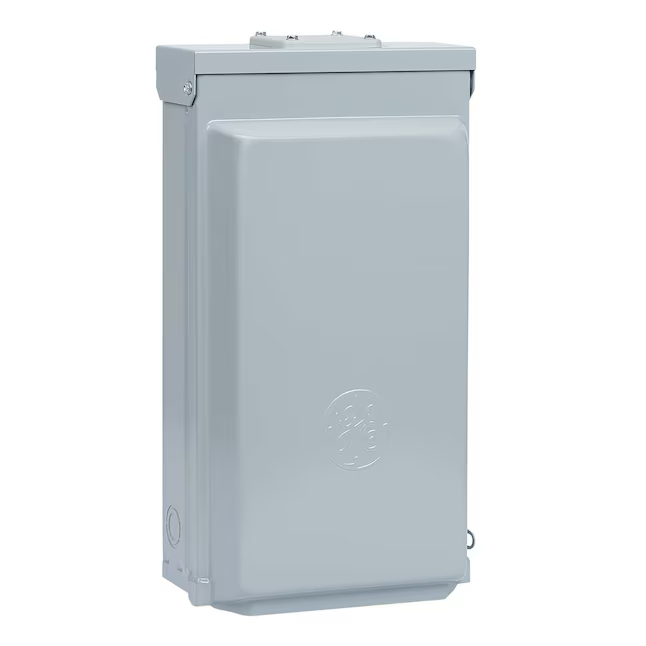

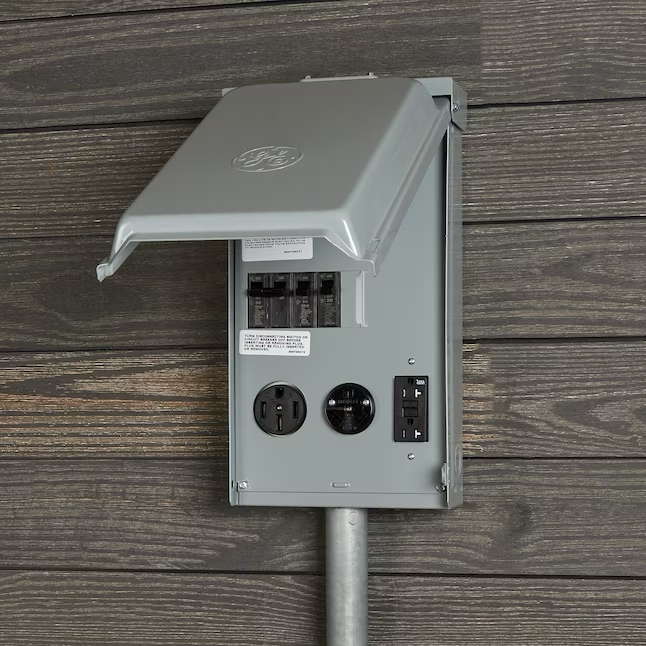

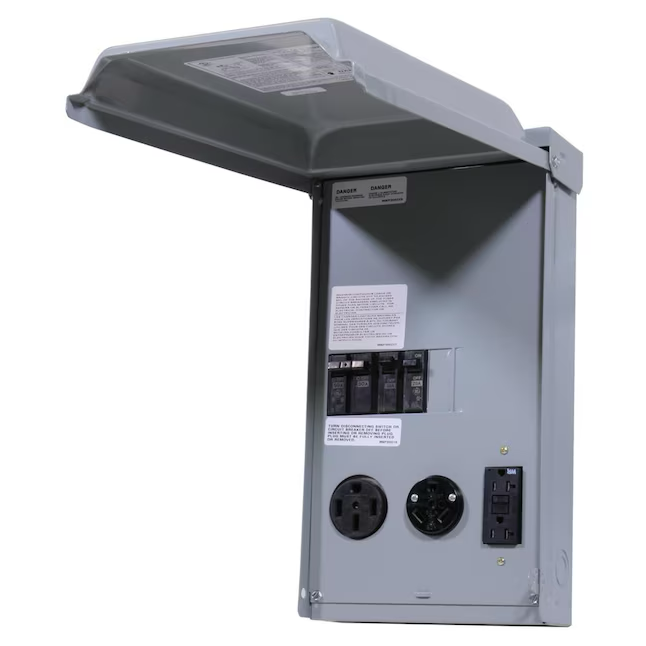

The unmetered surface mount is factory-assembled and factory-tested. It comes to the construction job site ready to use with no need to assemble individual parts, saving installation time. The single, heavy-gauge NEMA 3R rainproof enclosure protects against weather, vandalism and nuisance tripping. It is lockable and is engineered for maximum protection of receptacles, cords, plugs, breakers. The unit complies with National Electric Code and OSHA requirements.
-
100 Amp unmetered power pedestal for recreational vehicle park power
-
ANSI certified and UL Listed
-
Rugged 16-gauge zinc coated G-90 steel
-
All-in-1 construction for factory assured terminations
-
Padlock provision can prevent unauthorized entry and dead front construction prevents accidental contact with live parts, power outlet door has stay-open position for user convenience and rolled edge door for cord protection
-
Welded flange NEMA 3R construction for lasting service in outdoor installations and heavy galvanized zinc coated steel, with highest quality electro-deposition finish - resists corrosion and fading
-
All units with 12-2 Cu/Al equipment ground lug - all components are factory wired and assembled, reducing installation time
-
All terminals accept copper or aluminum wire for added installation flexibility and broad range of concentric knock-outs to accommodate wiring needs
Technical information
Specifications
- Brand / manufacturer
- GE
- SKU
- Item # 71223220 | Model # GE1LU532SSP
- UPC / barcode
- 783164611212
- Product category
- Breaker Boxes
- Item weight
- 5.0 lb
- Dimensions
- Depth (Inches)
4
Width (Inches)
9
Height (Inches)
17 - Color / finish
- Gray
- Style
- Breaker Box
- Product location
- Aisle: 23 | Bay: 8
- Saber exclusive
- No
- Technical specifications
- Amperage
100
Paintable
Yes
Buss Bar Construction
Copper
Phase Type
Single phase (120/240)
Circuits
3
Plug-On Neutral
No
Cover Included
Yes
Series Name
PowerMark Gold
Feed-Through Lugs
No
Type
Main lug
Ground Bar Installed
No
Usage
Service entrance
Manufacturer Color/Finish
Gray
Use Location
Outdoor
Mounting Type
Surface
Value Pack
No
Number of Spaces
3
Value Pack Contents
GE PowerMark Gold
Orientation
Over/Under
Product resources
Guides, documents & data sheets
Before you order
Product questions
What dimensions are listed for this option?
Depth (Inches)
4
Width (Inches)
9
Height (Inches)
17
4
Width (Inches)
9
Height (Inches)
17
Product dimensions do not establish installation clearances. Check the exact model’s installation instructions.
