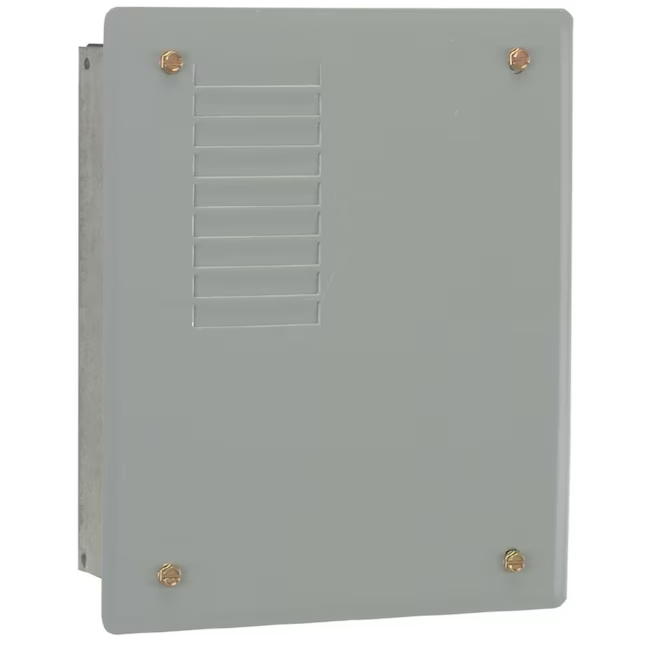

GE 125-Amp 4-Spaces 6-Circuit Indoor Main Lug Load Center
- Brand
- GE
- SKU / Item reference
- Item # 71223229 | Model # TL412CP
- UPC / Barcode
- 783164396782
Supplied specifications
- Dimensions
- Depth (Inches)
3
Width (Inches)
7.25
Height (Inches)
9 - Color / finish
- Gray
Product overview
This GE circuit breaker panel includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This circuit breaker panel is UL Listed and ANSI certified.
Indoor NEMA 1 enclosure
Main lugs are factory installed
Use with equipment ground kit TGL1 (order separately)
Galvanized steel box is maintenance free and resists rust
Copper buss for increased conduction
Galvanized box for rust resistance with a self-adjusting dead-front cover
Single-phase, 3-wire, 120/240 VAC and 22,000 AIC rating
Compatible with standard GFCI, AFCI and GE circuit breakers
100% rated split neutral on each side
Indoor NEMA 1 enclosure
Main lugs are factory installed
Use with equipment ground kit TGL1 (order separately)
Galvanized steel box is maintenance free and resists rust
Copper buss for increased conduction
Galvanized box for rust resistance with a self-adjusting dead-front cover
Single-phase, 3-wire, 120/240 VAC and 22,000 AIC rating
Compatible with standard GFCI, AFCI and GE circuit breakers
100% rated split neutral on each side
