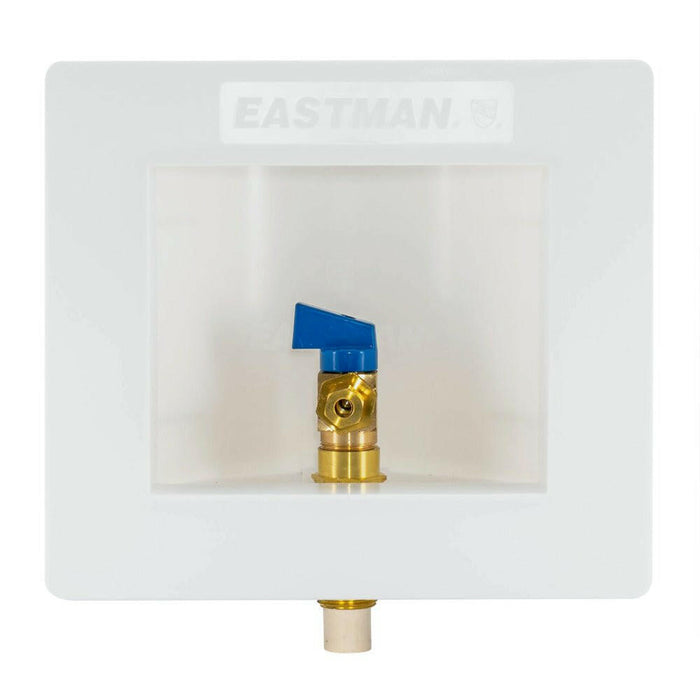

Eastman Ice Maker Outlet Box – 1/2 in. CPVC
- Brand
- Eastman
- SKU / Item reference
- Item # 91223949 | Model # 60234
Supplied specifications
- Dimensions
- Appliance Type
Ice maker
Number of Valves
1
Connection Type
CPVC
Series Name
N/A
Discharge Hose Placement
N/A (ice maker box)
Valve Type
Quarter turn ball valve
Maximum PSI
125
Water Hammer Arrestor Included
No - Color / finish
- White
Product overview
The Eastman® ice maker outlet box provides a safe water supply installation for refrigerators, water dispensers, and ice makers. It is built with a one-piece box and flange design. It comes with a pre-installed support bracket, a faceplate cover and a 1/4-turn ball valve for shut-off during maintenance. This ice maker outlet box has a 1/2-inch CPVC inlet connection and a 1/4-inch outer diameter compression outlet. It is designed for recessed residential applications. Intended for service at temperatures between 34° F (1° C) and 180° F (82° C), with an allowable working pressure of 125 psi. Complies with lead-free law. UPC approved.
Technical Specifications
Connection: 1/2 in. CPVC inlet x 1/4 in. OD Compression outlet
Working Temperature: 34° F to 180° F
Working Pressure: 125 psi
Rough Opening: 5-3/4 in. x 3-1/2 in. x 4-7/8 in.
Faceplate Dimensions: 8-1/4 in. x 7-5/16 in.
