Product details
Product overview
Heat Pump with Ecoblue™ Technology
3 to 25 Nominal Tons

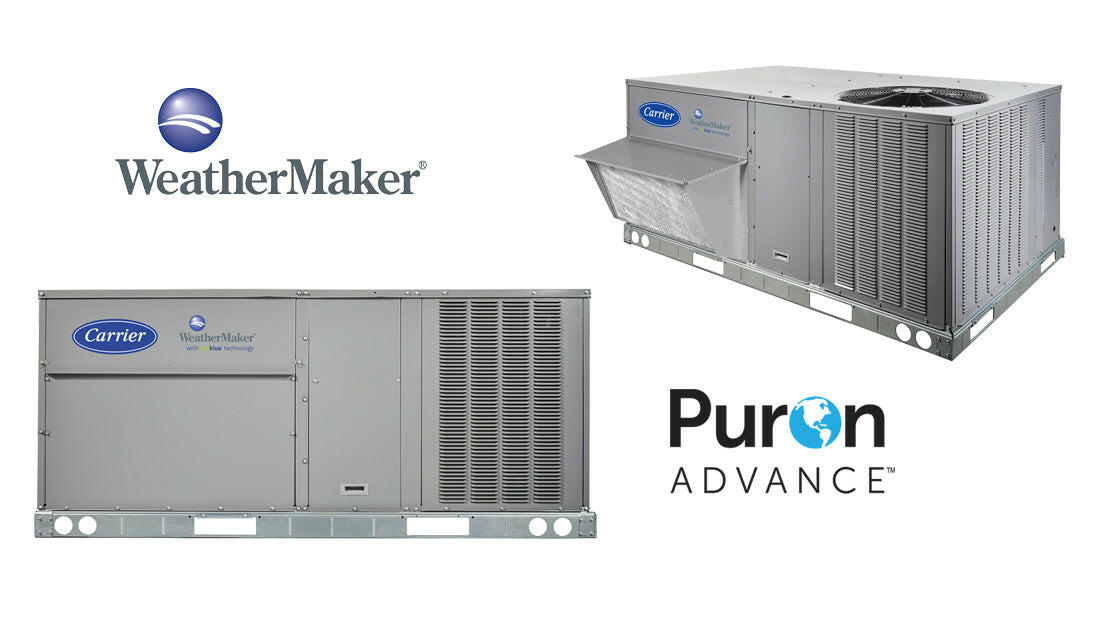

Carrier’s WeatherMaker® rooftops (RTU) with Puron Advance™ (R-454B) and EcoBlue™ Fan Technology, offer an ecofriendly solution for a brighter future. With a GWP of 466 and similar performance to R-410A, Puron Advance easily exceeds the EPA's new, stringent, <700 GWP refrigerant requirement. Our direct drive EcoBlue™ indoor fan system uses a Vane Axial fan and electronically commutated motor. The benefit is clear: when compared to legacy belt drive systems, this Vane Axial design has 75% fewer moving parts, uses up to 40% less energy, and has no belts, blower bearings, or shaft. Our WeatherMaker® 50FEQ 3 to 12.5 ton units are specifically designed to fit on Carrier roof curbs installed as far back as 1989. That makes replacements fast and easy, eliminating the need for curb adapters or different utility connections.
Features
Performance Features
Features
Performance Features

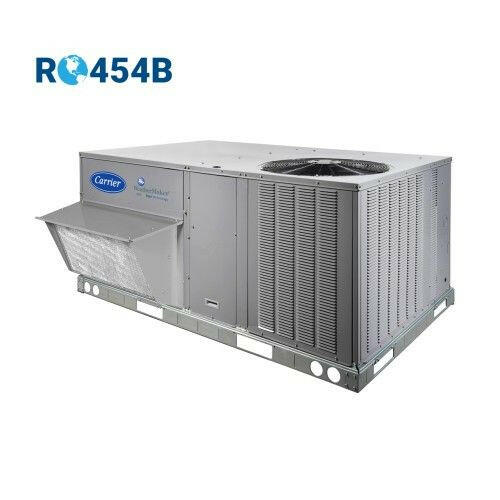

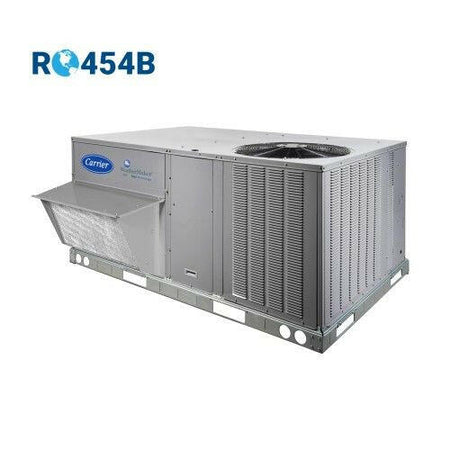

- Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements
- New unit control board with intuitive quick fan speed adjustment
- NEW – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard

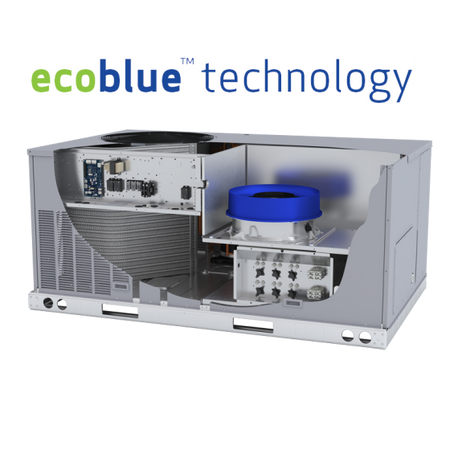

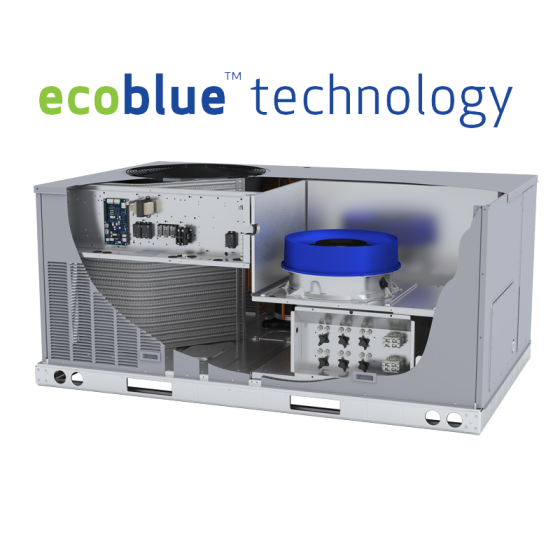

- Direct Drive EcoBlue™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Single-stage cooling capacity 04-06 models, two-stage on 07+ models
- SEER2s up to 13.4, HSPF2 up to 6.7
- IEER up to 15.0, COP up to 3.4
- Cooling operating range up to 115 °F (46°C) and down to 40°F (4°C)
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Units meet and exceed ASHRAE 90.1 energy efficiency levels.
Maintenance Features
- New unit control board facilitating simple safety circuit troubleshooting and simplified control box arrangement as well as easy intuitive fan speed adjustment
- Access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Tool-less filter access door
- Optional hinged access panels also available
- NEW Direct Drive – EcoBlue™ Technology Indoor fan system uses Vane Axial fan design and electronically commutated motor with beltless design
- Two-inch disposable return air filters
Installation Features
- Same footprint as prior Carrier models for that original fit; reduces installation costs and time
- Field convertible from vertical to horizontal airflow configuration
- Provisions for thru-the-bottom power entry capability as standard
- Single point electric, and controls connections
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
- A2L leak detection and dissipation system standard
- Scroll compressors with internal line-break overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Permanently lubricated direct-drive ECM evaporator-fan motor
- Totally enclosed condenser motors with permanently lubricated bearings
- Low pressure and high-pressure switch protection
Standard Limited Warranty
- 5 years electric heaters
- 5 years parts only compressor
- 3 year SystemVu™ controller
- One year parts only on all other parts
- Additional extended warranty packages available
California residents please see Proposition 65
Options
Factory-Installed Options
Factory-Installed Options
- Temperature Sensing Economizer with barometric relief
- Enthalpy Sensing Economizer with barometric relief
- Return Air Smoke Detector
- Supply Air Smoke Detector
- CO2 Sensor
- Condensate Overflow Protection
- Multiple Static Fan Capabilities
- Phase Monitor/Protection
- Thru-The-Base Utility Connections
- Louvered Hail Guards
- Non-Fused Disconnect Switch
- 4" MERV-13 Filters
- Hinged Access Panels
- Unpowered Convenience Outlet
- Powered Convenience Outlet
- Coated Coils:
- Pre-Coat
- E-Coat
- Copper/Copper
- Electrical Mechanical Controls
- SystemVu™ Integrated Communicating Controls
Technical information
Specifications
- Brand / manufacturer
- Carrier
- SKU
- Item # 412284 | Model # 50FEQ
- Product category
- Air Conditioner Condensers
- Item weight
- 202.0 lb
- Color / finish
- Gray
- Product location
- Aisle: Trailer | Bay: 1
- Saber exclusive
- No
