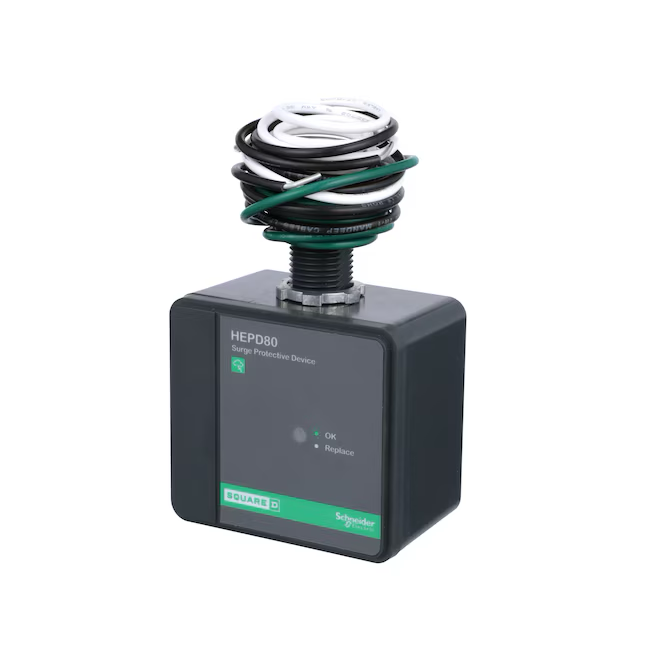

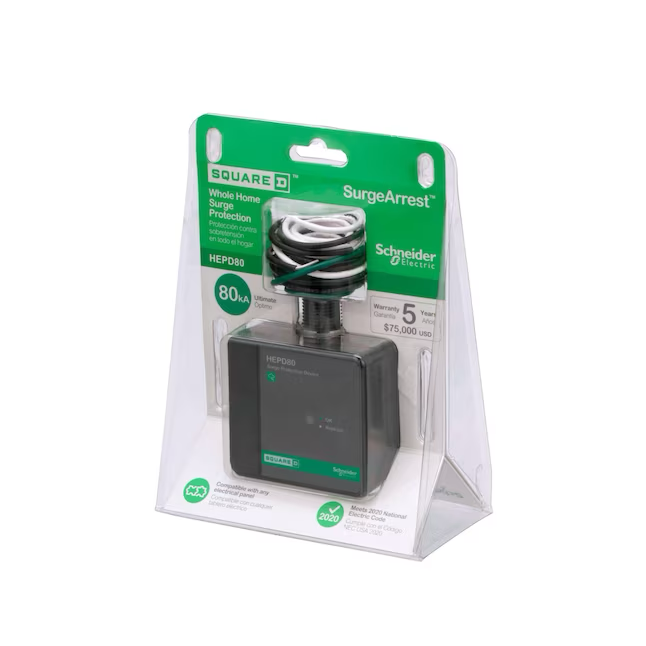

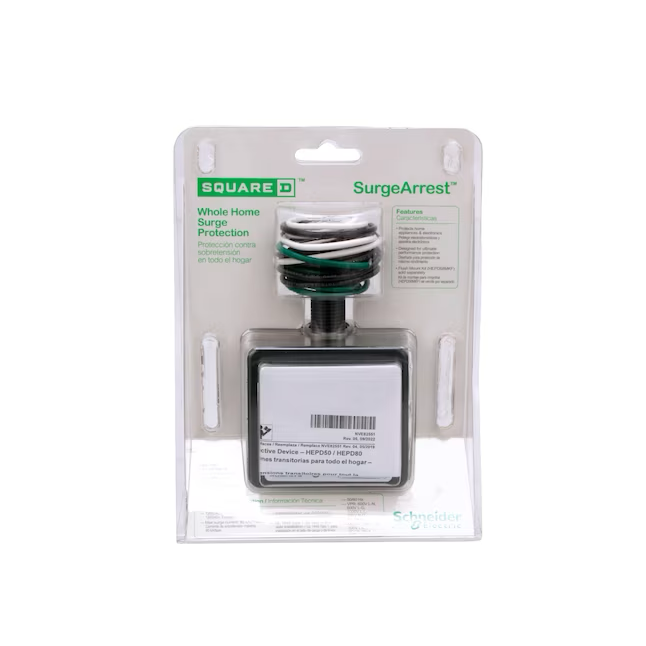

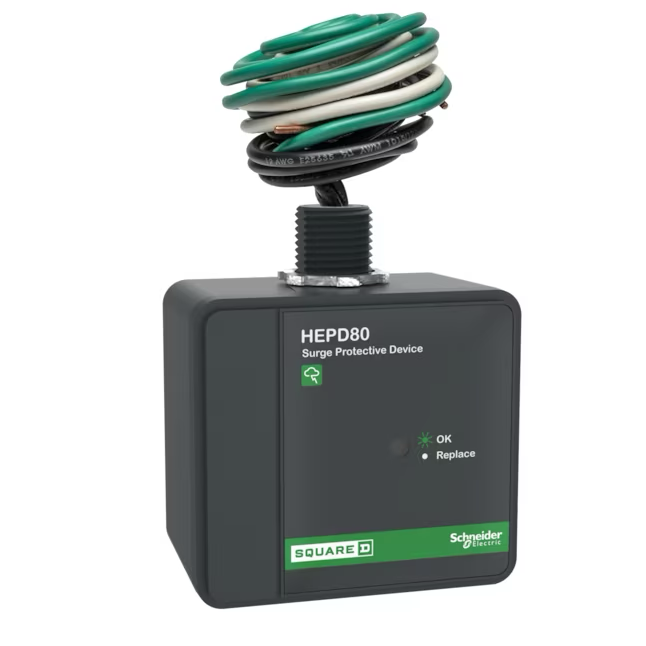

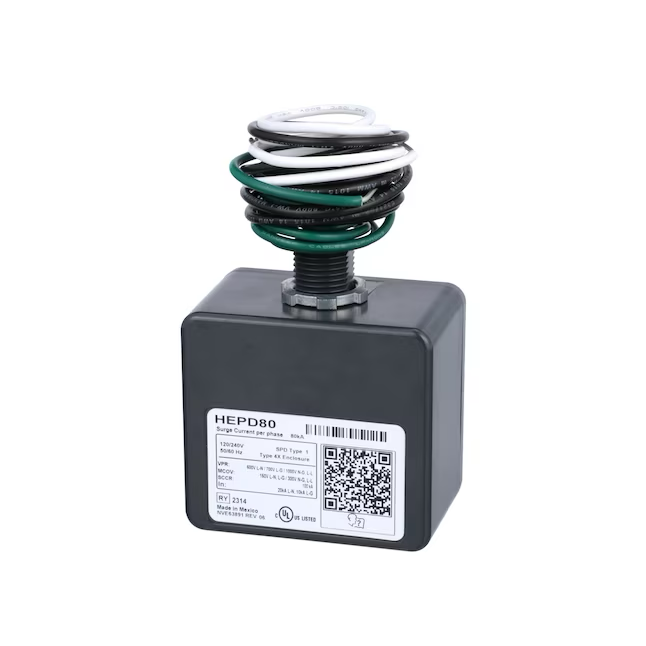

Read shipping policy →Square D 80-kA Indoor and Outdoor Surge Protective Device
Special Order
Regular price
$199.00
Select an available option combination to check delivery and pickup.
Ways to get this item
- Shipping
- Est. dispatch in 1–7 business days
- Local delivery
- Confirm timing for your address
- Pickup
- Est. ready in 1–5 business days
Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.
Product at a glance
Full specifications
Model # HEPD80
- Dimensions
- Depth (Inches)
2.1
Weight (lbs.)
1.1
Height (Inches)
3.72
Width (Inches)
2.95 - Color / finish
- Black
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Keep your supplies organized.
Create a branded bin label for this product.
Product details
Product overview
Square D brand Home Electronics Protective Devices (HEPDs) are compact and affordable surge suppressors designed and is compatible for any brand residential load centers. HEPDs work together with surge protection plug strips to provide surge suppression for sensitive electronics. HEPDs reduce surges that might otherwise overwhelm plug strips and damage connected household equipment. HEPDs also provide surge suppression for important items such as washers, dryers, refrigerators, stoves, and air conditioning that plug strips may not or cannot protect.
-
Learn about general NEC 2020 updates, contact your local building inspector for code adoption and details
-
Square D whole home surge protection device rated for 80kA
-
Easy to install - Mounts next to any residential load center
-
5 Year warranty - $75,000 downstream equipment protection
-
80,000 Amp/phase maximum surge current
-
Compatible with any brand breaker boxes
-
LED status indicators
-
Industry leading design and product testing
-
For installation in 120/240-Volt AC systems
Technical information
Specifications
- Brand / manufacturer
- Square D
- SKU
- Item # 81223361 | Model # HEPD80
- UPC / barcode
- 785901008729
- Product category
- Whole House Surge Protectors
- Item weight
- 1.0 lb
- Dimensions
- Depth (Inches)
2.1
Weight (lbs.)
1.1
Height (Inches)
3.72
Width (Inches)
2.95 - Color / finish
- Black
- Style
- Whole House Surge Protectors
- Saber exclusive
- No
- Technical specifications
- Amperage
80000
Response Time (Microseconds)
0.05
Application
Residential
Short Circuit Current Rating
80 kA
Coaxial Lines Protected
0
SPD Type
Type 1
Connection Type
Next to load center mount
Surge Current Protection Per Phase
80-kA
Enclosure Rating
NEMA 4X
Surge Protection
ANSI/EEE
Grounded
Yes
Use Location
Indoor and outdoor
Housing Material
Plastic
Voltage Protection Rating L-G
600-V
Indicator Light
Yes
Voltage Protection Rating L-L
1000-V
Line Protection
L-N-L-G-L-L-N-G
Voltage Protection Rating L-N
600-V
Maximum Amperage
80,000
Voltage Protection Rating N-G
900-V
Maximum Continuous Operating Voltage
150/300 Vpk
Water Resistant
Yes
Nominal Discharge Current
10kA
Wattage
0
Number of Leads
4
Weather Resistant
Yes
Package Quantity
1
Wire Gauge
14-AWG
Rating in Joules
3300
