Shipping
Estimates reflect the selected item and order timing. Dispatch is when your order leaves the supplier; arrival also depends on carrier transit and your destination.
Read shipping policy →
Special Order
Regular price
$155.00
Select an available option combination to check delivery and pickup.
Ways to get this item
- Shipping
- Est. dispatch in 1–7 business days
- Pickup
- Est. ready in 1–5 business days
Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.
Product at a glance
Full specifications
Model # HEPD50
- Dimensions
- Depth (Inches)
2.1
Weight (lbs.)
1.1
Height (Inches)
3.72
Width (Inches)
2.95 - Color / finish
- Black
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

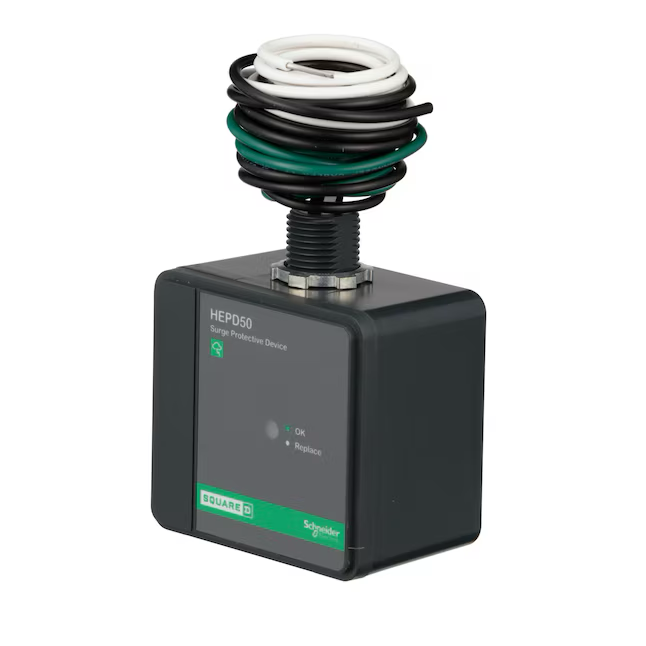

Protect your electronics from damage with this Square D Brand Home Electronics Protective Device (HEPD). This affordable and compact surge suppressor is compatible with all brands of residential load centers. It works together with surge protection plug strips to suppress power surges for sensitive electronics. This HEPD reduces surges that could overwhelm plug strips and cause damage to connected household equipment. It also provides surge suppression for important items such as refrigerators, washers, dryers, stoves and air conditioning that regular plug strips cannot or may not protect.
-
Learn about general NEC 2020 updates, contact your local building inspector for code adoption and details
-

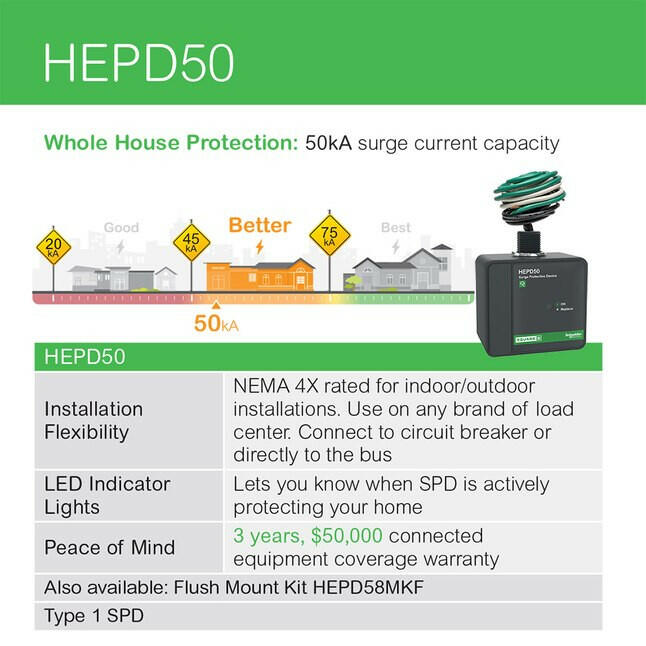

Square D whole home surge protection device rated for 50kA
-

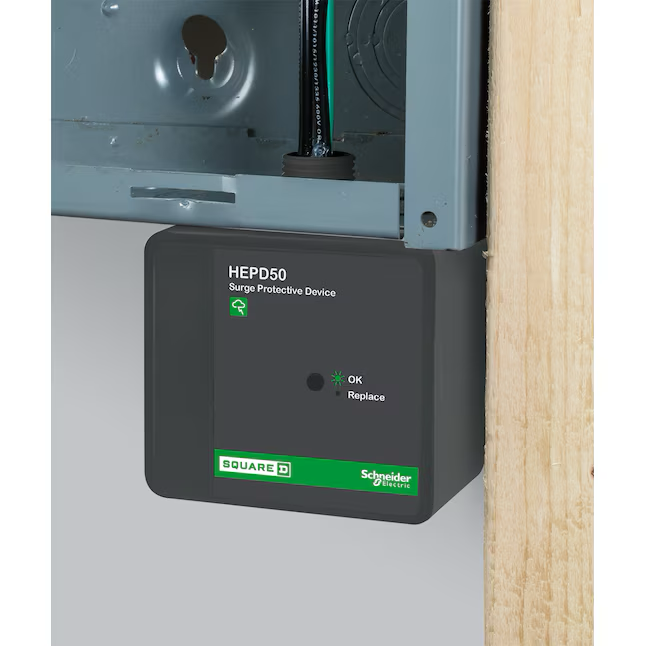

Easy to install - Mounts next to any residential load center
-
3-year warranty - $50,000 downstream equipment protection
-
50,000 Amp/phase Maximum surge current
-
Compatible with any brand breaker boxes
-

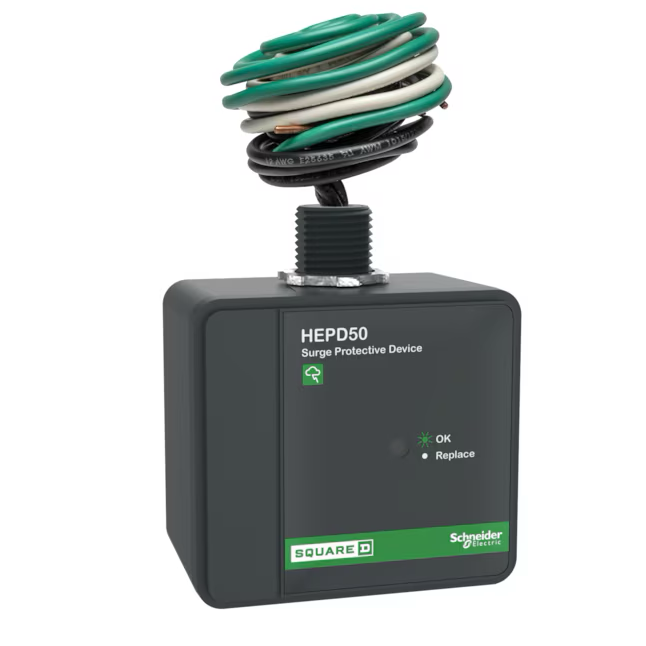

LED status indicators
-
For installation in 120/240-Volt AC systems
-

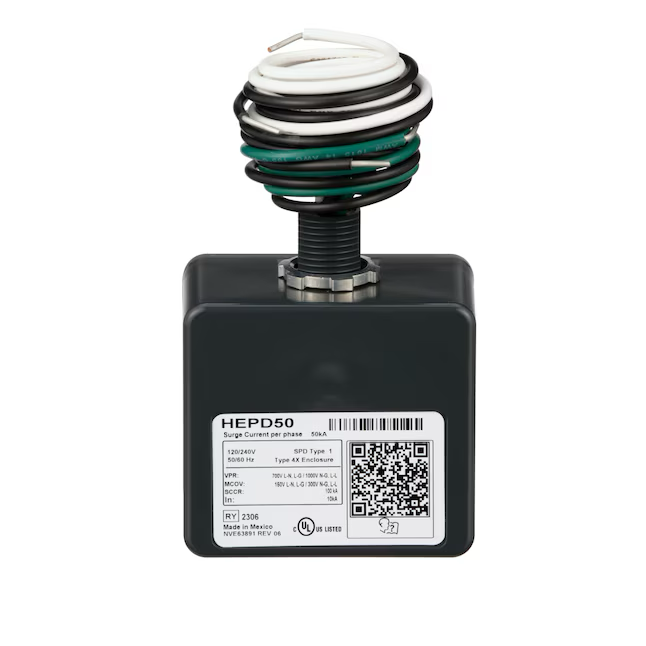

ANSI certified and UL 1449 4th edition listed
Technical information
Specifications
- Brand / manufacturer
- Square D
- SKU
- Item # 81223362 | Model # HEPD50
- UPC / barcode
- 785901006626
- Product category
- Whole House Surge Protectors
- Item weight
- 1.0 lb
- Dimensions
- Depth (Inches)
2.1
Weight (lbs.)
1.1
Height (Inches)
3.72
Width (Inches)
2.95 - Color / finish
- Black
- Style
- Whole House Surge Protectors
- Saber exclusive
- No
- Technical specifications
- Amperage
50000
Response Time (Microseconds)
0.05
Application
Residential
Short Circuit Current Rating
50 kA
Coaxial Lines Protected
0
SPD Type
Type 1
Connection Type
Next to load center mount
Surge Current Protection Per Phase
50-kA
Enclosure Rating
NEMA 4X
Surge Protection
ANSI/EEE
Grounded
Yes
Use Location
Indoor and outdoor
Housing Material
Plastic
Voltage Protection Rating L-G
600-V
Indicator Light
Yes
Voltage Protection Rating L-L
1000-V
Line Protection
L-N-L-G-L-L-N-G
Voltage Protection Rating L-N
600-V
Maximum Amperage
50,000
Voltage Protection Rating N-G
900-V
Maximum Continuous Operating Voltage
150/300 Vpk
Water Resistant
Yes
Nominal Discharge Current
10kA
Wattage
0
Number of Leads
4
Weather Resistant
Yes
Package Quantity
1
Wire Gauge
12-AWG
Rating in Joules
2350
Product resources
Guides, documents & data sheets
Before you order
Product questions
What dimensions are listed for this option?
Depth (Inches)
2.1
Weight (lbs.)
1.1
Height (Inches)
3.72
Width (Inches)
2.95
2.1
Weight (lbs.)
1.1
Height (Inches)
3.72
Width (Inches)
2.95
Product dimensions do not establish installation clearances. Check the exact model’s installation instructions.
Shipping & pickup
Pickup
Pickup availability depends on the product and location. Check the options above or contact our team with your SKU.
Call (915) 598-8598 →Warranty, returns & product notices
- Manufacturer warranty
- 3-year limited
- Return eligibility
- 10-Day
- California Proposition 65
- No
