Product details
Product overview

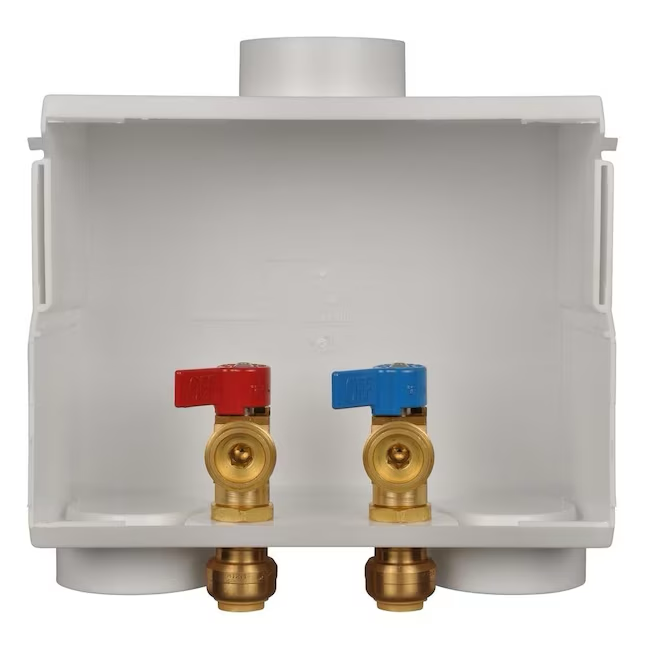

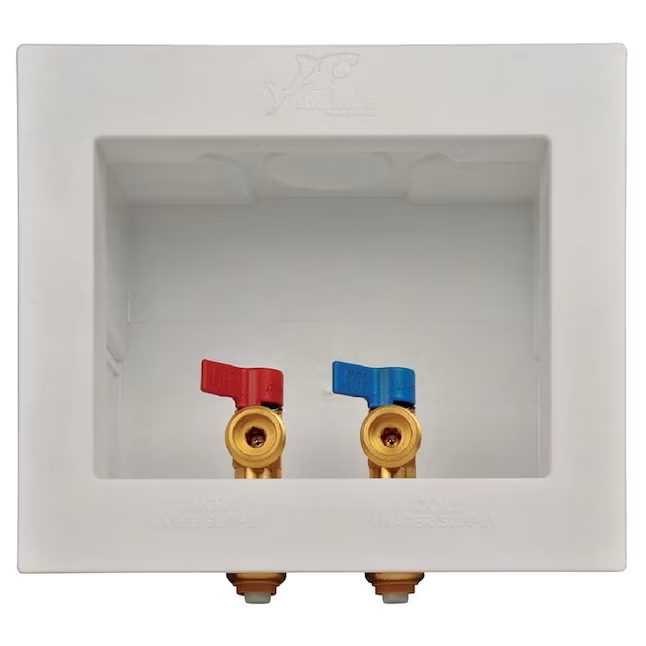

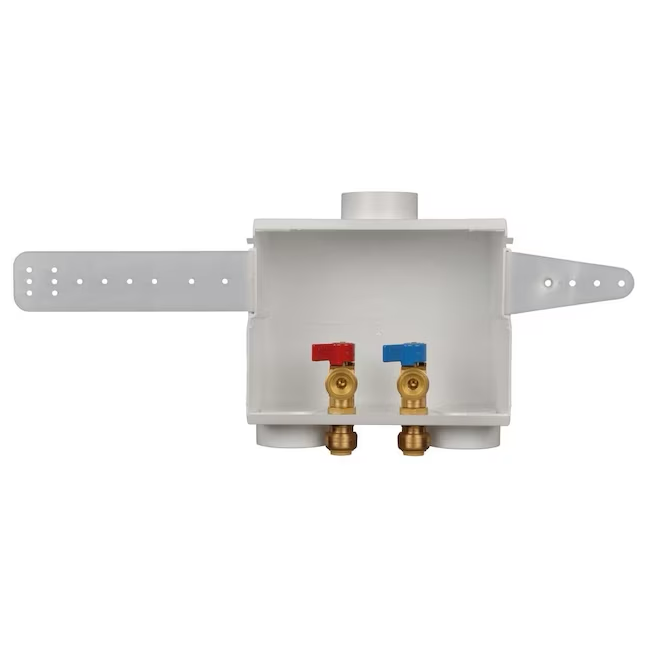

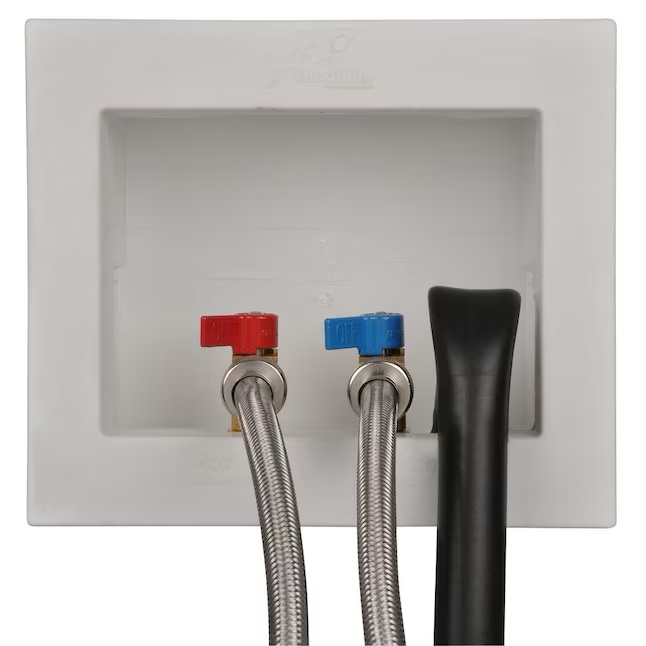

The SharkBite washing machine outlet box features an instant push-to-connect connection and can be used with copper, CPVC or PEX lines. Each fitting increases ease of use while decreasing the time and effort needed to connect water distribution pipe. There is no glue, soldering or crimping needed. Simply cut your pipe, deburr, mark the pipe approximately 1-in (for proper insertion depth), install pipe to proper depth and you're done. The kit includes the washing machine outlet box, hot and cold 1/2-in SharkBite push-to-connect x 3/4-in MHT valves, faceplate cover, 2 support brackets. Perfect for use in your laundry room to provide a clean installation and allow for easy shut-off to protect your home when away and washing machine is not in use to guard against accidental leaks.
-
DZR brass construction for durability and reliability
-
Compatible with any combination of PEX, copper, CPVC or PE-RT
-
3/4-in machine hose thread outlets with quarter turn brass ball valves
-
Innovative push-to-connect design makes for quick and easy installation
-
Accommodates left, right and center drain installations
-
Forward mounted valves give easy access for on/off operation
-
EZ out test caps are raised for easy removal and knock-outs are oversized so they won't fall down the drain
-

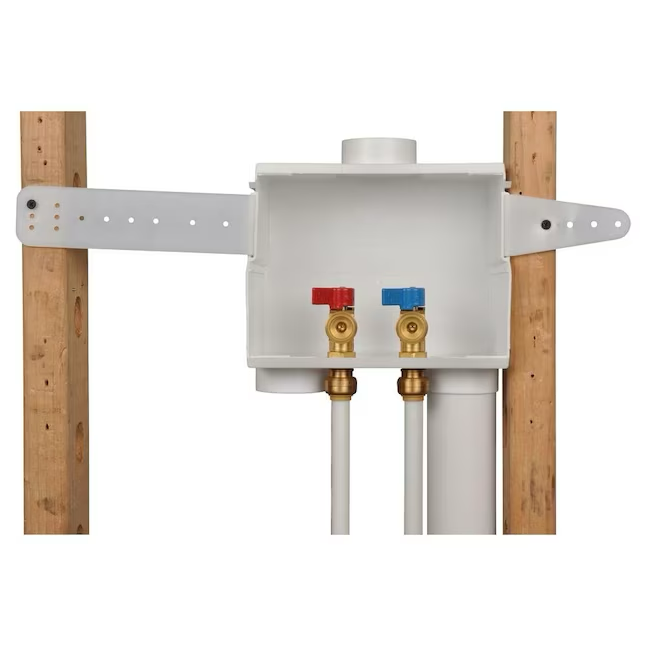

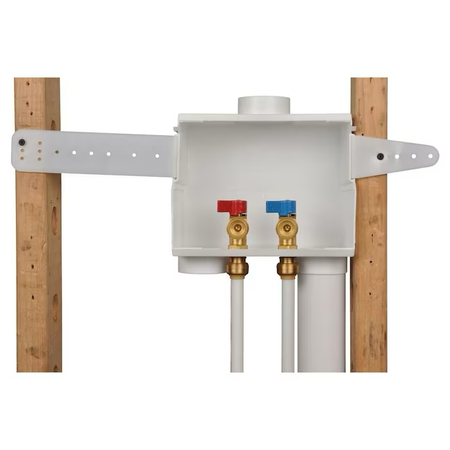

Back of box rests against the back Sheetrock for sturdy recessed box installation
-
Meets UPC, IPC and cUPC requirements
Technical information
Specifications
- Brand / manufacturer
- SharkBite
- SKU
- Item # 12230630 | Model # 24763
- UPC / barcode
- 697285247635
- Product category
- Outlet Boxes
- Item weight
- 1.0 lb
- Style
- Washing machine
- Product location
- Aisle: 2 | Bay: 1
- Technical specifications
- Appliance Type
Washing machine
Number of Valves
2
Connection Type
Push-to-connect
Valve Type
Quarter turn ball valve
Discharge Hose Placement
Universal
Water Hammer Arrestor Included
No
Maximum PSI
200.0
Product resources
Guides, documents & data sheets
Shipping & pickup
Pickup
Pickup availability depends on the product and location. Check the options above or contact our team with your SKU.
Call (915) 598-8598 →Warranty, returns & product notices
- Manufacturer warranty
- 2-year limited
- Return eligibility
- 30-Day
- California Proposition 65
- Yes
