Product reference sheet

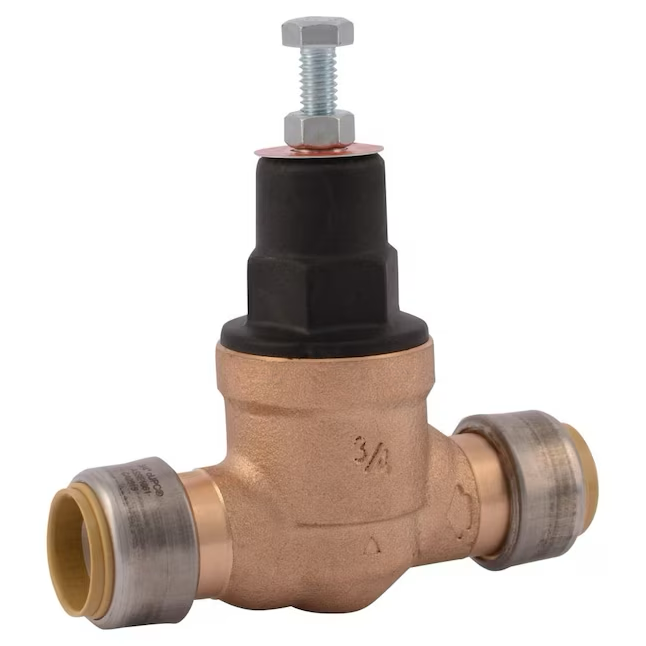

The 3/4-in SharkBite pressure-regulating valve is designed to reduce incoming water pressure to a safe pressure to protect plumbing components. They also help to prevent pressure surges from entering the household from the main line. High pressure can cause damage to appliances and plumbing. A pressure regulator should be installed after the main line to help protect plumbing. The SharkBite pressure regulator is a half-cartridge based pressure reducing and regulating valve with a lead-free bronze body. The valve resembles traditional regulators with a spring chamber and an adjusting screw but offers the high performance of a cartridge based valve. The valve is compatible with copper, PEX, CPVC or PE-RT pipes. Just insert the pipe and the fittings stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily removed and reused.



Solid lead-free bronze construction


Compatible with any combination of 3/4-in copper, PEX, CPVC, or PE-RT pipes


Factory set to regulate flow to a safe 45 PSI, adjustable from 10 to 70 PSI


Integrated internal by-pass mechanism


Cartridge based design allows for quick and easy service


Designed for use where inlet pressure does not exceed 400 PSI


Suited for hot (up to 180 degree) or cold water service
