Product reference sheet

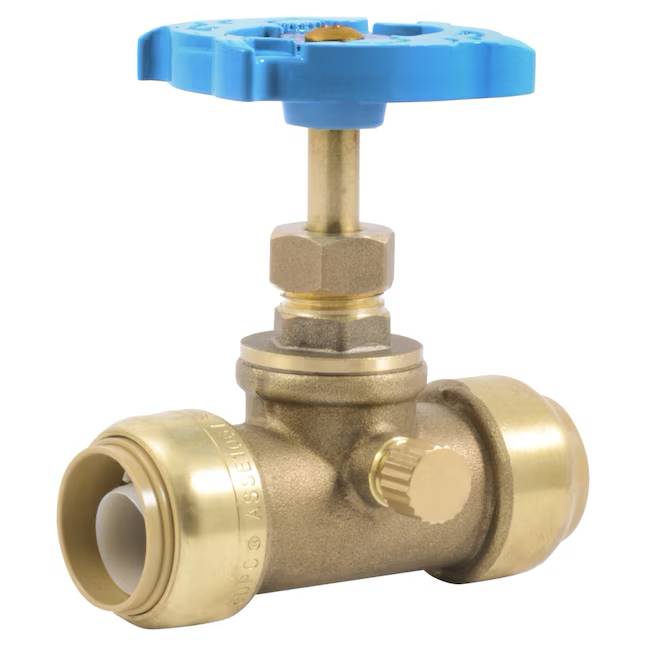

The 3/4 in. SharkBite Push-to-Connect Stop Valve with Drain is the easiest way to install a new or replacement valve. The valve is perfect for potable water and hydronic applications where a shut-off is needed. The Stop Valve is desighed with an integrated drain vent, allowing for easy cold weather maintenance. Using SharkBite fittings is the easiest way to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications.


Push-to-connect design makes for quick and easy install, requires no solder, glue, unions, or tools
Connects to copper, PEX, CPVC or PE-RT pipe
Lead free DZR brass construction for durability and reliability
Fitting can be rotated on pipe after installation making it easier to work in tight spaces
Designed for potable water distribution
Corrosion resistant to improve longevity
Listed by IAPMO and design certified and listed to ASSE 1061/NSF 63
Meets all UPC, IPC, and cUPC requirements
Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
Rated to 200°F and 200 psi
3/4 in. Pipe Insertion Depth = 1-1/8 in.



Dimensions




Inlet Diameter (In.)
1/2
Inlet Size
3/4 In.


Outlet Diameter (In.)
1/2
Product Depth (in.)
1.65 in


Product Height (in.)
3.2 in
Product Length (in.)
3.2 in


Product Width (in.)
1.65 in
Valve Inlet Diameter (in.)
3/4








Details




Application
Potable Water
Color/Finish
Brass


Color/Finish Family
Stainless Steel
Compatible Pipe Material
Multi-Purpose


Compatible Product
Other
Connection
PTC


Features
Lead Free
Indoor/Outdoor
Indoor


Inlet Fitting End Type
Push to Connect
Material
Brass


Maximum Pressure (PSI)
200
Maximum Working Temperature (F)
200


Outlet Fitting End Type
Push to Connect
Pack Size
1


Product Weight (lb.)
0.56 lb
Returnable
Non-Returnable


Stop Valve Type
Straight
Valve Configuration
Straight


Valve Connection
Push Connect
Valve Type
Supply Stop
