Product at a glance
Full specifications
Model # 24634LFZ
- Dimensions
- Inlet Diameter
1/2-in
Outlet Diameter
1/2-in
Inlet Size in Inches
1/2-in - Material
- Brass
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Your supply, ready to find again
Scan & Reorder
This label opened your exact product option. Choose a quantity above, then use the product’s Add to cart button.
Keep your supplies organized.
Create a branded label with a QR code to scan and reorder this exact option.
Product details
Product overview

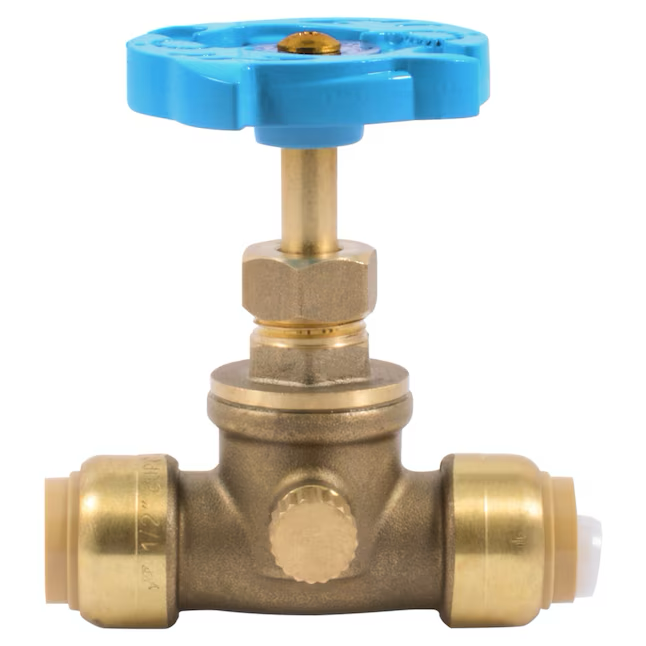

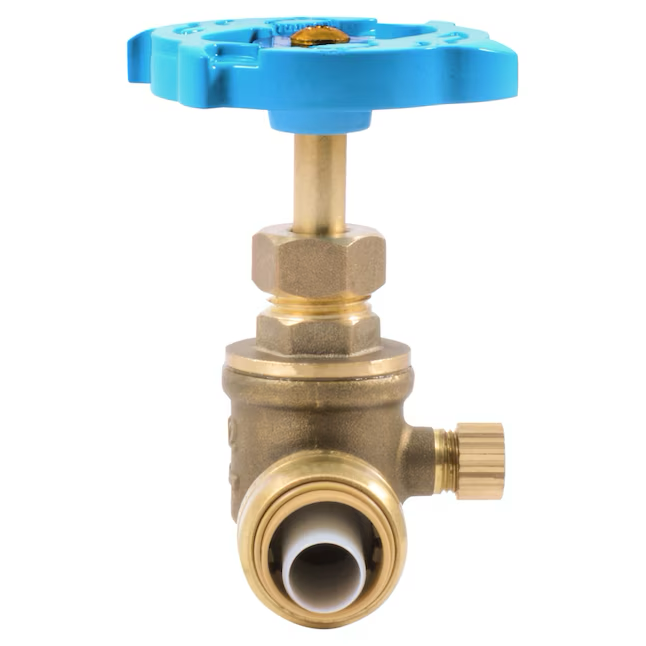

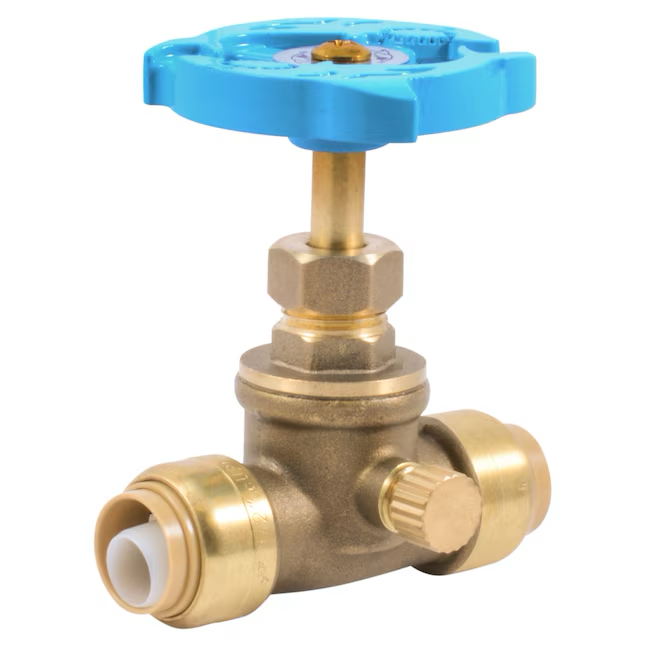

The 1/2 in. SharkBite Push-to-Connect Stop Valve with Drain is the easiest way to install a new or replacement valve. The valve is perfect for potable water and hydronic applications where a shut-off is needed. The Stop Valve is designed with an integrated drain vent, allowing for easy cold weather maintenance. Using SharkBite fittings is the easiest way to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications.
- Push-to-connect design makes for quick and easy install, requires no solder, glue, unions, or tools
- Connects to copper, PEX, CPVC or PE-RT pipe
- Lead free DZR brass construction for durability and reliability
- Fitting can be rotated on pipe after installation making it easier to work in tight spaces
- Designed for potable water distribution
- Corrosion resistant to improve longevity
- Listed by IAPMO and design certified and listed to ASSE 1061/NSF 64
- Meets all UPC, IPC, and cUPC requirements
- Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
- Rated to 200-degrees F and 200 psi
- 1/2 in. pipe insertion depth = 15/16 in.
Dimensions
| Inlet Diameter (In.) | 1/2 | Inlet Size | 1/2 In. |
|---|---|---|---|
| Outlet Diameter (In.) | 3/8 | Product Depth (in.) | 1.62 in |
| Product Height (in.) | 3.2 in | Product Length (in.) | 2.9 in |
| Product Width (in.) | 1.62 in | Valve Inlet Diameter (in.) | 1/2 |
Details
| Application | Potable Water | Color/Finish | Brass |
|---|---|---|---|
| Color/Finish Family | Stainless Steel | Compatible Pipe Material | Multi-Purpose |
| Compatible Product | Other | Connection | PTC |
| Features | Lead Free | Indoor/Outdoor | Indoor |
| Inlet Fitting End Type | Push to Connect | Material | Brass |
| Maximum Pressure (PSI) | 200 | Maximum Working Temperature (F) | 200 |
| Outlet Fitting End Type | Push to Connect | Pack Size | 1 |
| Product Weight (lb.) | 0.47 lb | Returnable | Non-Returnable |
| Stop Valve Type | Straight | Valve Configuration | Straight |
| Valve Connection | Push Connect | Valve Type | Supply Stop |
Technical information
Specifications
- Brand / manufacturer
- SharkBite
- SKU
- Item # 12230582 | Model # 24634LFZ
- UPC / barcode
- 697285032071
- Product category
- Shut-Off Valves
- Item weight
- 1.0 lb
- Dimensions
- Inlet Diameter
1/2-in
Outlet Diameter
1/2-in
Inlet Size in Inches
1/2-in - Material
- Brass
- Product location
- Aisle: 2 | Bay: 1
- Saber exclusive
- No
Product resources
Guides, documents & data sheets
Before you order
Product questions
What dimensions are listed for this option?
Inlet Diameter
1/2-in
Outlet Diameter
1/2-in
Inlet Size in Inches
1/2-in
1/2-in
Outlet Diameter
1/2-in
Inlet Size in Inches
1/2-in
Product dimensions do not establish installation clearances. Check the exact model’s installation instructions.
