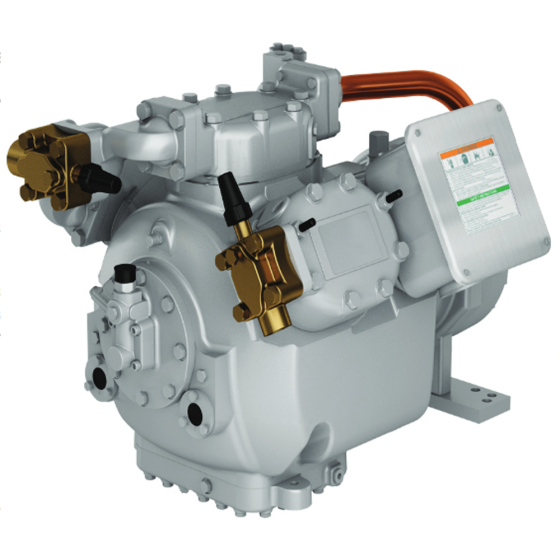

Semi-Hermetic Reciprocating Compound Cooling Compressor (Two Stage), 99CFM, 208/230/400/460Vac, Three Phase

FEATURES & BENEFITS

• Compressor Package: Remanufactured Service Compressor
• Voltage: 208/230/400/460Vac
• Three Phase
• Hertz: 60
• Overcurrent Protection: Not Factory Installed (Note: External Overcurrent Protection Required)
• Maximum Displacement (CFM): 99
• Six Cylinders (Three Heads)
• Design Variables: Ships without Valves and Terminal Box
• Carlyle has approved the following UL listed HFC refrigerants for use in 06C compressors: R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-450A, R-452A and R-507
Carlyle has historically approved the following UL listed CFC refrigerants for use in 06C compressors: R-22, R-500, and R-502
• Oil Charge: 19 Pints (9 Liters) (Note: This compressor is shipped without oil.)

The oil level for this 06C size (50 to 99cfm) compressor should be at 1/8 to 3/8 of the sight glass. (Once the compressor system has been running for at least 24 hours, the most accurate oil levels are observed when the compressor is off. Oil levels in the sight glass can be affected by the rotation of the running gear.)

The viscosity of oils used in Carlyle reciprocating compressors is ISO 68 (centistoke) for all POE oils and 150 Saybolt Seconds Universal (150 SSU or 150 SUS) or ISO 32 for mineral and alkylbenzene oils. Using oil with a different viscosity without approval from the Carlyle Engineering Department will void the warranty. (No oil additive is allowed without written approval from the Carlyle Engineering Department. The use of any unauthorized additive will void the warranty.)

The following POLYOL-ESTER (POE) oils are approved for HFCs (Note: All HFC/POE applications require a crankcase heater.):
POE68 (Do NOT use in low temperature applications.)
Totaline®: P903-1025 (1qt), P903-1001 (1gal), P903-1005 (5gal)
Castrol: SW68

POE68e
Totaline®: P903-1725 (1qt), P903-1701 (1gal), P903-1705 (5gal)
Castrol: E68

The following MINERAL oils are approved for CFCs:
Totaline®: P903-0101 (1gal), P903-0105 (5gal), P903-0155 (55gal)

The following ALKYLBENZINE oils are approved for CFCs:
Totaline®: P903-2025 (1qt), P903-2001 (1gal), P903-2005 (5gal)
